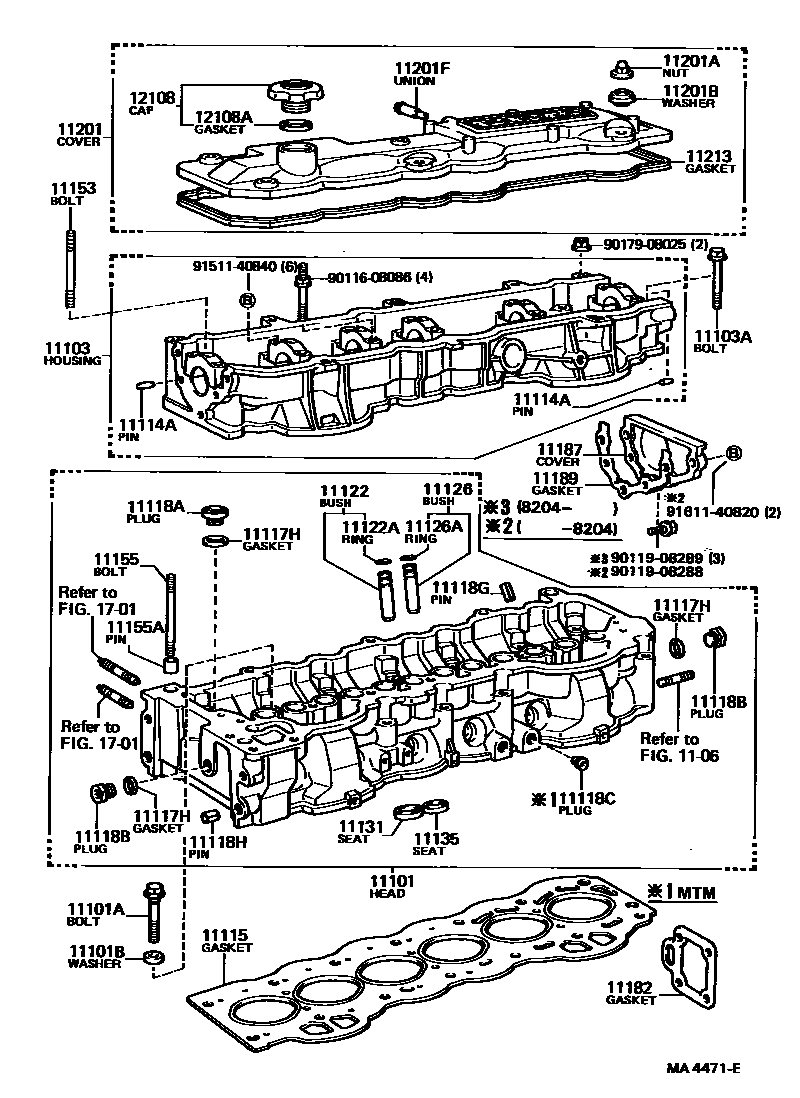

CYLINDER HEAD
1106
11101HEAD SUB-ASSY, CYLINDER
sub11101-41080
sub11101-41070
sub11101-43031
sub11101-70010
sub11101-88301
sub11101-88302
11101ABOLT(FOR CYLINDER HEAD SET)
*10-1.25PX97.5-22
*12-1.25PX96-22
*12-1.25PX166.5-21
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
11103ABOLT(FOR CAMSHAFT HOUSING SET)
*8-1.25PX67-30
11114HOUSING, CAMSHAFT, NO.2
11114APIN, STRAIGHT
11117HGASKET(FOR WATER HOLE)
PNC 11118B
PNC 11118A
11118BPLUG, STRAIGHT, NO.2
sub90341-12013
11118CPLUG, STRAIGHT, NO.3
OVER DRIVE SENSOR
OVER DRIVE SENSOR
11118GPIN, SLOTTED SPRING, NO.1
11118HPIN, SLOTTED SPRING, NO.2
11122ARING, SHAFT SNAP (FOR VALVE GUIDE BUSH)
11126ARING, SHAFT SNAP(FOR VALVE GUIDE BUSH)
11153BOLT, STUD(FOR CAMSHAFT HOUSING TO CYLINDER HEAD COVER)
L=75,S=9&9
11155BOLT, STUD(FOR HEAD TO CAMSHAFT HOUSING)
L=114,S=20&12
11155APIN, RING W/HEAD
11187COVER, CAMSHAFT HOUSING, REAR
11189GASKET, CAMSHAFT HOUSING REAR COVER
11201ANUT, CAP(FOR CYLINDER HEAD COVER)
11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)
CTR,RR
RR
FR
CTR
FR
11201FUNION(FOR POSITIVE CRANKCASE VENTILATION)
NO.1
NO.2
12108AGASKET(FOR OIL FILLER CAP)
1701
9011608086
main90116-08086
9011908288
main90119-08288
9011908289
main90119-08289
9017908025
main90179-08025
9151140840
main91511-40840
9161140820
main91611-40820
43 parts on this diagram · 7 diagrams in section
