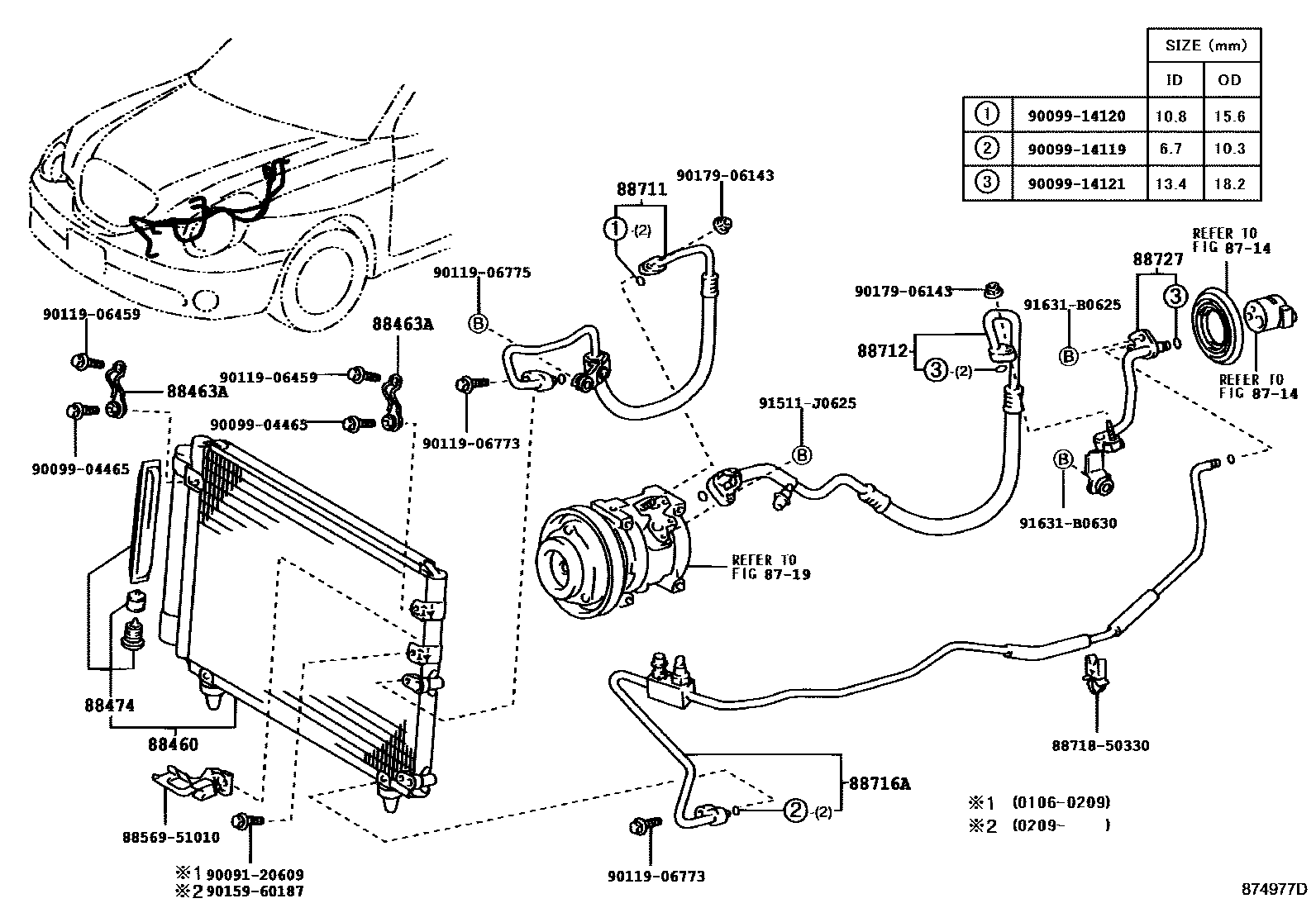

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1

8714

8719

88460CONDENSER ASSY, COOLER

main88460-22590iGX11#,JZX110200106-200209

main88460-22610iGX11#,JZX110200209-200404

88463ABRACKET, COOLER CONDENSER, NO.2

main88463-22030iGX11#,JZX110200106-200404

88474DRYER, COOLER

main88474-17010iGX11#,JZX110200209-200404

main88474-47010iGX11#,JZX110200106-200209

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88703-22120iJZX110..VR25200106-200209

main88703-22130iJZX110..5FC200106-200209

main88703-22150iGX110200106-200209

main88703-22160iGX115200106-200209

main88703-22180iJZX110..5FC200209-200404

main88703-22190iGX110200209-200404

main88703-22210iJZX110..VR25200209-200404

main88703-22220iGX115200209-200404

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-2A290iGX115200106-200404

main88712-3A870iJZX110..5FC200106-200404

main88712-3A880iJZX110..VR25200106-200404

main88712-3A890iGX110200106-200404

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88706-22010iJZX110..VR25200106-200404

main88706-22020iJZX110..5FC200106-200404

main88706-22030iGX11#200106-200404

88727TUBE, SUCTION, NO.2

main88707-51010iGX11#,JZX110200106-200404

sub88727-51020

sub88467-14070

sub88569-51040

sub90099-32140

8856951010CLAMP (FOR COOLER RELAY)

main88569-51010

8871850330PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-50330

9009120609

main90091-20609

9009904465

main90099-04465

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9011906459

main90119-06459

9011906773

main90119-06773

9011906775

main90119-06775

9015960187

main90159-60187

9017906143

main90179-06143

91511J0625

main91511-J0625

91631B0625

main91631-B0625

91631B0630

main91631-B0630

24 parts on this diagram · 3 diagrams in section
