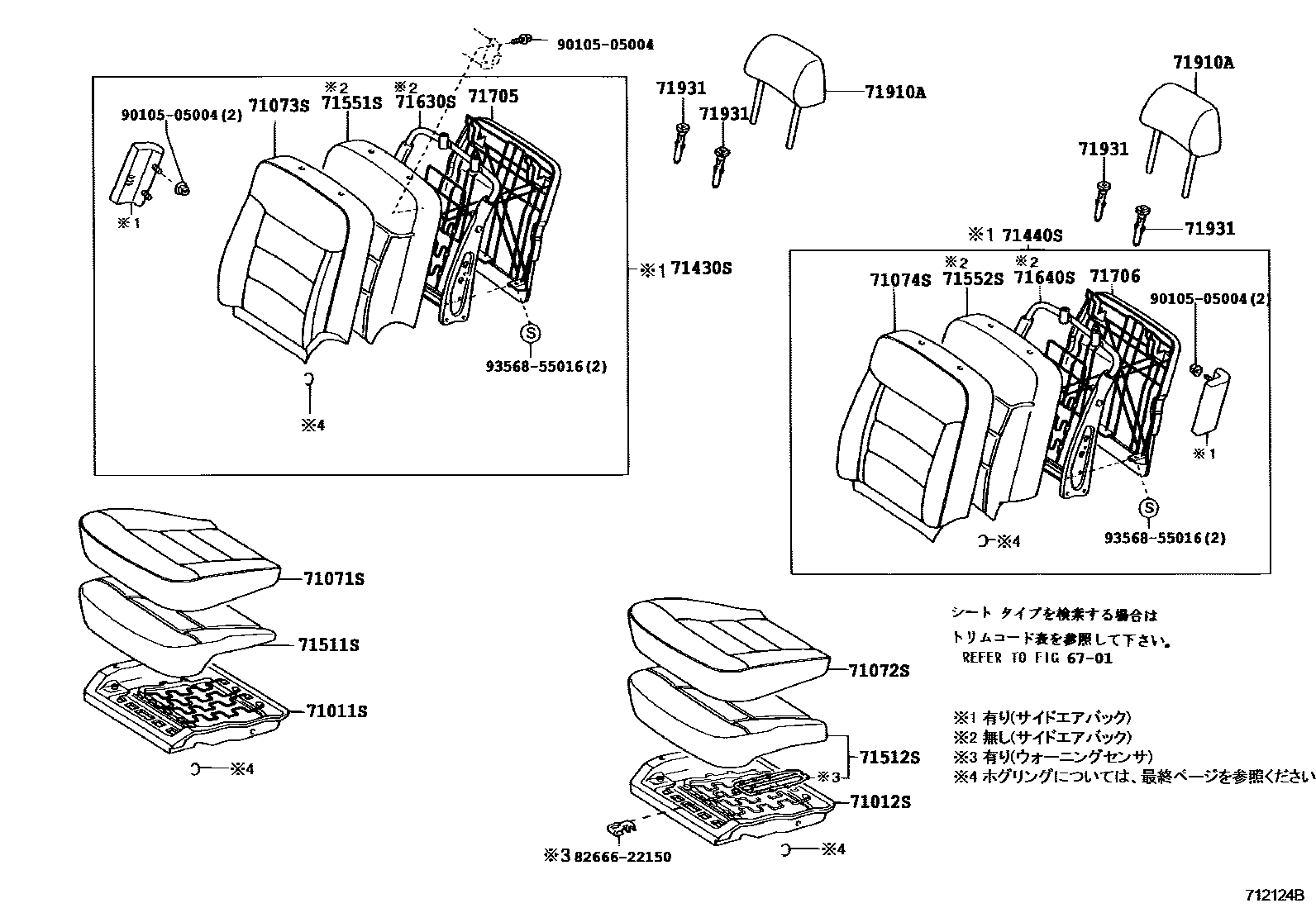

FRONT SEAT & SEAT TRACK

0001 1 0002 1������-� 0003 1���-�-� 0004 1�������

6701

71011SFRAME SUB-ASSY, FRONT SEAT CUSHION, RH

main71610-22470iGX115,JZX110..20,V25,VR25200106-200403

main71610-22470iGX110200204-200403

main71610-22480iGX11#,JZX110..20,25200106-200403

71012SFRAME SUB-ASSY, FRONT SEAT CUSHION, LH

main71620-22220iGX11#,JZX110200106-200403

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-2C230-B0iGX11#,JZX110..20,25200301-200403

main71071-2C300-C0iGX115,JZX110..20,V25,VR25200106-200403

main71071-2C330-B0iGX115,JZX110..20,V25,VR25200106-200403

sub71071-2C331

main71071-2C330-B0iGX110200204-200212

sub71071-2C331

main71071-2C330-C0iGX110200204-200212

sub71071-2C331

main71071-2C330-C0iGX115,JZX110..20,V25,VR25200106-200403

sub71071-2C331

main71071-2C340-B0iGX11#,JZX110..20,25200106-200403

sub71071-2C341

main71071-2C340-C0iGX11#,JZX110..20,25200106-200403

sub71071-2C341

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-2A530-B0iGX11#,JZX110..20,25200301-200403

main71072-2A600-C0iGX115,JZX110..20,V25,VR25200106-200403

main71072-2A620-B0iGX11#,JZX110200106-200403

main71072-2A620-C0iGX11#,JZX110200106-200403

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-2C470-B0iGX11#,JZX110..20,25200301-200403

main71073-2C480-B0iGX11#,JZX110..20,25200301-200403

main71073-2C650-C0iGX115,JZX110..20,V25,VR25200106-200403

main71073-2C660-C0iGX115,JZX110..20,V25,VR25200106-200403

main71073-2C690-B0iGX11#,JZX110200106-200403

main71073-2C690-C0iGX11#,JZX110200106-200403

main71073-2C700-B0iGX11#,JZX110200106-200403

main71073-2C700-C0iGX11#,JZX110200106-200403

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-22A00-B0iGX11#,JZX110..20,25200301-200403

main71074-22A10-B0iGX11#,JZX110..20,25200301-200403

main71074-2A820-C0iGX115,JZX110..20,V25,VR25200106-200403

main71074-2A830-C0iGX115,JZX110..20,V25,VR25200106-200403

main71074-2A860-B0iGX11#,JZX110200106-200403

main71074-2A860-C0iGX11#,JZX110200106-200403

main71074-2A870-B0iGX11#,JZX110200106-200403

main71074-2A870-C0iGX11#,JZX110200106-200403

71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71430-22A10-B0iGX11#,JZX110..20,25200301-200403

main71430-2C870-C0iGX115,JZX110..20,V25,VR25200106-200403

main71430-2V080-B0iGX115,JZX110..20,V25,VR25200106-200403

sub71430-2V081

main71430-2V080-B0iGX110200204-200212

sub71430-2V081

main71430-2V080-C0iGX110200106-200403

sub71430-2V081

main71430-2V080-C0iGX110200204-200212

sub71430-2V081

main71430-2V090-B0iGX11#,JZX110..20,25200106-200403

sub71430-2V091

main71430-2V090-C0iGX11#,JZX110..20,25200106-200403

sub71430-2V091

71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

main71440-22A10-B0iGX11#,JZX110..20,25200301-200403

main71440-2C610-C0iGX115,JZX110..20,V25,VR25200106-200403

main71440-2C650-B0iGX11#,JZX110200106-200403

sub71440-2C651

main71440-2C650-C0iGX11#,JZX110200106-200403

sub71440-2C651

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71511-22610iGX11#,JZX110200106-200403

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71052-22060iGX11#,JZX110200106-200403

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71551-22630iGX11#,JZX110200106-200403

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71552-22180iGX11#,JZX110200106-200403

71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71630-22740iGX11#,JZX110200106-200403

71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71630-22740iGX11#,JZX110200106-200403

71705BOARD SUB-ASSY, FRONT SEATBACK, RH

main71705-22610-C0iGX115,JZX110..20,V25,VR25200106-200403

main71705-22650-B0iGX11#,JZX110200106-200403

main71705-22650-C0iGX11#,JZX110200106-200403

71706BOARD SUB-ASSY, FRONT SEATBACK, LH

main71705-22610-C0iGX115,JZX110..20,V25,VR25200106-200403

main71705-22650-B0iGX11#,JZX110200106-200403

main71705-22650-C0iGX11#,JZX110200106-200403

71910AHEADREST ASSY, FRONT SEAT

main71910-22A00-B0iGX11#,JZX110..20,25200301-200403

main71910-2A240-B0iGX11#,JZX110200106-200403

main71910-2A240-C0iGX11#,JZX110200106-200403

main71910-2A250-C0iGX115,JZX110..20,V25,VR25200106-200403

71931SUPPORT, FRONT SEAT HEADREST

main71930-47010-B3iGX11#,JZX110200106-200403

sub71930-47010

sub71930-44020

main71930-47010-C0iGX11#,JZX110200106-200403

sub71930-47010

sub71930-44020

main71931-47010-B3iGX11#,JZX110200106-200403

sub71931-47010

sub71931-42020

main71931-47010-C0iGX11#,JZX110200106-200403

sub71931-47010

sub71931-42020

8266622150HOLDER, CONNECTOR

main82666-22150

9010505004

main90105-05004

9356855016

main93568-55016

22 parts on this diagram · 4 diagrams in section
