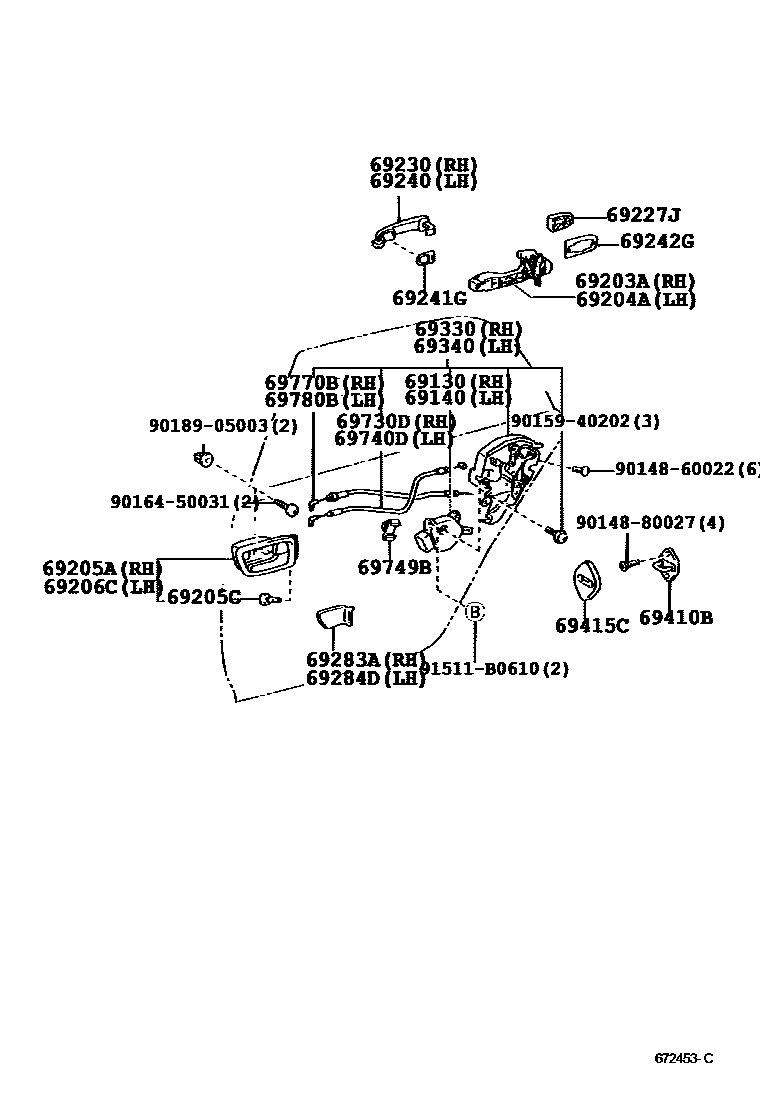

REAR DOOR LOCK & HANDLE

69130ACTUATOR ASSY, REAR DOOR LOCK, RH

main69130-51010iGX11#,JZX110200106-200404

69140ACTUATOR ASSY, REAR DOOR LOCK, LH

main69140-51010iGX11#,JZX110200106-200404

69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH

main69203-22030iGX11#,JZX110200106-200210

sub69203-22050

main69203-22050iGX11#,JZX110200210-200404

69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH

main69204-22030iGX11#,JZX110200106-200210

sub69204-22050

main69204-22050iGX11#,JZX110200210-200404

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69205-33040-C0iGX11#,JZX110200106-200404

BLACK,TRIM1#,2#

69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)

main90541-04014iGX11#,JZX110200106-200404

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69206-33040-C0iGX11#,JZX110200106-200404

BLACK,TRIM1#,2#

69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH

main69227-42070-A5iGX11#,JZX110200106-200404

WHITE PEARL CS.,062

sub69227-42070

main69227-42070-A7iGX11#,JZX110..20,25200106-200404

WHITE PEARL CS.,065

sub69227-42070

main69227-42070-B3iGX11#,JZX110200106-200404

SILVER ME.,1C0

sub69227-42070

main69227-42070-B7iJZX110..V25,VR25200201-200206

sub69227-42070

main69227-42070-C0iGX11#,JZX110200106-200404

BLACK,202

sub69227-42070

main69227-42070-D3iGX11#,JZX110200106-200404

BLACK CHERRY MC.,3P9

sub69227-42070

main69227-42070-D7iGX11#,JZX110200106-200404

LT.ROSE M.M.,3Q1

sub69227-42070

main69227-42070-J3iGX11#,JZX110200106-200301

DK.BLUE MC.,8N8

sub69227-42070

main69227-42070-J4iGX11#,JZX110200106-200301

LT. BLUE M.M.,8P7

sub69227-42070

main69227-42070-J9iJZX110..V25,VR25200201-200206

sub69227-42070

main69227-42070-X0iGX110200204-200212

sub69227-42070

main69227-42070-X0iGX11#,JZX110200106-200404

SUPER RED 5,3P0

sub69227-42070

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69211-12220-A3iGX11#,JZX110200106-200404

WHITE PEARL CS.,062

sub69211-12220

sub69211-52090

main69211-12220-A5iGX11#,JZX110..20,25200106-200404

WHITE PEARL CS.,065

sub69211-12220

sub69211-52090

main69211-12220-B0iJZX110..V25,VR25200201-200206

sub69211-12220

sub69211-52090

main69211-12220-B2iGX11#,JZX110200106-200404

SILVER ME.,1C0

sub69211-12220

sub69211-52090

main69211-12220-C0iJZX110..V25,VR25200201-200206

sub69211-12220

sub69211-52090

main69211-12220-C1iGX11#,JZX110200106-200404

BLACK,202

sub69211-12220

sub69211-52090

main69211-12220-D4iGX11#,JZX110200106-200404

LT.ROSE M.M.,3Q1

sub69211-12220

sub69211-52090

main69211-12220-D7iGX11#,JZX110200106-200404

BLACK CHERRY MC.,3P9

sub69211-12220

sub69211-52090

main69211-12220-J7iGX11#,JZX110200106-200301

DK.BLUE MC.,8N8

sub69211-12220

sub69211-52090

main69211-12220-J8iGX11#,JZX110200106-200301

LT. BLUE M.M.,8P7

sub69211-12220

sub69211-52090

main69211-12220-X0iGX110200204-200212

sub69211-12220

sub69211-52090

main69211-12220-X0iGX11#,JZX110200106-200404

SUPER RED 5,3P0

sub69211-12220

sub69211-52090

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69211-12220-A3iGX11#,JZX110200106-200404

WHITE PEARL CS.,062

sub69211-12220

sub69211-52090

main69211-12220-A5iGX11#,JZX110..20,25200106-200404

WHITE PEARL CS.,065

sub69211-12220

sub69211-52090

main69211-12220-B0iJZX110..V25,VR25200201-200206

sub69211-12220

sub69211-52090

main69211-12220-B2iGX11#,JZX110200106-200404

SILVER ME.,1C0

sub69211-12220

sub69211-52090

main69211-12220-C0iJZX110..V25,VR25200201-200206

sub69211-12220

sub69211-52090

main69211-12220-C1iGX11#,JZX110200106-200404

BLACK,202

sub69211-12220

sub69211-52090

main69211-12220-D4iGX11#,JZX110200106-200404

LT.ROSE M.M.,3Q1

sub69211-12220

sub69211-52090

main69211-12220-D7iGX11#,JZX110200106-200404

BLACK CHERRY MC.,3P9

sub69211-12220

sub69211-52090

main69211-12220-J7iGX11#,JZX110200106-200301

DK.BLUE MC.,8N8

sub69211-12220

sub69211-52090

main69211-12220-J8iGX11#,JZX110200106-200301

LT. BLUE M.M.,8P7

sub69211-12220

sub69211-52090

main69211-12220-X0iGX11#,JZX110200106-200404

SUPER RED 5,3P0

sub69211-12220

sub69211-52090

main69211-12220-X0iGX110200204-200212

sub69211-12220

sub69211-52090

69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT

main69241-42020iGX11#,JZX110200106-200404

69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR

main69242-42010iGX11#,JZX110200106-200404

69283APLUG, REAR DOOR INSIDE HANDLE BEZEL, RH

main69283-33020-C0iGX11#,JZX110200106-200404

BLACK,TRIM1#,2#

sub69283-33020

69284DPLUG, REAR DOOR INSIDE HANDLE BEZEL, LH

main69284-33020-C0iGX11#,JZX110200106-200404

BLACK,TRIM1#,2#

sub69284-33020

69330LOCK ASSY, REAR DOOR, RH

main69050-22450iGX11#,JZX110200106-200404

69340LOCK ASSY, REAR DOOR, LH

main69060-22450iGX11#,JZX110200106-200404

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69410-51010iGX11#,JZX110200106-200404

69415CCOVER, DOOR LOCK STRIKER, REAR

main69415-30020iGX11#,JZX110200106-200404

69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH

main69730-22080iGX11#,JZX110200106-200404

69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH

main69730-22080iGX11#,JZX110200106-200404

69749BCLAMP, REAR DOOR LOCK LINK

main69749-30050iGX11#,JZX110200106-200404

69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH

main69770-22090iGX11#,JZX110200106-200404

69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH

main69770-22090iGX11#,JZX110200106-200404

9014860022

main90148-60022

9014880027

main90148-80027

9015940202

main90159-40202

9016450031

main90164-50031

9018905003

main90189-05003

91511B0610

main91511-B0610

29 parts on this diagram · 1 diagram in section
