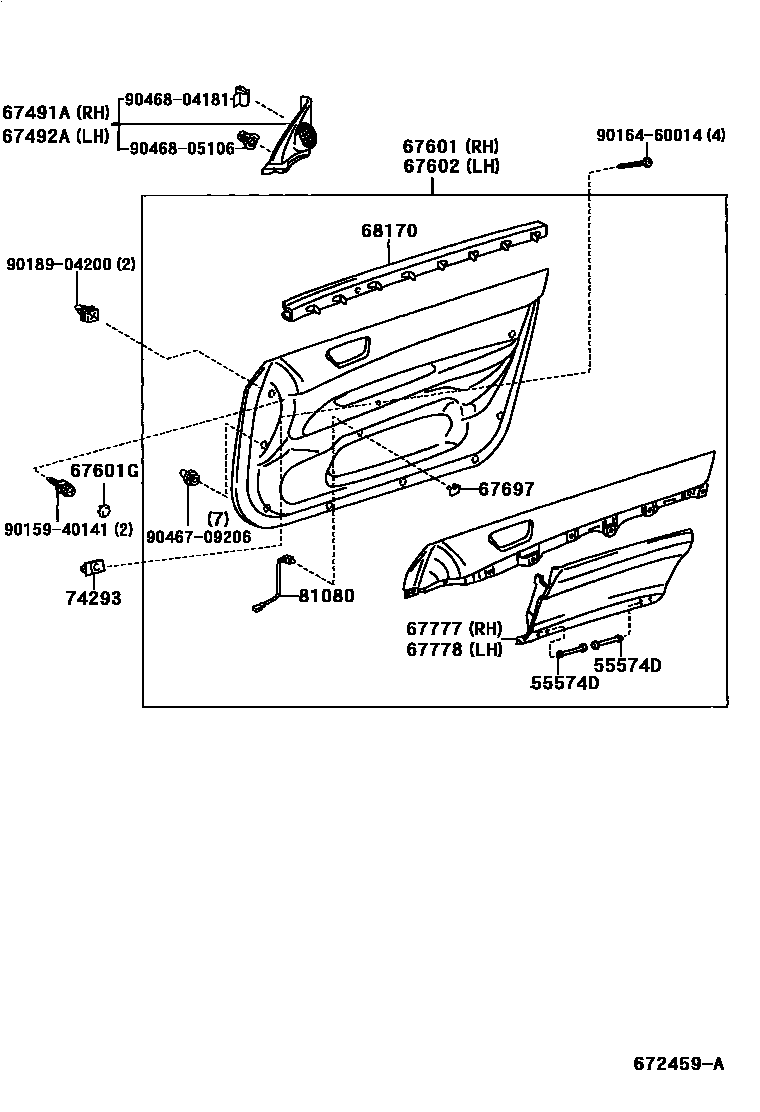

FRONT DOOR PANEL & GLASS

0001 1 0002 1 0003 1����-��

55574DSHAFT(FOR FRONT DOOR TRIM BOARD)

main55574-10010iGX11#,JZX110200106-200404

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-22150iGX11#,JZX110200106-200404

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-22150iGX11#,JZX110200106-200404

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-2C360-B0iGX11#,JZX110..20,25200106-200404

main67610-2C360-C0iGX11#,JZX110..20,25200106-200404

main67610-2C370-B0iGX115,JZX110..20,V25,VR25200106-200404

main67610-2C370-C0iGX115,JZX110..20,V25,VR25200106-200404

main67610-2C380-C1iGX115,JZX110..20,V25,VR25200106-200404

main67610-2C390-B0iGX110200301-200404

main67610-2C390-C0iGX110200204-200212

main67610-2C390-C1iGX110200301-200404

main67610-2C510-B0iGX11#,JZX110..20,25200301-200404

67601GPLUG, HOLE(FOR FRONT DOOR TRIM BOARD)

main90950-01800-C0iGX11#,JZX110200106-200404

BLACK,TRIM1#,2#

sub90950-01800

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-2V260-B0iGX11#,JZX110..20,25200106-200404

main67620-2V260-C0iGX11#,JZX110..20,25200106-200404

main67620-2V270-B0iGX115,JZX110..20,V25,VR25200106-200404

main67620-2V270-C0iGX115,JZX110..20,V25,VR25200106-200404

main67620-2V280-C1iGX115,JZX110..20,V25,VR25200106-200404

main67660-22220-B0iGX110200301-200404

main67660-22220-C0iGX110200204-200212

main67660-22220-C1iGX110200301-200404

main67660-22230-B0iGX11#,JZX110..20,25200301-200404

67697COVER, FRONT DOOR TRIM POCKET

main67697-22240-B0iGX11#,JZX110..20,25200106-200404

sub67697-22240

main67697-22240-B0iGX110200301-200404

sub67697-22240

main67697-22240-C0iGX11#,JZX110..20,25200106-200404

sub67697-22240

main67697-22250-B0iGX115,JZX110..20,V25,VR25200106-200404

sub67697-22250

main67697-22250-C0iGX115,JZX110..20,V25,VR25200106-200404

sub67697-22250

main67698-22190-B0iGX11#,JZX110..20,25200106-200404

sub67698-22190

main67698-22190-C0iGX11#,JZX110..20,25200106-200404

sub67698-22190

main67698-22240-B0iGX115,JZX110..20,V25,VR25200106-200404

sub67698-22240

main67698-22240-C0iGX115,JZX110..20,V25,VR25200106-200404

sub67698-22240

67777POCKET, FRONT DOOR TRIM, RH

main67777-22160-B0iGX11#,JZX110200106-200404

MD.CHARCOAL,TRIM1#

sub67777-22160

main67777-22160-C0iGX11#,JZX110200106-200404

BLACK,TRIM2#

sub67777-22160

67778POCKET, FRONT DOOR TRIM, LH

main67778-22160-B0iGX11#,JZX110200106-200404

MD.CHARCOAL,TRIM1#

sub67778-22160

main67778-22160-C0iGX11#,JZX110200106-200404

BLACK,TRIM2#

sub67778-22160

68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER

main68171-22040iGX11#,JZX110200106-200302

sub68171-22041

main68171-22041iGX11#,JZX110200302-200404

main68172-22020iGX11#,JZX110200106-200302

sub68172-22021

main68172-22021iGX11#,JZX110200302-200404

74293PLATE, FRONT DOOR ARMREST, NO.1

main74294-32010iGX11#,JZX110200106-200404

81080LAMP ASSY, INTERIOR ILLUMINATION, NO.1

main81090-50010iGX115,JZX110..20,V25,VR25200106-200404

9015940141

main90159-40141

9016460014

main90164-60014

9018904200

main90189-04200

9046709206

main90467-09206

9046804181

main90468-04181

9046805106

main90468-05106

18 parts on this diagram · 3 diagrams in section
