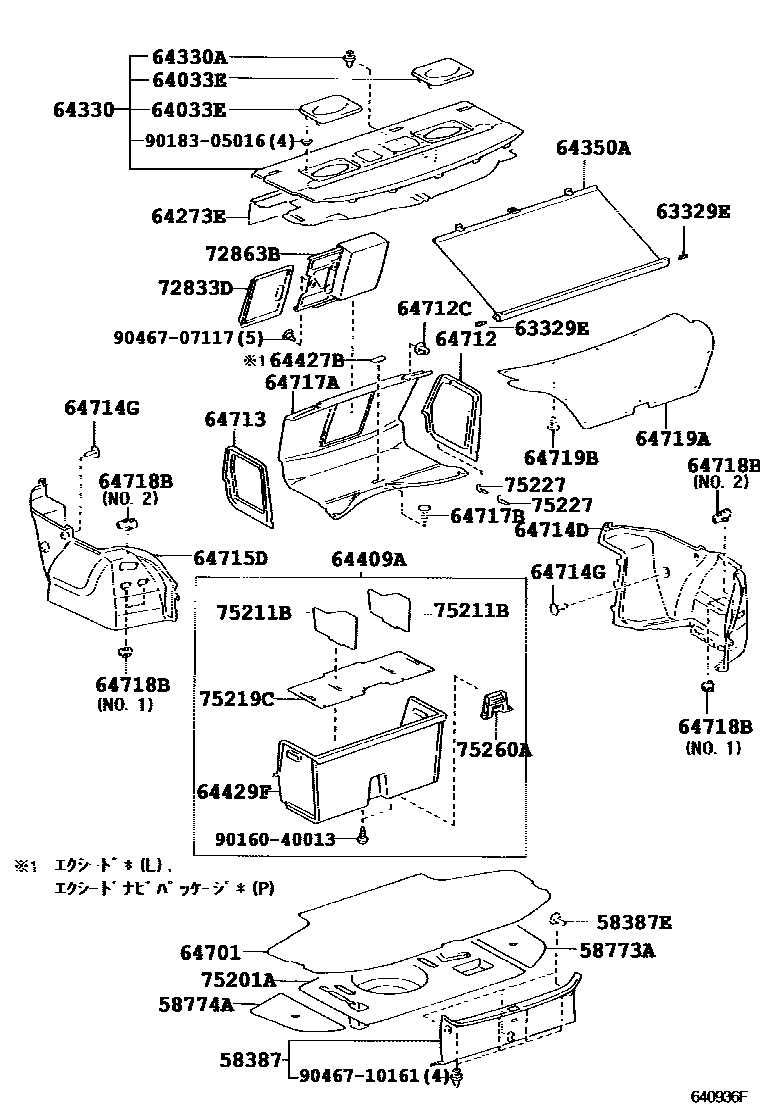

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
58387PLATE, REAR FLOOR FINISH
BLACK,TRIM1#,2#
58387ECLIP(FOR REAR FLOOR FINISH PLATE)
BLACK,TRIM1#,2#
58773ACOVER, LUGGAGE COMPARTMENT SIDE, RH
58774ACOVER, LUGGAGE COMPARTMENT SIDE, LH
63329ESTOPPER, SUNSHADE LOCK
64033EGRILLE SUB-ASSY, REAR SPEAKER
MEDIUM CHACOAL,TRIM1#
BLACK,TRIM2#
64273EPAD, ROOM PARTITION
64330PANEL ASSY, PACKAGE TRAY TRIM
CHARCOAL,TRIM1#
BLACK,TRIM2#
64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)
64350ASHADE ASSY, REAR WINDOW
MD.CHARCOAL,TRIM1#
BLACK,TRIM2#
64409ABOX ASSY, LUGGAGE COMPARTMENT TRIM
64427BCOVER, LUGGAGE COMPARTMENT TRIM BOX
64429FBOX, LUGGAGE COMPARTMENT TRIM
64701MAT SUB-ASSY, LUGGAGE COMPARTMENT
BLACK,TRIM1#,2#
64712COVER, LUGGAGE COMPARTMENT TRIM, RH
BLACK,TRIM1#,2#
64712CCLIP(FOR LUGGAGE COMPARTMENT TRIM COVER)
64713COVER, LUGGAGE COMPARTMENT TRIM, LH
BLACK,TRIM1#,2#
64714DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, RH
BLACK,TRIM1#,2#
64714GCLIP(FOR LUGGAGE COMPARTMENT TRIM SIDE COVER)
BLACK,TRIM1#,2#
64715DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, LH
BLACK,TRIM1#,2#
64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT
BLACK,TRIM1#,2#
64717BCLIP(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)
BLACK,TRIM1#,2#
64718BCOVER, LUGGAGE TRIM SERVICE HOLE
64719ACOVER, LUGGAGE COMPARTMENT DOOR
BLACK,TRIM1#,2#
64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)
BLACK,TRIM1#,2#
72833DDOOR, REAR SEAT CENTER ARMREST
MD.CHARCOAL,TRIM10
BLACK,TRIM10,2#
72863BBOX, REAR SEAT CENTER ARMREST
75201ABOX, TOOL
75211BPANEL, TOOL BOX
75219CCOVER, TOOL BOX
75227CUSHION, TOOL BOX
75260ALOCK ASSY, TOOL BOX
9016040013
main90160-40013
9018305016
main90183-05016
9046707117
main90467-07117
9046710161
main90467-10161
36 parts on this diagram · 1 diagram in section
