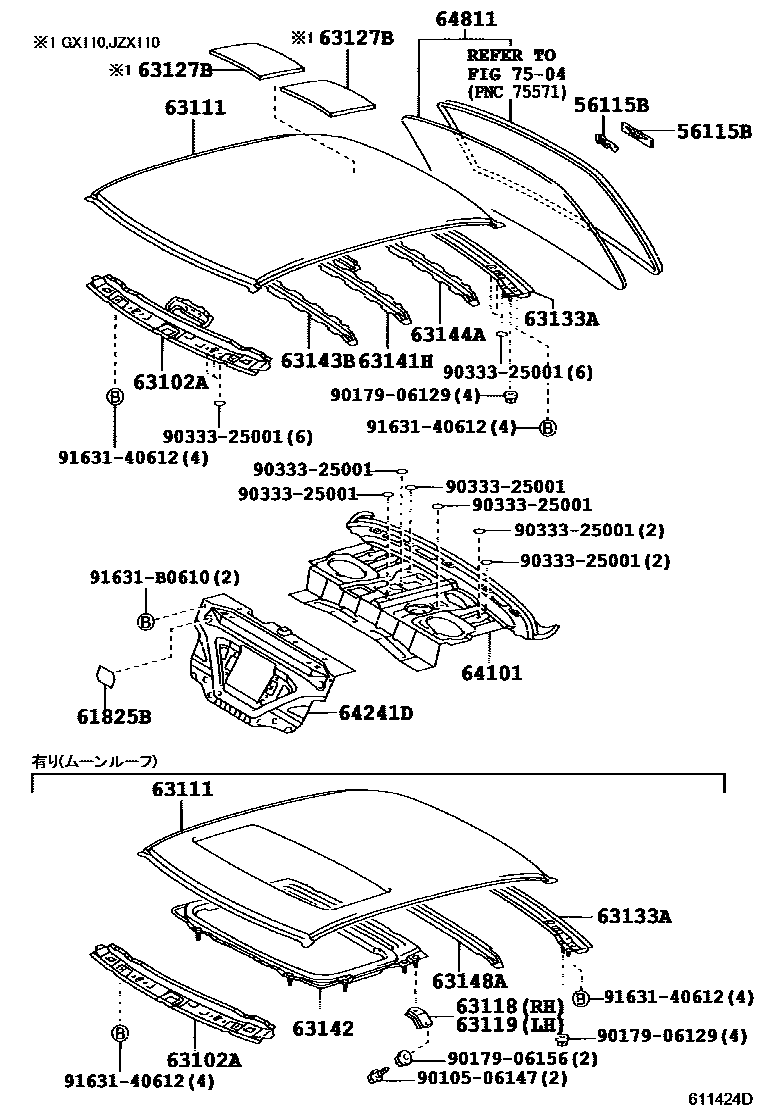

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1��(�-��-�)

56115BSTOPPER, BACK WINDOW GLASS, NO.1

main56115-22010iGX11#,JZX110200106-200404

main56116-22050iGX11#,JZX110200106-200404

61825BPLATE, NOISE CONTROL, NO.2

main61825-51010iGX11#,JZX110200106-200404

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-22310iGX11#,JZX110200106-200404

main63102-22320iGX11#,JZX110200106-200404

63111PANEL, ROOF

main63111-22360iGX11#,JZX110200106-200404

main63111-22370iGX11#,JZX110200106-200404

63118SUPPORT, ROOF PANEL, RH

main63118-22100iGX11#,JZX110200106-200404

63119SUPPORT, ROOF PANEL, LH

main63118-22100iGX11#,JZX110200106-200404

63127BDAMPER, BACK WINDOW UPPER FREME

main63127-22040iGX110,JZX110200106-200404

63133AFRAME, BACK WINDOW, UPPER

main63133-22180iGX11#,JZX110200106-200404

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63103-22170iGX11#,JZX110200106-200404

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-12080iGX11#,JZX110200106-200404

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-22170iGX11#,JZX110200106-200404

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-22140iGX11#,JZX110200106-200404

63148AREINFORCEMENT, ROOF PANEL, NO.7

main63148-22060iGX11#,JZX110200106-200404

64101PANEL SUB-ASSY, UPPER BACK

main64101-22570iGX11#,JZX110200106-200404

main64101-22580iGX11#,JZX110200106-200404

64241DPANEL, ROOM PARTITION

main64241-22030iGX11#,JZX110200106-200404

64811GLASS, BACK WINDOW

main64811-2A630iGX11#,JZX110200106-200404

main64811-2A640iGX11#,JZX110200106-200404

main64811-2A650iGX11#,JZX110200106-200404

main64811-2A660iGX11#,JZX110200106-200404

main64811-2A670iGX11#,JZX110200106-200404

main64811-2A680iGX11#,JZX110200106-200404

main64811-2A690iGX11#,JZX110200106-200404

main64811-2A700iGX11#,JZX110200106-200404

7504

9010506147

main90105-06147

9017906129

main90179-06129

9017906156

main90179-06156

9033325001

main90333-25001

9163140612

main91631-40612

91631B0610

main91631-B0610

23 parts on this diagram · 2 diagrams in section
