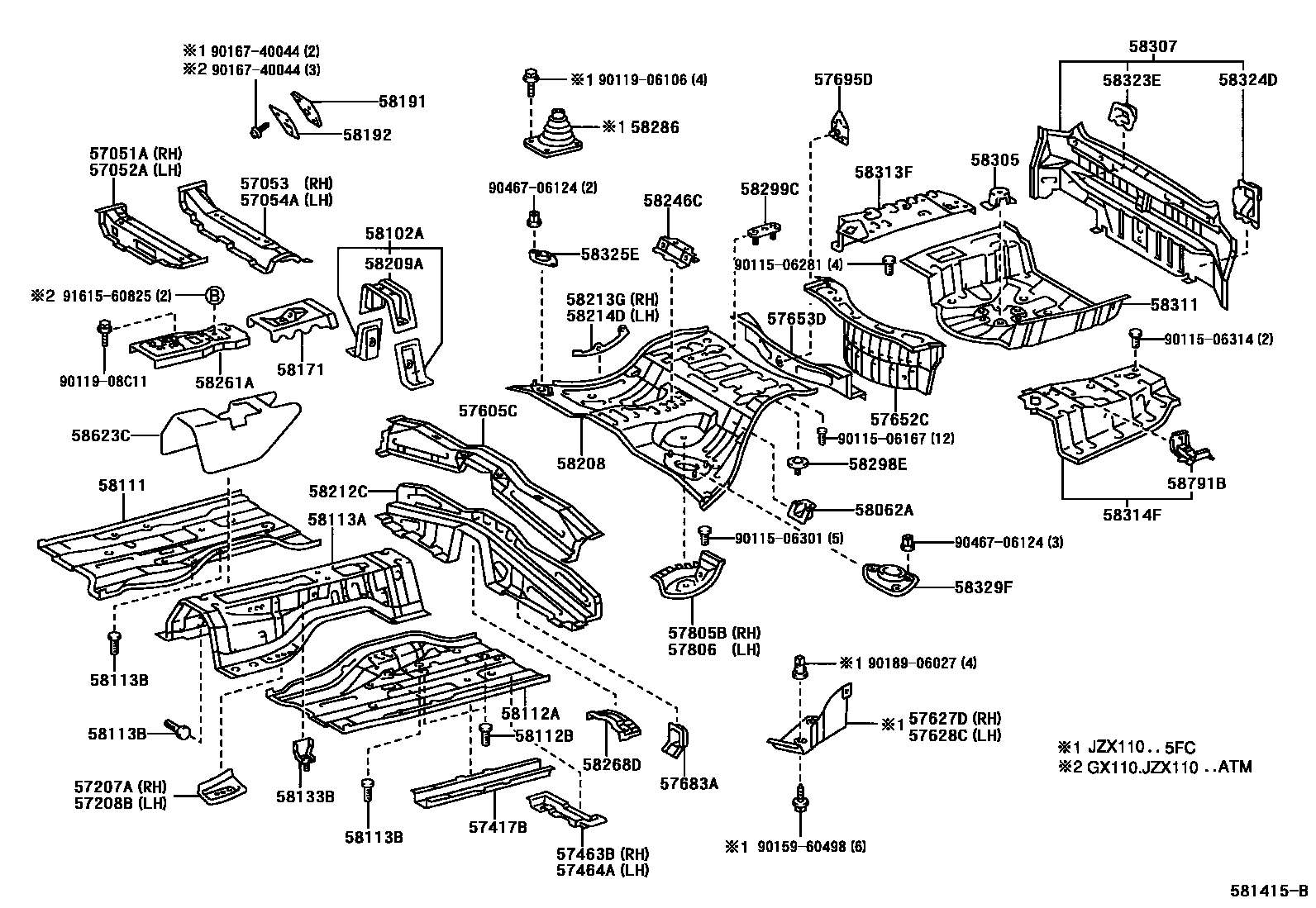

FLOOR PAN & LOWER BACK PANEL
57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH
57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH
57207ABRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER, RH
57208BBRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER, LH
57417BREINFORCEMENT, FRONT FLOOR UNDER
57463BREINFORCEMENT, CENTER FLOOR CROSSMEMBER, RH
57464AREINFORCEMENT, CENTER FLOOR CROSSMEMBER, LH
57605CMEMBER SUB-ASSY, REAR FLOOR CROSS
57627DCOVER, REAR FLOOR SIDE MEMBER
57628CCOVER, REAR FLOOR SIDE MEMBER, LH
57652CMEMBER, REAR FLOOR CROSS, NO.1
57653DMEMBER, REAR FLOOR CROSS, NO.2
57683ABRACKET, FUEL TANK MOUNTING, NO.1
57695DBRACKET, REAR FLOOR MOUNTING, NO.2 RH
57805BREINFORCEMENT SUB-ASSY, BELT ANCHOR, RH
sub57805-53021
57806REINFORCEMENT SUB-ASSY, BELT ANCHOR, LH
sub57806-53021
58062ABRACKET SUB-ASSY, FUEL TANK MOUNTING, REAR
58102AREINFORCEMENT SUB-ASSY, FRONT FLOOR
58112APANEL, FRONT FLOOR, LH
58112BBOLT, WELD(FOR FRONT FLOOR PAN, LH)
58113APANEL, FRONT FLOOR, CENTER
58113BBOLT, WELD(FOR FRONT FLOOR PANEL, CENTER)
58133BBRACKET, FRONT FLOOR HEAT INSULATOR, NO.3
58171REINFORCEMENT, PARKING BRAKE BASE
58191FOOTREST, FRONT FLOOR
58192PANEL, FOOTREST
58208PAN, CENTER FLOOR
58209AREINFORCEMENT SUB-ASSY, DRIVE SHAFT CENTER SUPPORT
58212CPAN, CENTER FLOOR, FRONT
58213GREINFORCEMENT, CENTER FLOOR PANEL, NO.1 RH
58214DREINFORCEMENT, CENTER FLOOR PANEL, NO.1 LH
58246CBRACKET, REAR SEAT HINGE, CENTER NO.2
58261ACOVER, TRANSMISSION
58268DREINFORCEMENT, PARKING BRAKE CABLE, NO.3
58286BOOT, SHIFT & SELECT LEVER, NO.1
58298EBRACKET, HOT AIR INTAKE, NO.1
58299CBRACKET, HOT AIR INTAKE, NO.2
58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
58313FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH
58314FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH
58323EREINFORCEMENT, REAR BUMPER ARM SUPPORT, RH
58324DREINFORCEMENT, REAR BUMPER ARM SUPPORT, LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58329FCOVER, REAR FLOOR SERVICE HOLE, NO.2
58623CPAD, FRONT FLOOR SILENCER, CENTER
58791BCARRIER, JACK
9011506167
main90115-06167
9011506281
main90115-06281
9011506301
main90115-06301
9011506314
main90115-06314
9011906106
main90119-06106
9011908C11
main90119-08C11
9015960498
main90159-60498
9016740044
main90167-40044
9018906027
main90189-06027
9046706124
main90467-06124
9161560825
main91615-60825
62 parts on this diagram · 2 diagrams in section
