COWL PANEL & WINDSHIELD GLASS

53383BSEAL, HOOD TO COWL TOP

main53383-22090iGX11#,JZX110200106-200404

55359CCOSHION, INSTRUMENT PANEL, NO.5

main55359-22050iGX11#,JZX110200106-200404

55701PANEL SUB-ASSY, COWL

main55700-2A150iGX11#,JZX110200106-200111

sub55700-2A151

sub55706-22041

sub55716-22101

main55700-2A151iGX11#,JZX110200111-200404

55713APANEL, COWL TOP SIDE, RH

main55713-22901iGX11#,JZX110200106-200111

sub55713-22902

main55713-22902iGX11#,JZX110200111-200404

55714APANEL, COWL TOP SIDE, LH

main55714-22901iGX11#,JZX110200106-200111

sub55714-22902

main55714-22902iGX11#,JZX110200111-200404

55715ABRACE, COWL TOP TO APRON, RH

main55706-22040iGX11#,JZX110200106-200111

sub55706-22041

main55706-22041iGX11#,JZX110200111-200404

55716ABRACE, COWL TOP TO APRON, LH

main55716-22100iGX11#,JZX110200106-200111

sub55716-22101

main55716-22101iGX11#,JZX110200111-200404

55725BREINFORCEMENT, HOOD HINGE MOUNTING

main55725-22010iGX11#,JZX110200106-200404

55749BRACE, COWL TOP TO PILLAR, LH

main55749-22050iGX11#,JZX110200106-200404

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-22060iGX11#,JZX110200106-200404

sub55708-22070

main55708-22070iGX11#,JZX110200106-200404

56111GLASS, WINDSHIELD

main56111-2A200iGX11#,JZX110200106-200404

main56111-2A210iGX11#,JZX110200106-200404

main56111-2A220iGX11#,JZX110200106-200404

main56111-2A230iGX11#,JZX110200106-200404

56114RETAINER, WINDSHIELD GLASS

main56114-50020iGX11#,JZX110200106-200404

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-22010iGX11#,JZX110200106-200404

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iGX11#,JZX110200106-200404

56117ADAM, WINDOW GLASS ADHESIVE

main56117-22180iGX11#,JZX110200106-200404

sub56117-64010

56118ADAM, WINDOW GLASS ADHESIVE, NO.2

main56117-47010iGX11#,JZX110200106-200404

56118CRETAINER, WINDSHIELD GLASS, NO.2

main56118-30080iGX11#,JZX110200106-200404

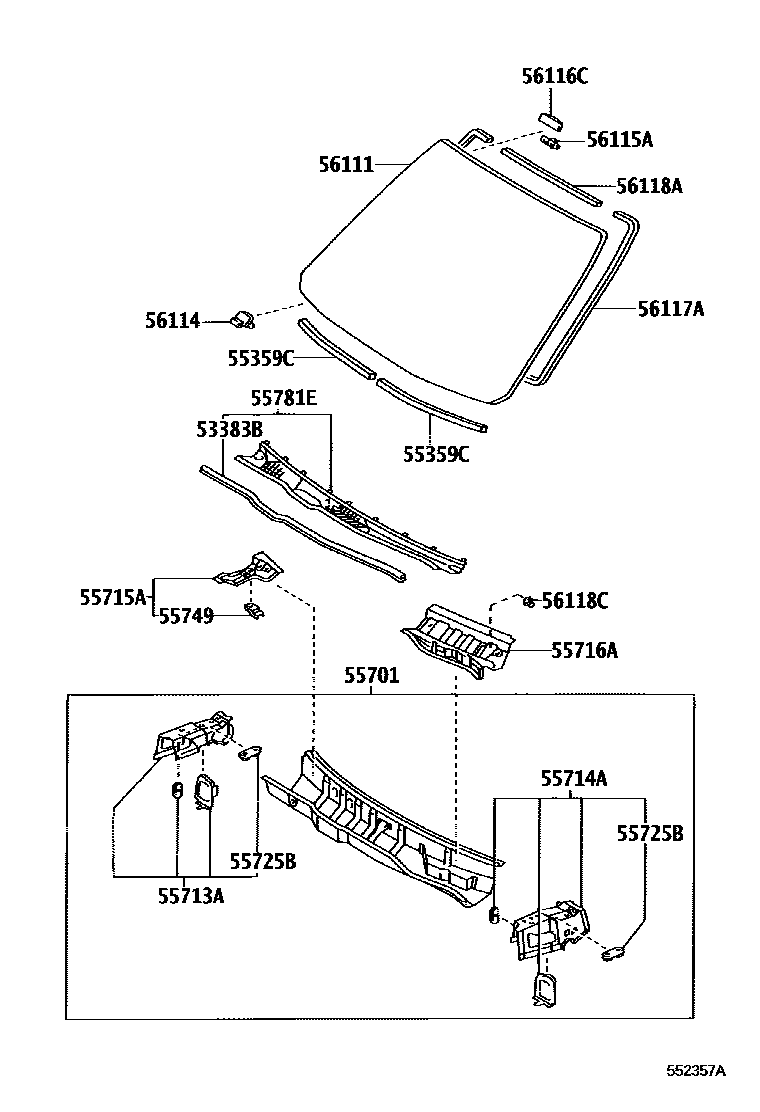

17 parts on this diagram · 1 diagram in section
