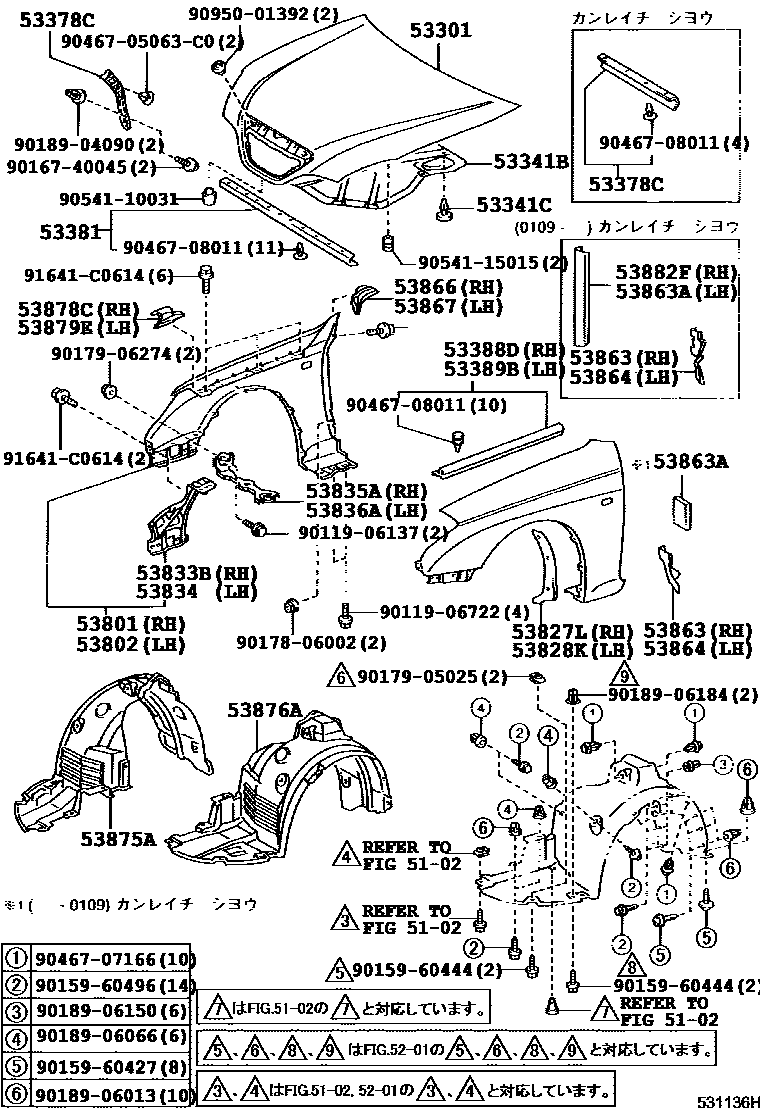

HOOD & FRONT FENDER
5102
53301HOOD SUB-ASSY
53341BINSULATOR, HOOD
53341CCLIP(FOR HOOD INSULATOR)
53378CSEAL, HOOD AIR INTAKE DUCT
53388DSEAL, HOOD TO FRONT FENDER, RH
53389BSEAL, HOOD TO FRONT FENDER, LH
53801FENDER SUB-ASSY, FRONT RH
53802FENDER SUB-ASSY, FRONT LH
53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH
53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH
53833BPANEL, FRONT FENDER SIDE, RH
53834PANEL, FRONT FENDER SIDE, LOWER LH
53835ABRACE, FRONT FENDER TO APRON, RH
53836ABRACE, FRONT FENDER TO APRON, LH
53863SEAL, FRONT FENDER TO DOOR HINGE, LOWER RH
53863ASEAL, FR FENDER TO DOOR HINGE, LWR
53864SEAL, FRONT FENDER TO DOOR HINGE, LOWER LH
53866SEAL, FRONT FENDER TO COWL SIDE, RH
53867SEAL, FRONT FENDER TO COWL SIDE, LH
53875ALINER, FRONT FENDER, RH
53876ALINER, FRONT FENDER, LH
53878CSPACER, FRONT FENDER
53879ESPACER, FRONT FENDER, LH
53882FSEAL, FRONT FENDER
9011906137
main90119-06137
9011906722
main90119-06722
9015960427
main90159-60427
9015960444
main90159-60444
9015960496
main90159-60496
9016740045
main90167-40045
9017806002
main90178-06002
9017905025
main90179-05025
9017906274
main90179-06274
9018904090
main90189-04090
9018906013
main90189-06013
9018906066
main90189-06066
9018906150
main90189-06150
9018906184
main90189-06184
9046705063C0
main90467-05063C0
9046707166
main90467-07166
9046708011
main90467-08011
9054110031
main90541-10031
9054115015
main90541-15015
9095001392
main90950-01392
91641C0614
main91641-C0614
47 parts on this diagram · 1 diagram in section
