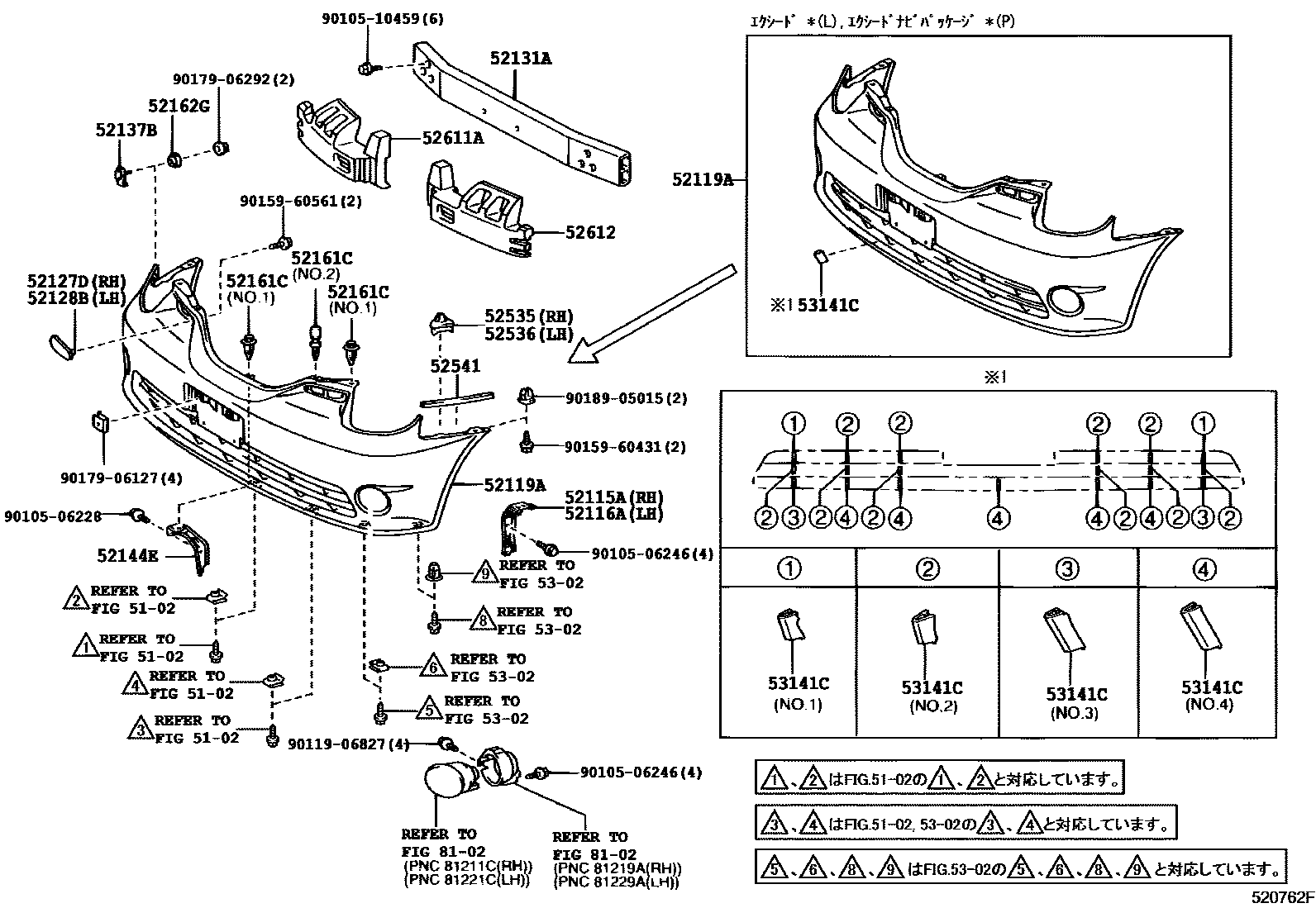

FRONT BUMPER & BUMPER STAY
5102
52115ASUPPORT, FRONT BUMPER SIDE, RH
52116ASUPPORT, FRONT BUMPER SIDE, LH
52127DCOVER, FRONT BUMPER HOLE, RH
52128BCOVER, FRONT BUMPER HOLE, LH
52131AREINFORCEMENT, FRONT BUMPER
52137BPLATE, FRONT BUMPER BRACKET, NO.1
52144ESTAY, FRONT BUMPER, CENTER
52161CPIECE, FRONT BUMPER
52162GPLATE, REAR BUMPER, NO.1
52535RETAINER, FRONT BUMPER SIDE, RH
52536RETAINER, FRONT BUMPER SIDE, LH
52541PROTECTOR, FRONT BUMPER
52611AABSORBER, FRONT BUMPER ENERGY, RH
52612ABSORBER, FRONT BUMPER ENERGY, LH
5302
53141CGARNISH, RADIATOR GRILLE
8102
9010506228
main90105-06228
9010506246
main90105-06246
9010510459
main90105-10459
9011906827
main90119-06827
9015960431
main90159-60431
9015960561
main90159-60561
9017906127
main90179-06127
9017906292
main90179-06292
9018905015
main90189-05015
28 parts on this diagram · 1 diagram in section
