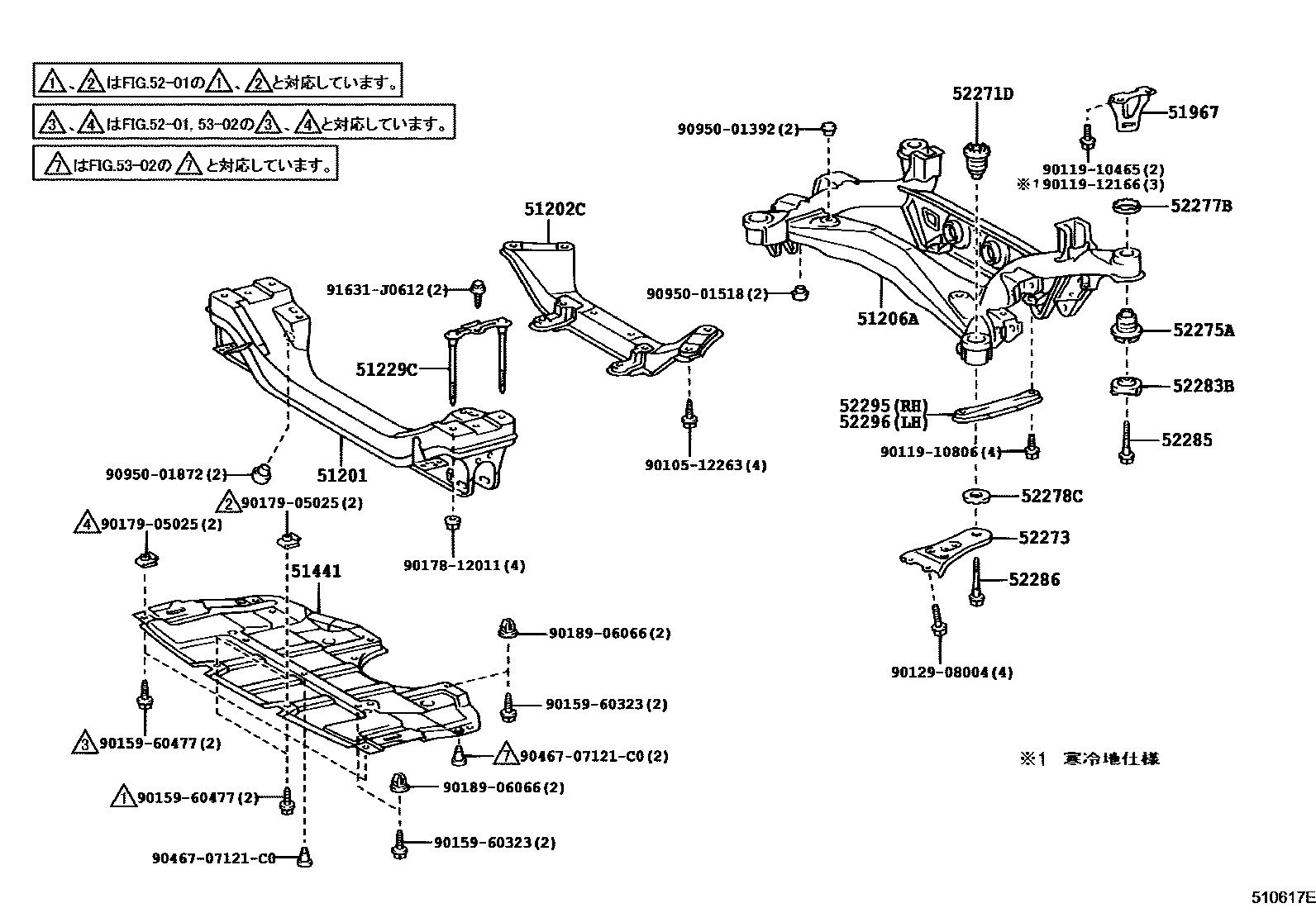

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1 0003 1

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-22581iGX115200106-200110

sub51201-22582

main51201-22582iGX115200110-200404

main51201-51011iGX110,JZX110200106-200404

51202CCROSSMEMBER SUB-ASSY, FRONT SUSPENSION, LOWER

main51202-22010iGX115200106-200404

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-22200iJZX110..5F200106-200404

main51206-51030iGX11#,JZX110..ATM200106-200404

sub51206-53020

main51206-53020iGX11#,JZX110..ATM200106-200404

51229CPLATE, SUSPENSION MEMBER SET

main51229-30010iGX115200106-200404

51441COVER, ENGINE UNDER, NO.1

main51441-22310iJZX110..5FC200106-200404

main51441-22320iJZX110..VR25200106-200404

main51441-22330iGX110200106-200404

main51441-22340iGX115200106-200404

51967HOOK, TRANSPORT, REAR

main51967-22070iGX11#,JZX110200106-200404

main51967-30040iGX11#,JZX110200301-200404

52271DCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT

main52271-51010iGX11#,JZX110200106-200404

52273STOPPER, REAR SUSPENSION MEMBER, LOWER

main52273-51010iGX11#,JZX110..20,25200106-200404

52275ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR

main52275-30080iGX110,JZX110..20,25200106-200404

main52275-30090iGX115200106-200404

main52275-53011iJZX110..V25,VR25200106-200404

52277BSTOPPER, REAR SUSPENSION MEMBER, REAR UPPER

main52277-30020iGX11#,JZX110..20,25200106-200404

main52277-53010iJZX110..V25,VR25200106-200404

52278CSTOPPER, REAR SUSPENSION MEMBER, REAR LOWER

main52278-51010iGX11#,JZX110200106-200404

52283BSTOPPER, DIFFERENTIAL SUPPORT MEMBER, LOWER

main52283-30050iGX11#,JZX110200106-200404

52285BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.1

main52285-30021iGX11#,JZX110200106-200404

52286BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.2

main52286-30010iGX115200106-200404

main52286-53010iGX110,JZX110200106-200404

52295BRACE, REAR SUSPENSION MEMBER, RH

main52295-50010iGX11#,JZX110200106-200404

52296BRACE, REAR SUSPENSION MEMBER, LH

main52295-50010iGX11#,JZX110200106-200404

9010512263

main90105-12263

9011910465

main90119-10465

9011910806

main90119-10806

9011912166

main90119-12166

9012908004

main90129-08004

9015960323

main90159-60323

9015960477

main90159-60477

9017812011

main90178-12011

9017905025

main90179-05025

9018906066

main90189-06066

9046707121C0

main90467-07121C0

9095001392

main90950-01392

9095001518

main90950-01518

9095001872

main90950-01872

91631J0612

main91631-J0612

31 parts on this diagram · 3 diagrams in section
