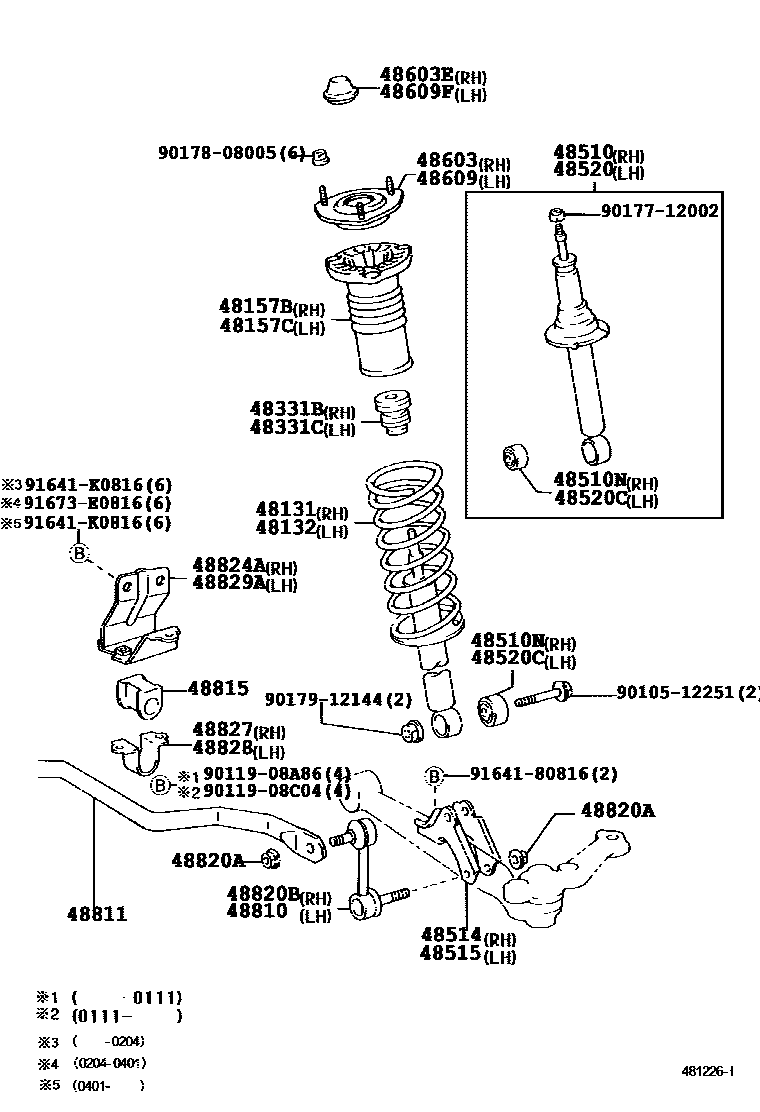

FRONT SPRING & SHOCK ABSORBER
48131SPRING, FRONT COIL, RH
48132SPRING, FRONT COIL, LH
48157BINSULATOR, FRONT COIL SPRING, UPPER RH
48157CINSULATOR, FRONT COIL SPRING, UPPER LH
48331BBUMPER, FRONT SPRING, RH
48331CBUMPER, FRONT SPRING, LH
48510NBUSH(FOR FRONT SHOCK ABSORBER RH)
48514BRACKET, FRONT SHOCK ABSORBER, LOWER RH
48515BRACKET, FRONT SHOCK ABSORBER, LOWER LH
48520CBUSH(FOR FRONT SHOCK ABSORBER LH)
48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
48603EPLUG, HOLE(FOR FRONT SUSPENSION SUPPORT RH)
48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
48609FPLUG, HOLE(FOR FRONT SUSPENSION SUPPORT LH)
48810LINK ASSY, FRONT STABILIZER, LH
48811BAR, STABILIZER, FRONT
48815BUSH, FRONT STABILIZER BAR, NO.1
48820ANUT(FOR FRONT STABILIZER LINK)
48820BLINK ASSY, FRONT STABILIZER, RH
48827BRACKET, FRONT STABILIZER, NO.2 RH
48828BRACKET, FRONT STABILIZER, NO.2 LH
9010512251
main90105-12251
9011908A86
main90119-08A86
9011908C04
main90119-08C04
9017712002
main90177-12002
9017808005
main90178-08005
9017912144
main90179-12144
9164180816
main91641-80816
91641K0816
main91641-K0816
91673E0816
main91673-E0816
34 parts on this diagram · 2 diagrams in section
