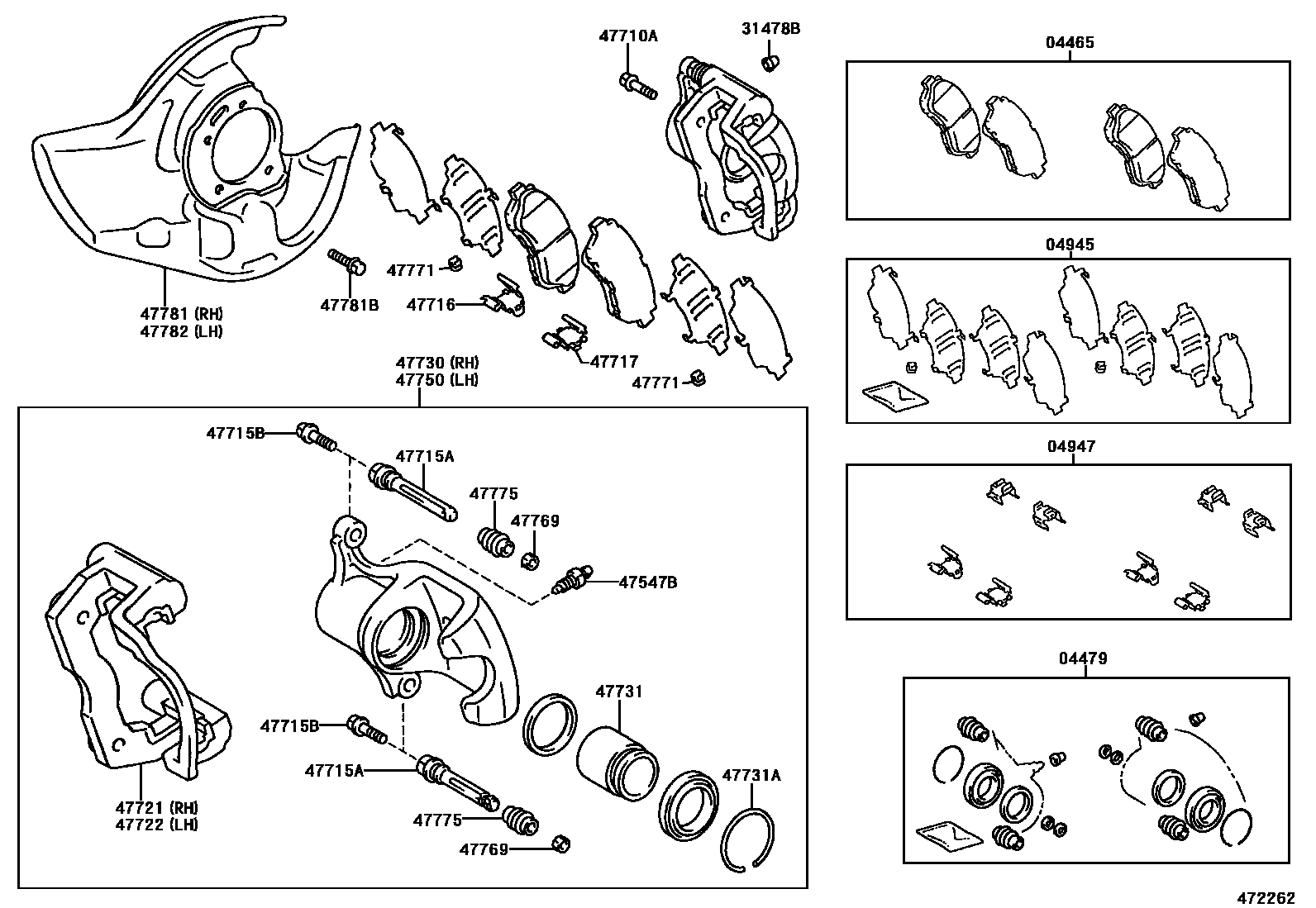

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1 0003 1

04465PAD KIT, DISC BRAKE, FRONT

main04465-22311iJZX110..VR25200106-200212

sub04465-22312

main04465-22312iJZX110..VR25200212-200404

main04465-30080iGX115200106-200404

main04465-30280iGX110,JZX110..20,25,V25200106-200201

sub04465-30300

main04465-30300iGX110,JZX110..20,25,V25200201-200404

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-30250iGX110,JZX110..20,25,V25200210-200404

main04479-30151iGX110,JZX110..20,25,V25200106-200404

sub04478-53020

main04479-30191iJZX110..VR25200106-200404

sub04478-30240

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-30140iJZX110..VR25200106-200404

main04945-30160iGX110,JZX110..20,25,V25200106-200201

sub04945-30170

main04945-30170iGX110,JZX110..20,25,V25200201-200404

main04945-33020iGX115200106-200404

04947FITTING KIT, DISC BRAKE, FRONT

main04947-30090iJZX110..VR25200106-200404

main04947-30100iGX115200106-200404

main04947-30131iGX110,JZX110..20,25,V25200106-200404

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iGX11#,JZX110200106-200404

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-27030iGX11#,JZX110200106-200404

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12228iGX11#,JZX110200106-200404

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-22070iGX115,JZX110..20,VR25200106-200404

main47715-22080iGX115200106-200404

main47715-30060iJZX110..VR25200106-200404

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main90105-08164iGX11#,JZX110200106-200404

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-24010iJZX110..VR25200106-200404

main47716-30140iGX110,JZX110..20,25,V25200106-200404

main47716-30160iGX115200106-200404

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47716-24020iJZX110..VR25200106-200404

main47716-30170iGX115200106-200404

main47717-51010iGX110,JZX110..20,25,V25200106-200404

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-22200iJZX110..VR25200106-200404

main47721-30210iGX110,JZX110..20,25,V25200106-200209

sub47721-30211

main47721-30211iGX110,JZX110..20,25,V25200209-200404

main47721-50010iGX115200106-200404

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-22160iJZX110..VR25200106-200404

main47722-30110iGX110,JZX110..20,25,V25200106-200209

sub47722-30111

main47722-30111iGX110,JZX110..20,25,V25200209-200404

main47722-50010iGX115200106-200404

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-30360iGX115200106-200404

main47730-30440iGX110,JZX110..20,25,V25200106-200404

main47730-53010iJZX110..VR25200106-200404

47731PISTON, FRONT DISC BRAKE

main47731-30110iGX115200106-200404

main47731-30170iJZX110..VR25200106-200404

sub47731-30140

main47731-33070iGX110,JZX110..20,25,V25200106-200404

sub47731-30570

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90520-52006iJZX110..VR25200106-200404

main90520-86005iGX11#,JZX110..20,25,V25200106-200404

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-30360iGX115200106-200404

main47750-30440iGX110,JZX110..20,25,V25200106-200404

main47750-53010iJZX110..VR25200106-200404

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-50010iGX110,JZX110..20,25,V25200106-200404

main47769-50020iGX110,JZX110..20,25,V25200106-200404

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-30090iGX110,JZX110..20,25,V25200106-200404

main47771-50010iGX115200106-200404

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-30070iGX11#,JZX110200106-200404

sub47775-50010

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-22152iJZX110..VR25200106-200404

main47781-22162iGX110,JZX110..20,25,V25200106-200404

main47781-22180iGX115200106-200404

47781BBOLT(FOR DUST COVER SETTING)

main90148-60028iGX11#,JZX110200106-200404

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-22152iJZX110..VR25200106-200404

main47782-22162iGX110,JZX110..20,25,V25200106-200404

main47782-22180iGX115200106-200404

23 parts on this diagram · 3 diagrams in section
