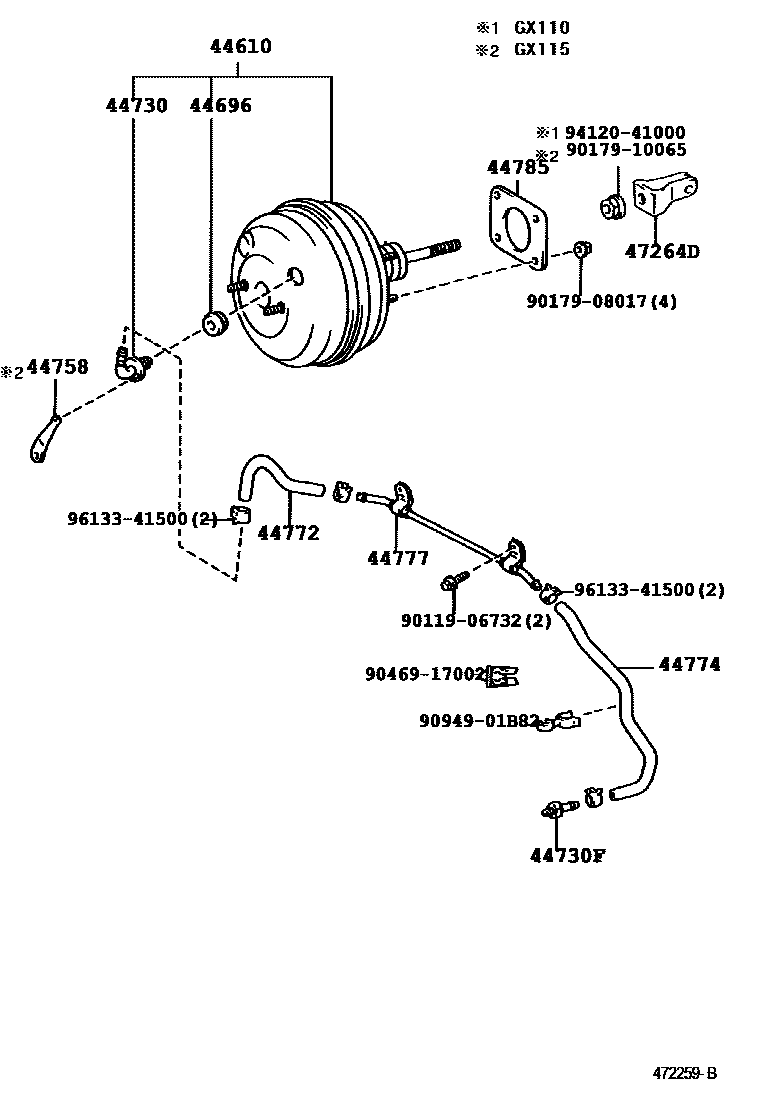

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1

44610BOOSTER ASSY, BRAKE

main44610-2A270iJZX110..VR25200106-200210

main44610-2A280iJZX110..5FC200106-200404

main44610-2A290iJZX110..5FC200106-200404

main44610-2A300iGX115200106-200404

main44610-2A310iGX110200106-200404

main44610-2A320iJZX110..VR25200210-200404

44696GROMMET, CHECK VALVE

main90480-24439iGX11#,JZX110200106-200404

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-14050iGX115,JZX110200106-200404

main44730-20080iGX110200106-200404

44730FUNION, VACUUM HOSE(FOR MANIFOLD SIDE)

main90404-51319iGX11#,JZX110..20,25,V25200106-200404

main90405-09148iJZX110..VR25200106-200404

44758BRACKET, VACUUM CHECK VALVE

main44758-14150iGX11#,JZX110200106-200404

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-22320iGX115,JZX110200106-200404

main44772-22330iGX110200106-200404

44774HOSE, UNION TO CONNECTOR TUBE

main44774-22390iJZX110..VR25200106-200404

main44774-22400iJZX110..5FC200106-200404

main44774-22420iGX115200106-200404

main44774-22430iGX110200106-200404

44777CONNECTOR, VACUUM HOSE, NO.1

main44770-22060iGX11#,JZX110200106-200404

44785GASKET, BRAKE BOOSTER

main44785-30030iGX11#,JZX110200106-200404

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-30060iGX115,JZX110200106-200404

main47264-42010iGX110200106-200404

9011906732

main90119-06732

9017908017

main90179-08017

9017910065

main90179-10065

9046917002

main90469-17002

9094901B82

main90949-01B82

9412041000

main94120-41000

9613341500

main96133-41500

17 parts on this diagram · 3 diagrams in section
