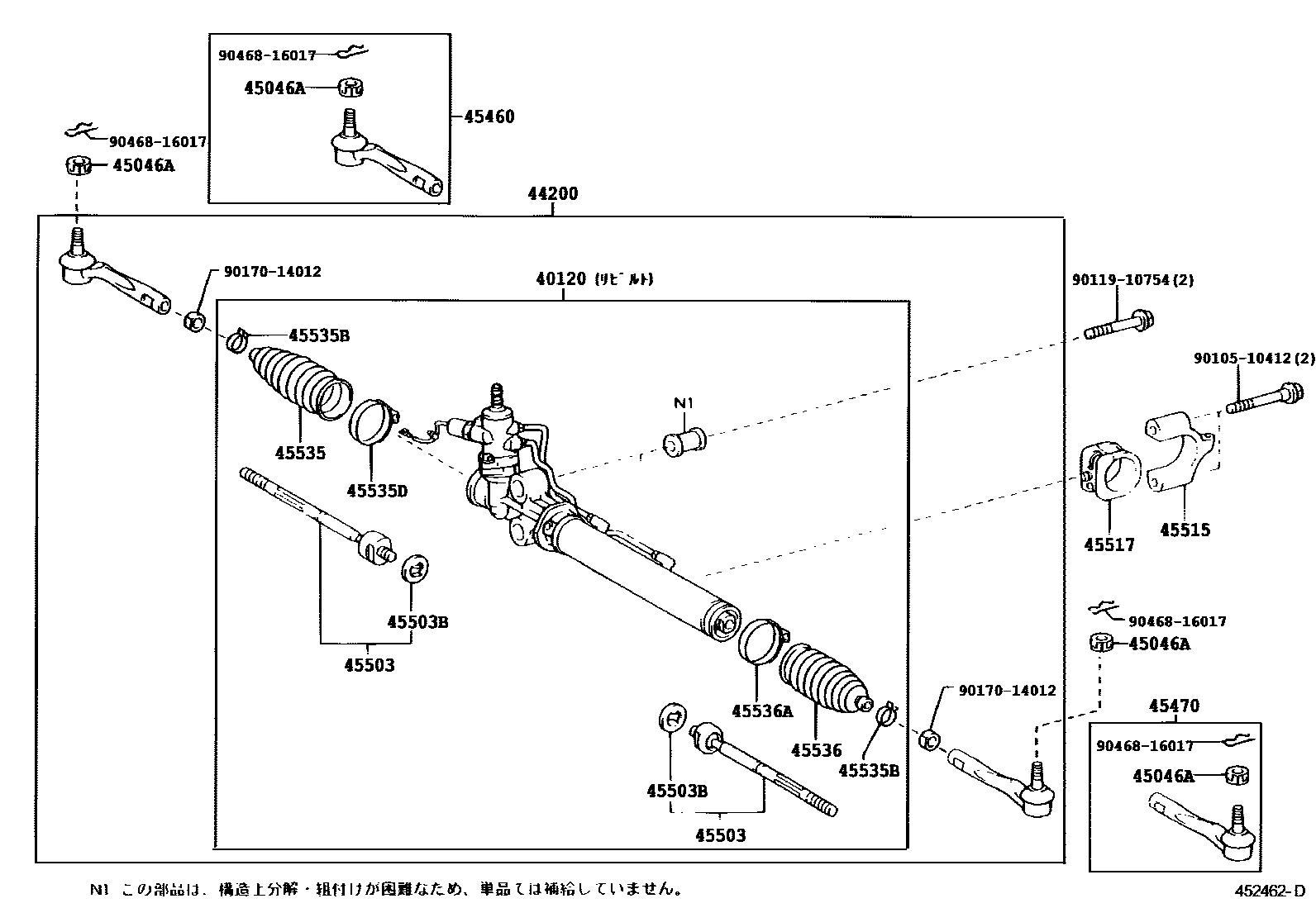

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1

40120GEAR ASSY,POWER STEERING,REBUILT

main40120-22450iJZX110..VR25200106-200404

main40120-22470iGX110,JZX110..20,25,V25200106-200404

main40120-22490iGX115200106-200404

44200LINK ASSY, POWER STEERING

main44200-22451iJZX110..VR25200106-200404

main44200-22471iGX110,JZX110..20,25,V25200106-200404

main44200-22491iGX115200106-200404

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12002iGX11#,JZX110200106-200404

45460ROD ASSY, TIE, RH

main45460-39395iGX115200106-200404

main45460-39575iGX110,JZX110200106-200404

45470ROD ASSY, TIE, LH

main45470-39145iGX115200106-200404

main45470-39205iGX110,JZX110200106-200404

45503END SUB-ASSY, STEERING RACK

main45503-29535iGX115200106-200404

main45503-29785iGX110,JZX110200106-200404

45503BWASHER, CLAW(FOR STEERING RACK END)

main90214-14007iGX11#,JZX110200106-200404

45515BRACKET, STEERING RACK HOUSING, NO.2

main45515-22120iGX110,JZX110200106-200404

main45515-22130iGX115200106-200404

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-22080iGX115200106-200404

main45517-51010iGX110,JZX110200106-200404

45535BOOT, STEERING RACK, NO.1

main45535-30010iGX11#,JZX110200106-200404

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19019iGX11#,JZX110200106-200404

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main90460-49004iGX11#,JZX110200106-200404

45536BOOT, STEERING RACK, NO.2

main45535-30010iGX11#,JZX110200106-200404

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main90460-49004iGX11#,JZX110200106-200404

9010510412

main90105-10412

9011910754

main90119-10754

9017014012

main90170-14012

9046816017

main90468-16017

18 parts on this diagram · 3 diagrams in section
