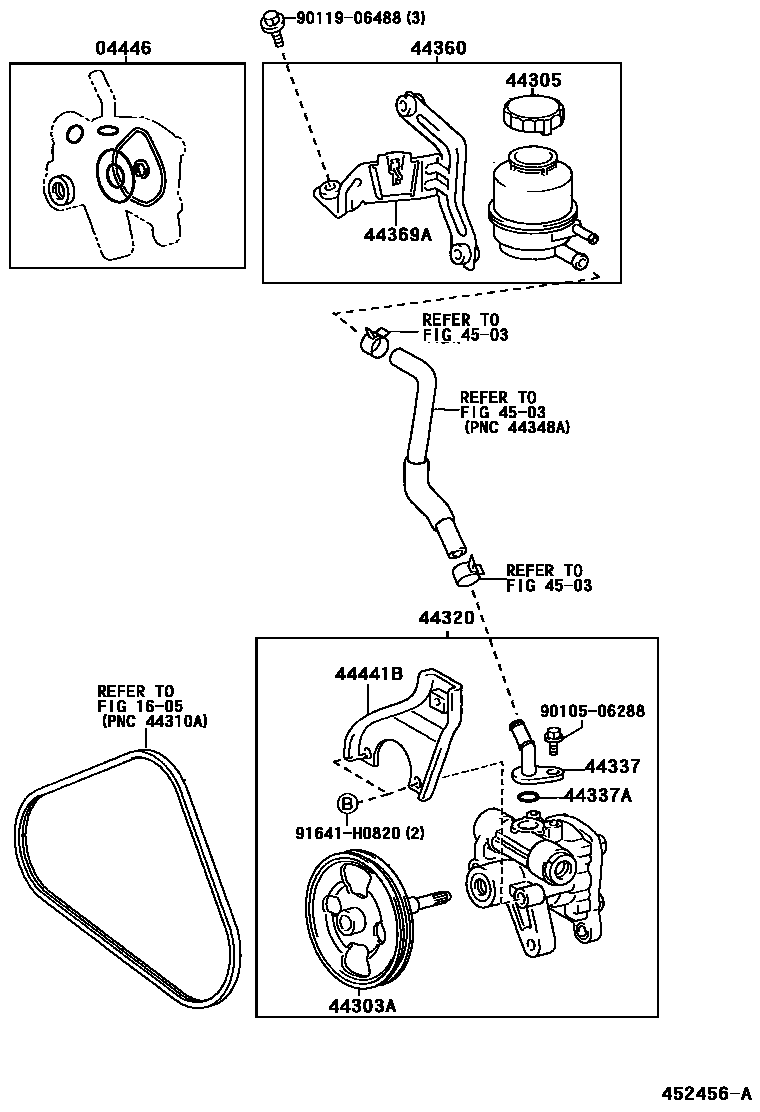

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1 0003 1

04446GASKET KIT, POWER STEERING PUMP

main04446-22070iGX11#200106-200404

main04446-30120iJZX110200106-200404

1605

44303ASHAFT SUB-ASSY, W/PULLEY

main44303-22030iGX11#200106-200404

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-22030iGX11#200106-200404

sub44305-22050

main44305-28020iJZX110..VR25200106-200404

sub44305-28050

main44305-50010iJZX110..5FC200106-200404

sub44305-50020

44320PUMP ASSY, VANE

main44310-22650iGX11#200106-200404

main44320-30620iJZX110..VR25200106-200404

main44320-51020iJZX110..5FC200106-200404

44337UNION, POWER STEERING SUCTION PORT

main44337-10071iJZX110..VR25200106-200404

main44337-22150iGX11#200106-200404

44337ARING, O(FOR POWER STEERING SUCTION PORT)

main90301-11016iJZX110200106-200404

main90301-15022iGX11#200106-200404

44360RESERVOIR ASSY, VANE PUMP OIL

main44306-30280iJZX110..5FC200106-200404

main44360-30170iJZX110..VR25200106-200404

main44360-30180iGX11#200106-200404

44369ABRACKET, OIL RESERVOIR, NO.1

main44390-30050iJZX110..VR25200106-200404

main44390-53010iGX11#200106-200404

44441BBRACKET, PUMP, FRONT

main44441-22060iGX11#200106-200404

main44441-30080iJZX110200106-200404

4503

9010506288

main90105-06288

9011906488

main90119-06488

91641H0820

main91641-H0820

14 parts on this diagram · 3 diagrams in section
