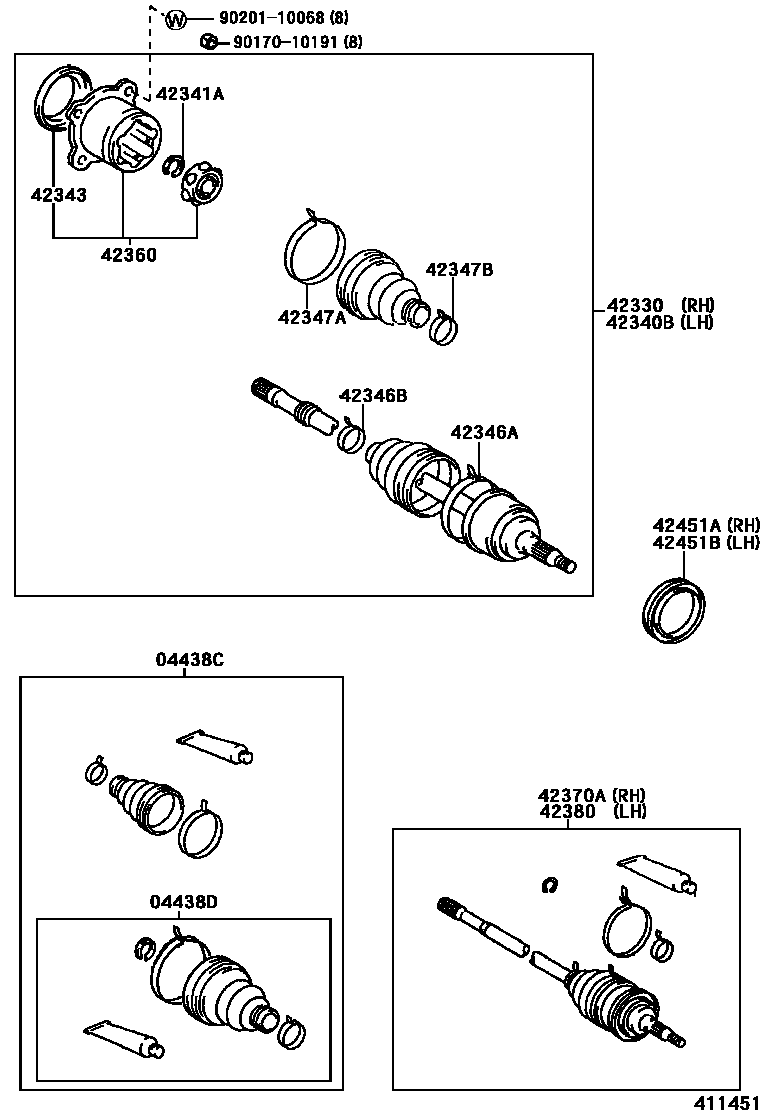

REAR AXLE SHAFT & HUB
04438CBOOT KIT, REAR DRIVE SHAFT
sub04429-40020
sub04429-30080
sub04429-22020
sub04429-30040
sub04429-22030
04438DBOOT KIT, REAR DRIVE SHAFT INBOARD JOINT
sub04439-22020
sub04439-30030
sub04439-22030
sub04439-40020
sub04439-30060
42330SHAFT ASSY, REAR DRIVE, RH
42340BSHAFT ASSY, REAR DRIVE, LH
42341ARING, SNAP (FOR REAR DRIVE SHAFT)
42343COVER, OUTBOARD JOINT END
42346ACLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT)
42346BCLAMP, NO. 2 (FOR RR DRIVE SHAFT OUTBOARD JOINT BOOT)
42347ACLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)
42347BCLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)
42360JOINT ASSY, REAR DRIVE SHAFT INBOARD
42370ASHAFT ASSY, REAR DRIVE OUTBOARD JOINT, RH
sub42370-29675
sub42370-29665
sub42370-29655
sub42370-39235
sub42370-39225
42380SHAFT ASSY, REAR DRIVE OUTBOARD JOINT, LH
sub42380-29225
sub42380-29215
sub42380-29205
sub42380-39145
sub42380-39135
42451ADEFLECTOR, REAR WHEEL BEARING DUST, NO.1 RH
42451BDEFLECTOR, REAR WHEEL BEARING DUST, NO.1 LH
9017010191
main90170-10191
9020110068
main90201-10068
17 parts on this diagram · 6 diagrams in section
