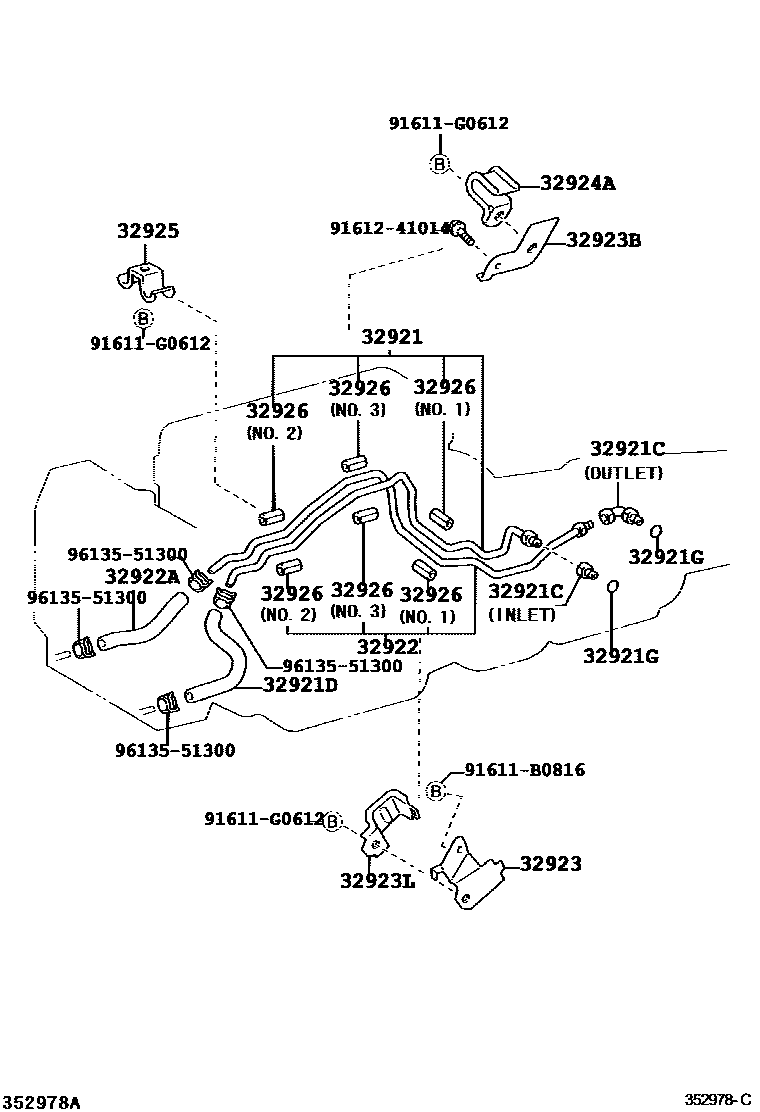

OIL COOLER & TUBE (ATM)

0001 1A42DE 0002 1A340H 0003 1A340E 0004 1A343E

32921TUBE, OIL COOLER INLET, NO.1

main32921-22600iGX115200106-200404

main32921-22610iGX110200106-200404

main32921-22760iJZX110..4FC200106-200404

main32921-51030iJZX110..5FC200106-200404

sub32921-53080

32921CUNION(FOR OIL COOLER TUBE)

main90404-14021iGX110200106-200404

main90404-16029iJZX110..ATM200106-200404

main90407-14003iGX110200106-200404

main90407-16009iGX115,JZX110..ATM200106-200404

main90407-16012iGX115200106-200404

32921DHOSE(FOR OIL COOLER INLET)

main32941-22520iJZX110..4FC200106-200404

main90445-15058iGX110200106-200404

main90445-15079iGX115200106-200404

main90445-17069iJZX110..5FC200106-200404

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189iGX110200106-200404

main90301-11006iGX115,JZX110..ATM200106-200404

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-22790iJZX110..5FC200106-200404

sub32922-53060

main32922-22820iGX115200106-200404

main32922-22830iGX110200106-200404

main32922-22840iJZX110..4FC200106-200404

32922AHOSE(FOR OIL COOLER OUTLET)

main32942-22420iJZX110..4FC200106-200404

main90445-15047iGX115200106-200404

main90445-15054iGX110200106-200404

main90445-17096iJZX110..5FC200106-200404

32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32923-22080iGX110200106-200404

32923BCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1

main32924-53020iGX110200106-200404

main32929-30140iJZX110..4FC200106-200404

main32929-51010iJZX110..5FC200106-200404

32923LCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.3

main32929-22050iGX11#,JZX110..4FC200106-200404

main32929-50020iJZX110..5FC200106-200404

32924ACLAMP(FOR OIL COOLER TUBE, NO.2)

main32929-30120iGX110200106-200404

32925CLAMP, OIL COOLER TUBE, NO.3

main90462-12047iGX115200106-200404

main90462-12085iGX110200106-200404

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-22010iGX110200106-200404

main32926-22020iGX110200106-200404

main32926-22050iGX110200106-200404

main32926-30020iGX115,JZX110..4FC200106-200404

main32926-30030iJZX110..5FC200106-200404

main32926-30030iJZX110..5FC200106-200404

91611B0816

main91611-B0816

91611G0612

main91611-G0612

9161241014

main91612-41014

9613551300

main96135-51300

16 parts on this diagram · 4 diagrams in section
