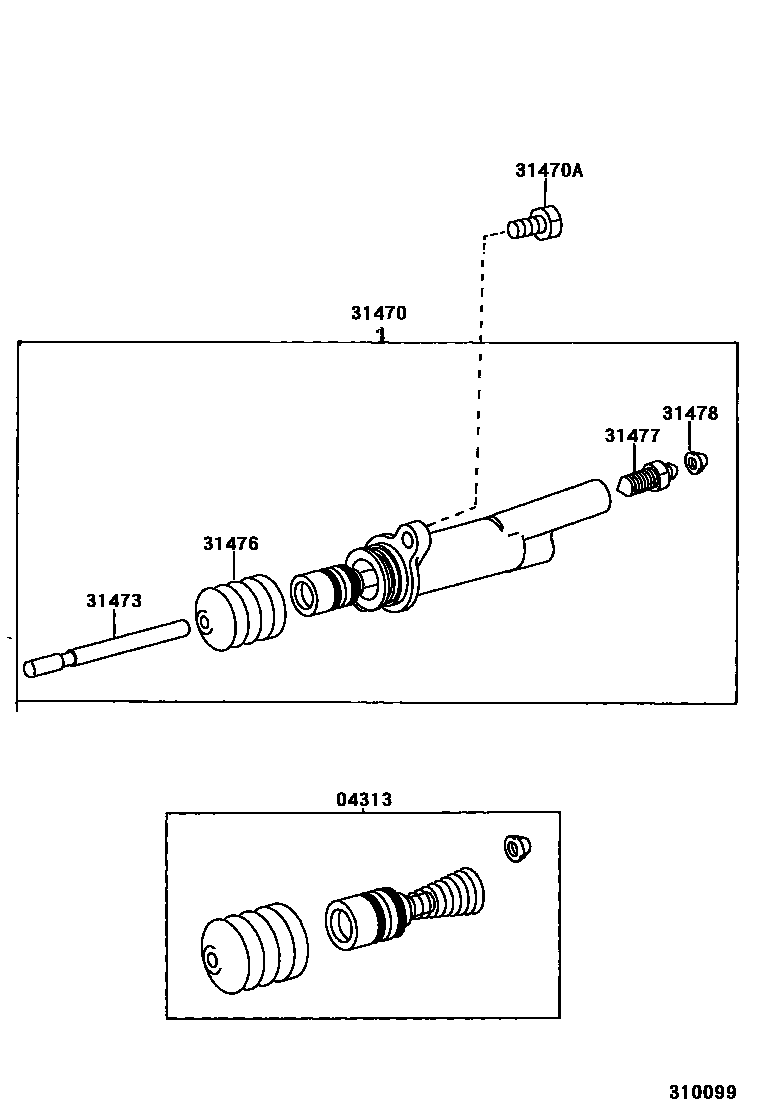

CLUTCH RELEASE CYLINDER

04313CYLINDER KIT, CLUTCH RELEASE

main04313-14011iJZX110..5F200106-200404

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-14050iJZX110..5F200106-200404

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60822iJZX110..5F200106-200404

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-14020iJZX110..5F200106-200404

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iJZX110..5F200106-200404

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iJZX110..5F200106-200404

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iJZX110..5F200106-200404

7 parts on this diagram · 1 diagram in section
