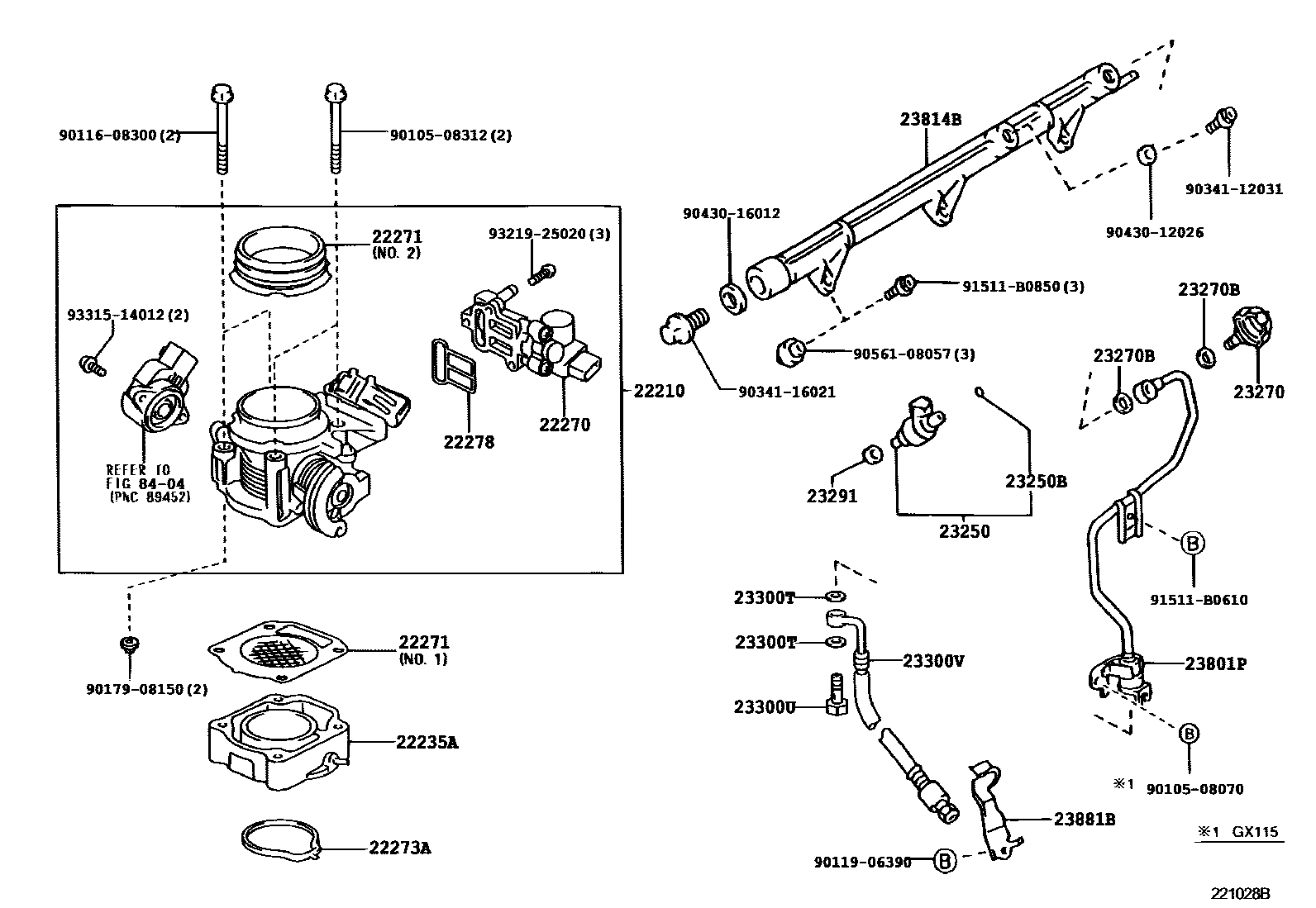

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

22210BODY ASSY, THROTTLE

main22030-46180i1JZGTE..JZX110200106-200404

main22030-46250i1JZFSE..JZX110200106-200404

main22210-70420i1GFE..GX11#200106-200404

22235AINLET, AUXILIARY AIR

main22235-70010i1GFE..GX11#200106-200404

22270VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)

main22270-70130i1GFE..GX11#200106-200404

22271GASKET, THROTTLE BODY

main22271-46100i1JZFSE..JZX110200106-200404

main22271-70030i1GFE..GX11#200106-200404

main22271-70040i1GFE..GX11#200106-200404

main22271-88400i1JZGTE..JZX110200106-200404

22273AGASKET, THROTTLE BODY, NO.2

main22273-70020i1GFE..GX11#200106-200404

22278GASKET, IDLE SPEED CONTROL VALVE

main22278-46020i1GFE..GX11#200106-200404

23250INJECTOR ASSY, FUEL

main23209-46070i1JZGTE..JZX110200106-200404

main23209-49055i1JZFSE..JZX110200106-200108

sub23209-49056

main23209-49056i1JZFSE..JZX110200108-200404

sub23209-49057

main23209-70120i1GFE..GX11#200106-200404

23250BRING, O(FOR FUEL INJECTOR)

main90301-06013i1JZFSE..JZX110200106-200404

sub90301-06018

main90301-07024i1GFE..GX11#200106-200404

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23207-46010i1GFE..GX11#200106-200404

sub23207-20011

main23207-46030i1JZFSE..JZX110200106-200302

sub23207-46031

main23207-46031i1JZFSE..JZX110200302-200404

sub23207-31010

23270BGASKET(FOR PULSATION DAMPER HOSE)

main23232-41081i1GFE..GX11#200106-200404

main23279-74010i1JZFSE..JZX110200106-200404

main90430-12026i1JZGTE..JZX110200106-200404

23291INSULATOR, INJECTOR VIBRATION

main23291-41010i1GFE..GX11#200106-200404

23300TGASKET(FOR FUEL FILTER)

main90430-12026i1JZ#..JZX110200106-200411

23300UBOLT, UNION(FOR FUEL FILTER)

main90401-12029i1JZGTE..JZX110200106-200404

main90401-12029i1GFE..GX11#200106-200411

main90401-12097i1JZGTE..JZX110200106-200404

23300VHOSE, FUEL(FOR FUEL INLET)

main23271-70100i1GFE..GX115200106-200411

main90923-01410i1GFE..GX110200106-200411

main90923-01415i1JZGTE..JZX110200106-200404

23801PPIPE SUB-ASSY, FUEL, NO.1

main23801-46110i1JZFSE..JZX110200106-200404

main23801-70120i1GFE..GX110200106-200404

main23801-70130i1GFE..GX115200106-200404

main23801-88411i1JZGTE..JZX110200106-200210

main23801-88412i1JZGTE..JZX110200210-200404

23814BPIPE, FUEL DELIVERY

main23814-70050i1GFE..GX11#200106-200311

sub23814-70061

main23814-70061i1GFE..GX11#200311-200404

23881BBRACKET, FUEL HOSE

main23881-46030i1JZ#..JZX110200106-200411

main23881-46040i1GFE..GX115200106-200411

8404

9010508070

main90105-08070

9010508312

main90105-08312

9011608300

main90116-08300

9011906390

main90119-06390

9017908150

main90179-08150

9034112031

main90341-12031

9034116021

main90341-16021

9043012026

main90430-12026

9043016012

main90430-16012

9056108057

main90561-08057

91511B0610

main91511-B0610

91511B0850

main91511-B0850

9321925020

main93219-25020

9331514012

main93315-14012

32 parts on this diagram · 7 diagrams in section
