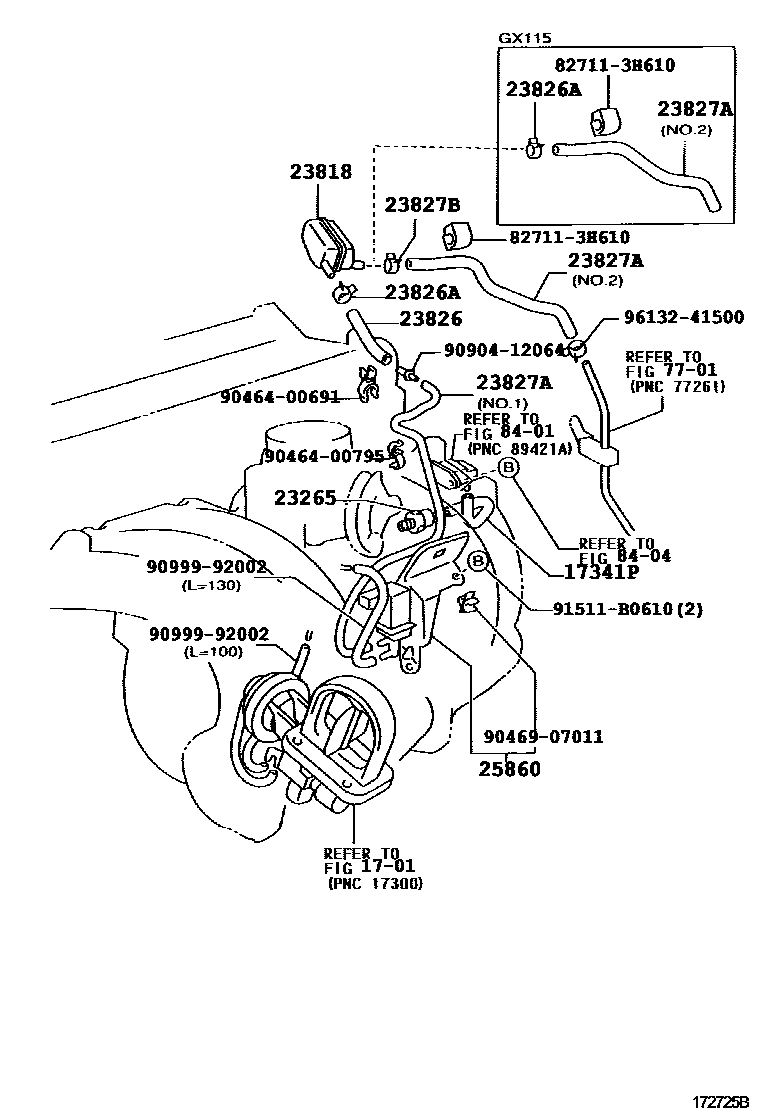

VACUUM PIPING

0001 1 0002 1 0003 1

1701

17341PHOSE, AIR

main17341-70260i1GFE..GX11#200106-200404

23265FILTER, GAS, NO.1

main90917-11022i1GFE..GX11#200106-200404

main90917-11031i1JZFSE..JZX110200106-200404

23818PIPE, FUEL VAPOR FEED

main23818-46110i1GFE..GX11#200106-200411

main23818-46120i1JZFSE..JZX110200106-200404

main23818-88400i1JZGTE..JZX110200106-200404

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-46040i1JZFSE..JZX110200106-200404

main23826-70030i1GFE..GX11#200106-200411

main23826-88400i1JZGTE..JZX110200106-200404

23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)

main96132-51100i1JZFSE..JZX110200106-200404

main96132-51300i1GFE..GX11#200106-200411

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-46060i1GFE..GX110200106-200411

main23827-46070i1JZFSE..JZX110200106-200404

main23827-46080i1JZGTE..JZX110200106-200404

main23827-46130i1JZFSE..JZX110200106-200404

main23827-70020i1GFE..GX11#200106-200411

main23827-70030i1GFE..GX115200106-200411

main23827-88400i1JZGTE..JZX110200106-200404

23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

main96132-41500i1JZFSE..JZX110200106-200404

main96132-51100i1JZFSE..JZX110200106-200404

main96132-51300i1JZFSE..JZX110200106-200404

main96132-51300i1GFE..GX11#200106-200411

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-46010i1JZFSE..JZX110200106-200404

main25860-70020i1GFE..GX11#200106-200404

main90910-12124i1JZFSE..JZX110200106-200404

7701

8401

8404

827113H610WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3H610

9046400691

main90464-00691

9046400795

main90464-00795

9046907011

main90469-07011

9090412064

main90904-12064

9099992002

main90999-92002

91511B0610

main91511-B0610

9613241500

main96132-41500

20 parts on this diagram · 3 diagrams in section
