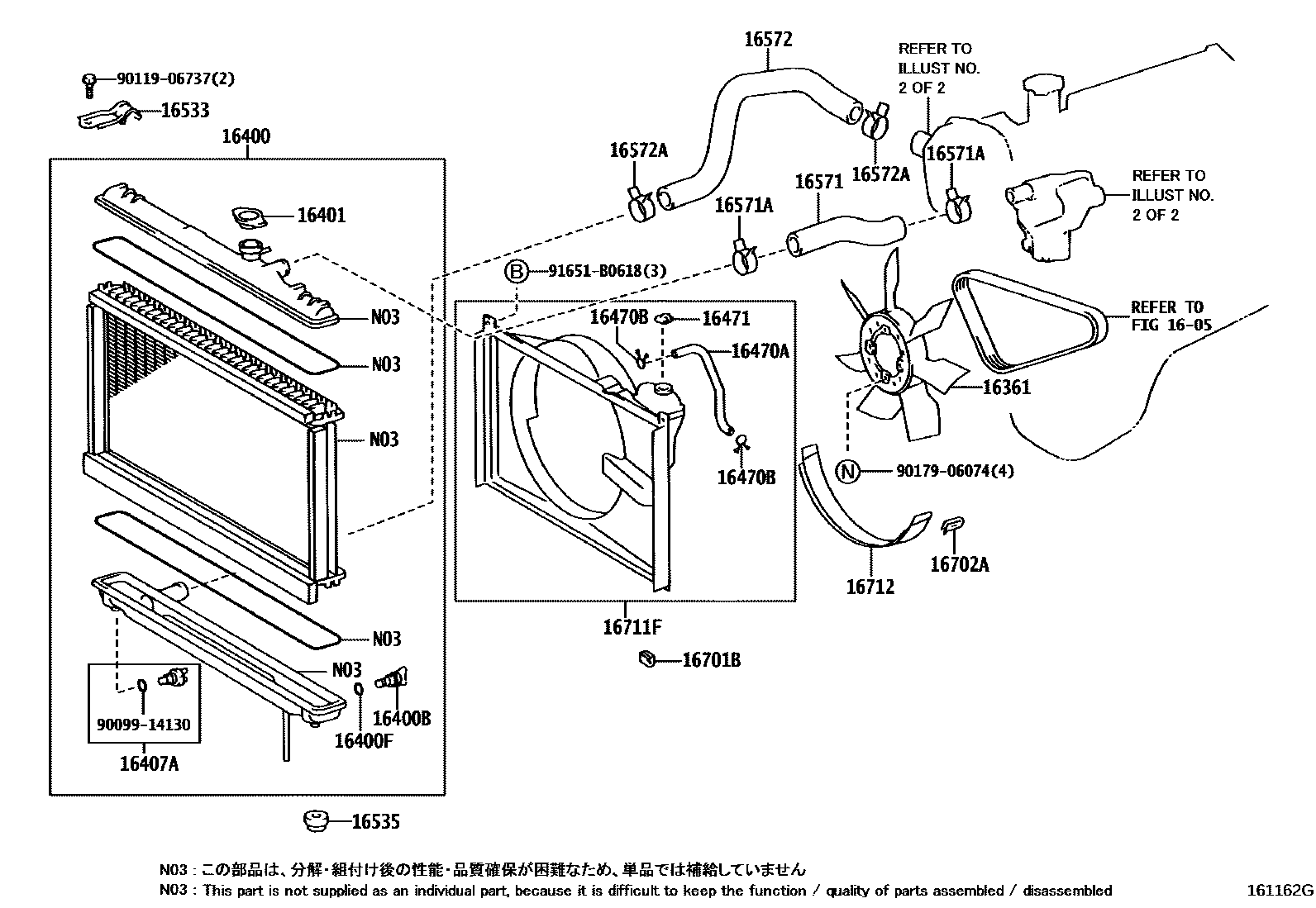

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

1605

16361FAN

main16361-20050i1JZGTE..JZX110200106-200404

main16361-46040i1JZFSE..JZX110200106-200404

main16361-70040i1GFE..GX11#200106-200404

16400RADIATOR ASSY

main16400-46620i1JZGTE..JZX110..4FC200106-200404

main16400-46670i1JZGTE..JZX110..5F200106-200404

main16400-46680i1JZFSE..JZX110200106-200404

main16400-70690i1GFE..GX11#200106-200404

16400BPLUG, RADIATOR DRAIN COCK

main23322-54010i1JZ#..JZX110200106-200411

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16492-21050i1JZ#..JZX110200106-200411

16401CAP SUB-ASSY, RADIATOR

main16401-46610i1JZ#..JZX110200106-200404

sub16401-30020

main16401-62100i1GFE..GX11#200106-200411

sub16401-31520

16407ACOCK SUB-ASSY, RADIATOR DRAIN

main16407-7A130i1JZ#..JZX110200106-200411

16470TANK ASSY, RADIATOR RESERVE

main16470-46160i1JZGTE..JZX110200106-200404

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main16565-46050i1JZFSE..JZX110200106-200404

main16565-70040i1GFE..GX11#200106-200411

main16567-46040i1JZGTE..JZX110200106-200404

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i1JZ#..JZX110200106-200411

16471CAP SUB-ASSY, RESERVE TANK

main16405-13050i1JZGTE..JZX110200106-200404

main16471-70010i1GFE..GX11#200106-200411

main16471-70020i1JZFSE..JZX110200106-200404

16533SUPPORT, RADIATOR, UPPER

main16505-46110i1JZ#..JZX110200106-200411

16535SUPPORT, RADIATOR, LOWER

main90480-40021i1JZ#..JZX110200106-200411

16571HOSE, RADIATOR, INLET

main16571-46330i1JZGTE..JZX110200106-200404

main16571-46340i1JZFSE..JZX110200106-200404

main16571-70350i1GFE..GX110200106-200411

main16571-70360i1GFE..GX115200106-200411

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-37005i1JZ#..JZX110200106-200411

16572HOSE, RADIATOR, OUTLET

main16572-46240i1JZFSE..JZX110200106-200404

main16572-46300i1JZGTE..JZX110200106-200404

main16572-70280i1GFE..GX110200106-200411

main16572-70290i1GFE..GX115200106-200411

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90466-41007i1JZ#..JZX110200308-200404

main90466-41008i1JZ#..JZX110200106-200308

main90467-37005i1JZ#..JZX110200106-200404

main90467-37005i1GFE..GX11#200106-200411

16701BCUSHION, FAN SHROUD

main90541-11002i1JZFSE..JZX110200106-200411

16702ACLIP(FOR FAN SHROUD NO.2)

main90468-06070i1GFE..GX11#200106-200411

16711SHROUD, FAN

main16711-46370i1JZGTE..JZX110200106-200404

16711FSHROUD, FAN(W/RADIATOR RESERVE TANK)

main16711-46380i1JZFSE..JZX110200106-200404

main16711-70220i1GFE..GX110200106-200404

main16711-70230i1GFE..GX115200106-200404

16712SHROUD, FAN, NO.2

main16702-46040i1JZFSE..JZX110200106-200404

main16712-70080i1GFE..GX11#200106-200411

9009914130

main90099-14130

9011906737

main90119-06737

9017906074

main90179-06074

91651B0618

main91651-B0618

26 parts on this diagram · 6 diagrams in section
