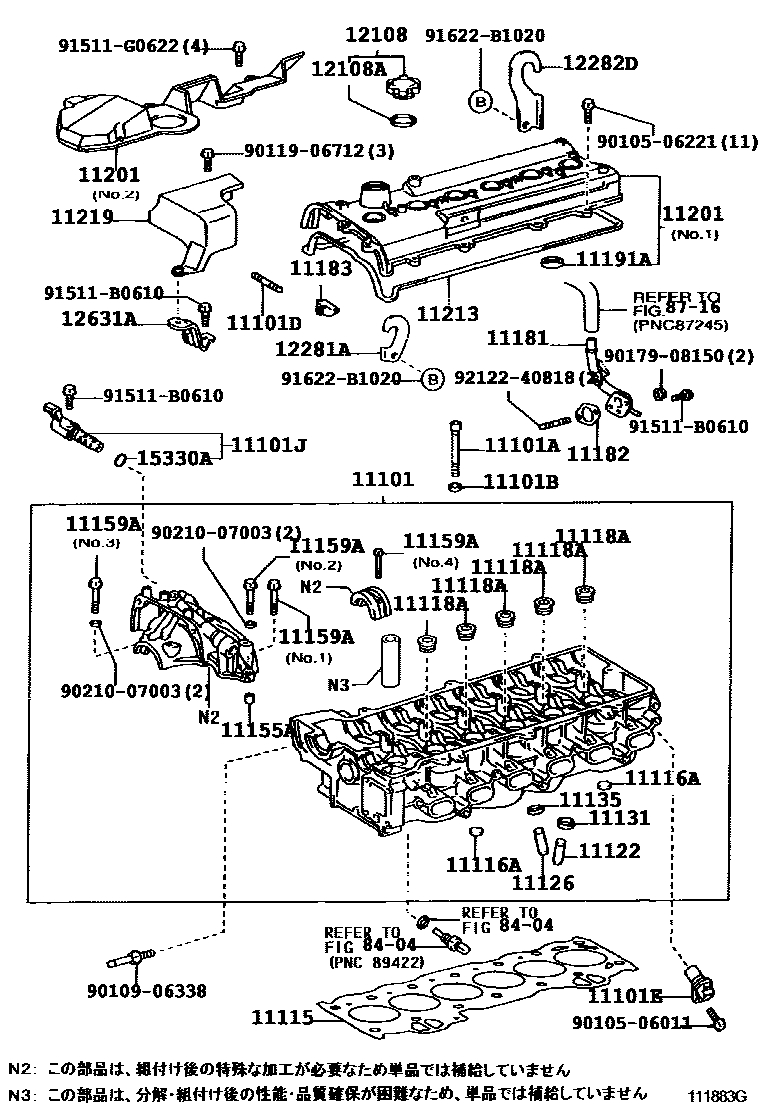

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
sub11101-49446
11101ABOLT(FOR CYLINDER HEAD SET)
11101DBOLT, STUD(FOR WATER OUTLET)
11101ESENSOR, CAM POSITION
11116APLUG, TIGHT, NO.1
11118APLUG, STRAIGHT, NO.1
11122BUSH, INTAKE VALVE GUIDE
11131SEAT, INTAKE VALVE
11135SEAT, EXHAUST VALVE
11155APIN, RING W/HEAD
11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
11181PLATE, CYLINDER HEAD, REAR
11182GASKET, CYLINDER HEAD REAR PLATE
11183PLUG, SEMICIRCULAR
11191AGASKET(FOR SPARK PLUG TUBE)
11201COVER SUB-ASSY, CYLINDER HEAD
11213GASKET, CYLINDER HEAD COVER
11219COVER, CYLINDER HEAD, NO.3
12108CAP SUB-ASSY, OIL FILLER
12108AGASKET(FOR OIL FILLER CAP)
12281AHANGER, ENGINE, NO.1
15330ARING, O(FOR CAM TIMING OIL CONTROL VALVE)
8404
8716
9010506011
main90105-06011
9010506221
main90105-06221
9010906338
main90109-06338
9011906712
main90119-06712
9017908150
main90179-08150
9021007003
main90210-07003
91511B0610
main91511-B0610
91511G0622
main91511-G0622
91622B1020
main91622-B1020
9212240818
main92122-40818
40 parts on this diagram · 3 diagrams in section
