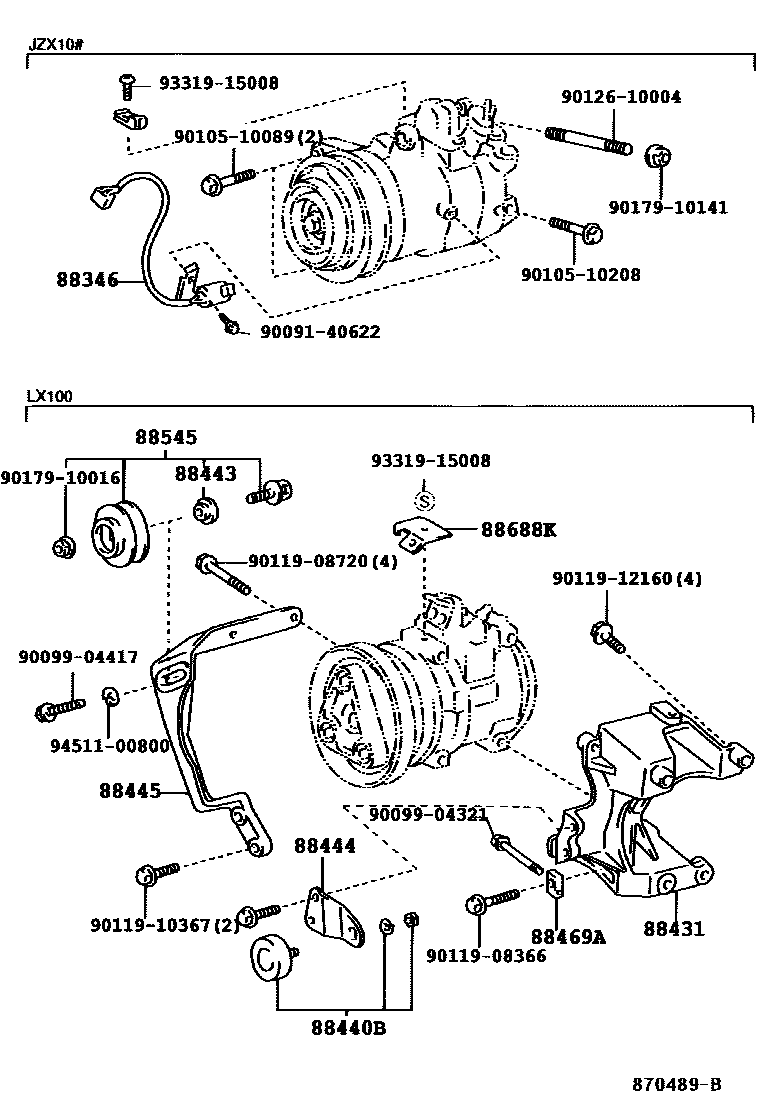

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1

88346SENSOR,COMPRESSOR

main88346-2A010iJZX10#199609-200106

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-22331iLX100199609-199908

main88431-22350iGX10#199808-200106

main88431-24060iGX100199609-199808

88440BPULLEY ASSY, IDLE

main88440-20170iGX10#199808-200106

main88440-26070iLX100199609-199908

main88440-26100iGX100199609-199808

88443COLLAR, IDLE PULLEY

main88443-36010iGX100,LX100199609-199908

88444BRACKET, IDLE PULLEY

main88444-22100iLX100199609-199908

88445BRACKET, IDLE PULLEY

main88444-22110iLX100199609-199908

88469ACOLLAR, ADJUSTING

main88469-30280iLX100199609-199908

88545PULLEY ASSY, IDLE

main88440-22100iLX100199609-199908

88688KBRACKET, COOLER COMPRESSOR

main88688-2A120iGX100199609-199808

main88688-2D770iLX100199609-199908

9009140622

main90091-40622

9009904321

main90099-04321

9009904417

main90099-04417

9010510089

main90105-10089

9010510208

main90105-10208

9011908366

main90119-08366

9011908720

main90119-08720

9011910367

main90119-10367

9011912160

main90119-12160

9012610004

main90126-10004

9017910016

main90179-10016

9017910141

main90179-10141

9331915008

main93319-15008

9451100800

main94511-00800

23 parts on this diagram · 4 diagrams in section
