HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1 0004 1

1603

8714

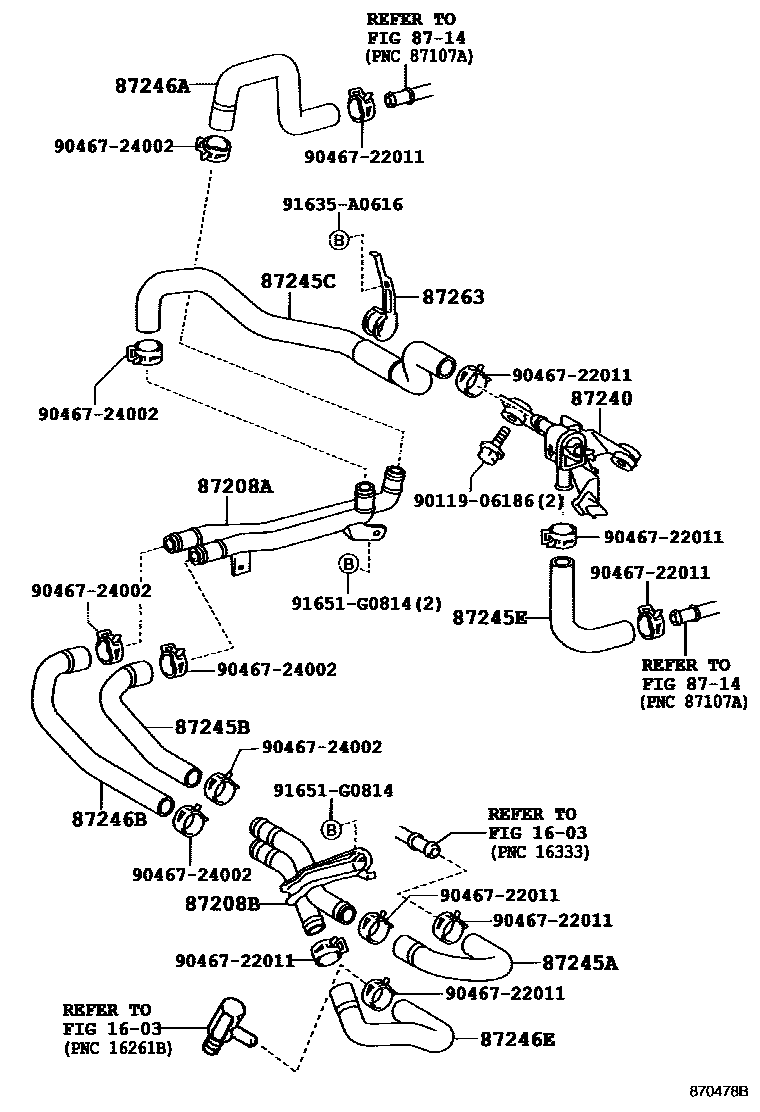

87208APIPE SUB-ASSY, HEATER WATER, A

main87208-22211iLX100199609-199908

87208BPIPE SUB-ASSY, HEATER WATER, B

main87208-89144iLX100199609-199908

87240VALVE ASSY, HEATER WATER

main87240-22370iGX10#,JZX10#,LX100199609-200106

87245AHOSE, HEATER WATER, INLET A

main87245-2A260iLX100199609-199908

main87245-2A570iJZX100..ROUG199609-200106

main87245-2A580iGX100199609-199808

main87245-2A640iJZX10#..EXC,EXCG,ROU,ROUS,SLT199609-200106

main87245-2A680iGX10#199808-200106

87245BHOSE, HEATER WATER, INLET B

main87245-2A320iLX100199609-199908

87245CHOSE, HEATER WATER ,INLET C

main87245-2A620iLX100199609-199908

87245EHOSE, HEATER WATER, INLET E

main87245-2A520iGX10#,JZX10#,LX100199609-200106

main87245-2A660iJZX100,105..EXC,EXCG,ROU,SLT199609-199808

sub87245-2A520

87246AHOSE, HEATER WATER, OUTLET A

main87245-2A510iJZX10#..EXC,EXCG,ROU,ROUS,SLT199609-200106

main87245-2A590iGX100199609-199808

main87245-2A630iLX100199609-199908

main87245-2A650iJZX100..ROUG199609-200106

main87245-2A690iGX10#199808-200106

87246BHOSE, HEATER WATER, OUTLET B

main87245-2A330iLX100199609-199908

87246EHOSE, HEATER WATER, OUTLET E

main87245-2A270iLX100199609-199908

87263BRACKET, HEATER WATER PIPE, NO.1

main87263-22140iLX100199609-199705

sub87263-22141

main87263-22141iLX100199705-199908

9011906186

main90119-06186

9046722011

main90467-22011

9046724002

main90467-24002

91635A0616

main91635-A0616

91651G0814

main91651-G0814

18 parts on this diagram · 4 diagrams in section
