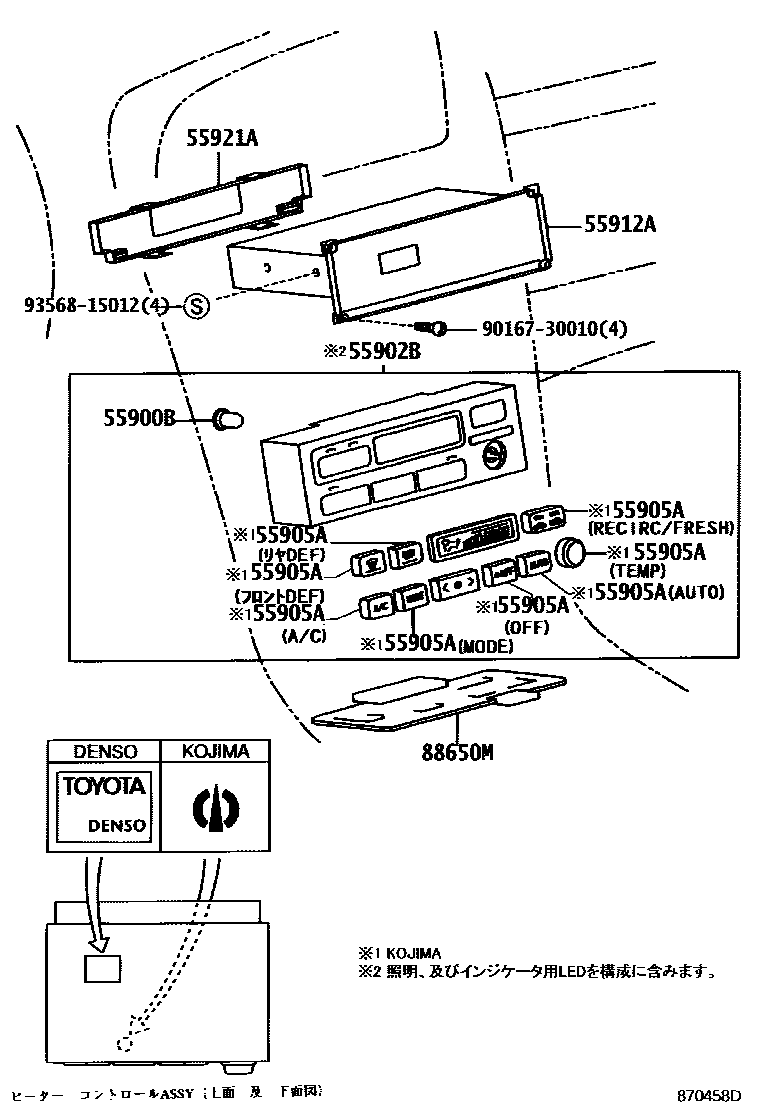

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1�-�����-� 0002 1�� ���� 0003 1�-����� ���(�-� �-���)

55900BBULB, AIR CONDITIONER CONTROL

main90010-03003iJZX10#..EXC,EXCG,SLT199609-200106

main90010-03004iJZX10#..EXC,EXCG,SLT199609-200106

main90010-03019iJZX100..ROUG,ROUS199808-200106

main90010-03020iJZX100..ROUG,ROUS199808-200106

main90010-05101iGX100,JZX10#,LX100199609-200106

main90010-05114iGX100..ROU199808-200106

55902BCONTROL SUB-ASSY, HEATER

main55902-22100iJZX100..ROUG,ROUS199808-200106

main55902-22110iJZX10#..EXC,EXCG,SLT199609-200106

main55902-22120iGX10#..EXC,SLT200105-200106

main55902-22120iGX10#,LX100..EXC,SC,SLT199609-200105

main55902-22130iJZX100..ROUG,ROUS199808-200106

main55902-22140iGX100..ROU200105-200106

main55902-22140iGX100..ROU199808-200105

main55902-33160iJZX10#199609-200106

55905AKNOB, HEATER CONTROL

main55905-22430iJZX10#199609-200106

TEMP,KOJIMA

sub55905-60170

main55905-30270iJZX10#199609-200106

TEMP,DENSO

main55905-60170iGX10#,LX100199609-200106

TEMP,KOJIMA

main55905-60180iGX10#,JZX10#,LX100199609-200106

A/C,KOJIMA

main55905-60190iGX10#,JZX10#,LX100199609-200106

FRONT DEF,KOJIMA

main55905-60200iGX10#,JZX10#,LX100199609-200106

REAR DEF,KOJIMA

main55905-60210iGX10#,JZX10#,LX100199609-200106

MODE,KOJIMA

main55905-60220iGX10#,JZX10#,LX100199609-200106

OFF,KOJIMA

main55905-60230iGX10#,JZX10#,LX100199609-200106

RECIRC/FRESH,KOJIMA

main55905-60240iGX10#,JZX10#,LX100199609-200106

AUTO,KOJIMA

55912AHOUSING, HEATER CONTROL

main55912-22020iJZX10#199609-200106

main55912-33020iJZX10#199609-200106

55921ARETAINER, HEATER CONTROL

main55912-33030iJZX10#199609-200106

main55921-22070iJZX10#199609-200106

88650MCOMPUTER ASSY, AIR CONDITIONER

main88650-22620iJZX10#199609-200106

main88650-22640iGX10#,LX100199609-200106

9016730010

main90167-30010

9356815012

main93568-15012

8 parts on this diagram · 3 diagrams in section
