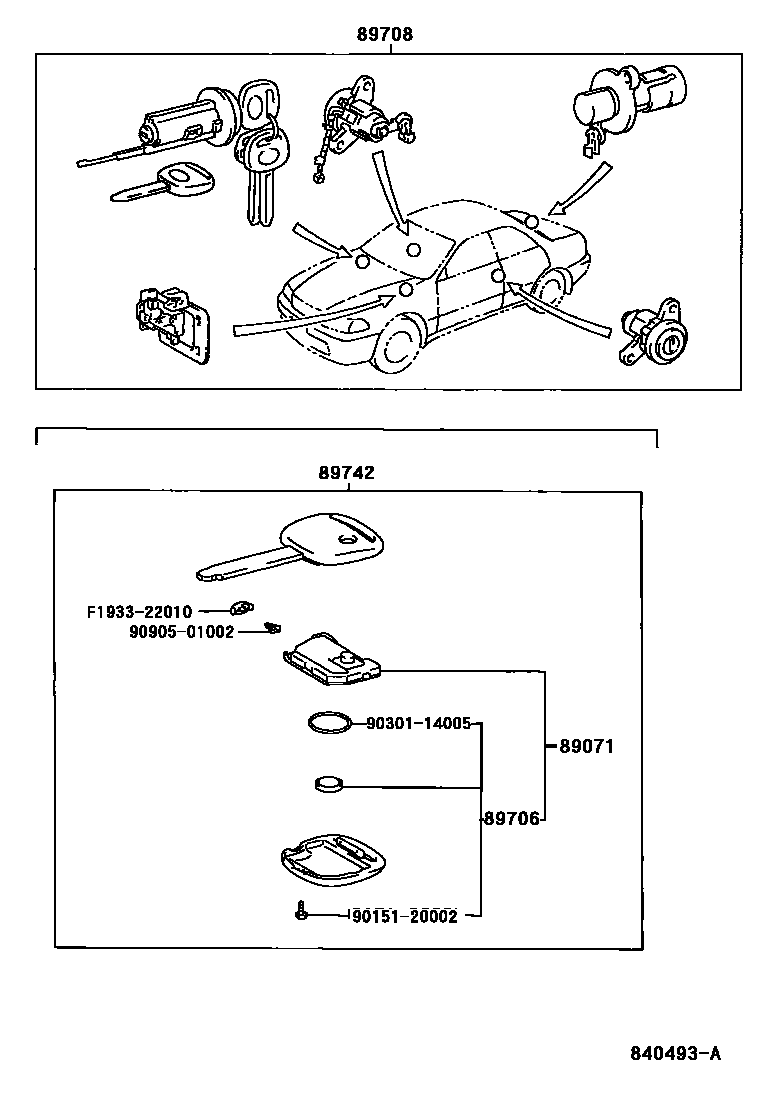

WIRELESS DOOR LOCK

0001 1 0002 1

89071MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL

main89071-22020iJZX100..EXC,EXCG,ROU,ROUG,SLT;GX10#,JZX101,105,LX100..EXC,EXCG,SLT199609-200106

89706BATTERY SET, TRANSMITTER

main89706-22020iJZX100..EXC,EXCG,ROU,ROUG,SLT;GX10#,JZX101,105,LX100..EXC,EXCG,SLT199609-200106

sub89745-22010

sub90151-20002

sub90301-14005

89708CYLINDER SET, WIRELESS DOOR LOCK

main89708-22170iGX100,JZX10#,LX100..EXC,EXCG,ROU,ROUG,SLT199609-199808

main89708-22171iGX10#,JZX10#,LX100..EXC,EXCG,ROUG,SLT199808-200106

89742TRANSMITTER, DOOR CONTROL

main89742-22120iJZX100..EXC,EXCG,ROU,ROUG,SLT;GX10#,JZX101,105,LX100..EXC,EXCG,SLT199609-200106

9015120002

main90151-20002

9030114005

main90301-14005

9090501002

main90905-01002

F193322010

mainF1933-22010

8 parts on this diagram · 2 diagrams in section
