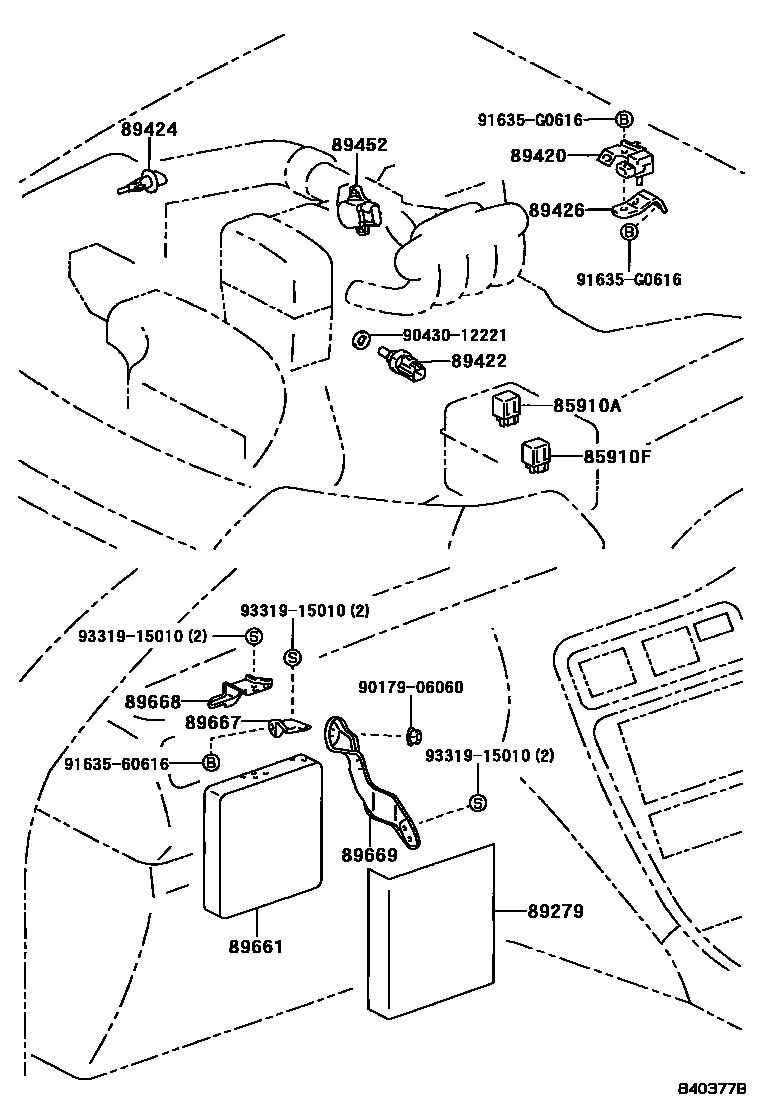

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1 0005 1

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-02012iGX10#,JZX10#199609-200106

85910FRELAY, COMPUTER (FOR EFI)

main90987-02012iGX10#,JZX10#199609-200106

89279COVER, ENGINE CONTROL COMPUTER

main89279-22030iGX10#,JZX10#199609-200106

89420SENSOR ASSY, VACUUM

main89420-22270iGX100199609-199808

main89421-20190iGX10#,JZX10#..EXC,EXCG,ROU,ROUS,SLT199808-200106

main89421-30100iJZX10#..EXC,EXCG,ROU,SLT199609-199808

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-16010iGX10#199808-200106

main89422-20010iGX100,JZX10#..EXC,EXCG,ROU,SLT199609-200106

main89422-35010iJZX100..ROUG199609-200106

89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)

main89424-12010iGX10#,JZX10#..EXC,EXCG,ROU,ROUS,SLT199609-200106

89426BRACKET, VACUUM SENSOR

main89426-22190iGX100199609-199808

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-20130iJZX100,105..EXC,EXCG,ROU,SLT199609-200106

main89452-22070iGX10#199808-200106

main89452-22090iGX100,JZX101199609-199808

main89452-24020iJZX100..ROUG199609-200106

main89452-30140iJZX100..EXC,EXCG,SLT199808-200106

main89452-30150iJZX101199808-200106

89661COMPUTER, ENGINE CONTROL

main89661-22740iJZX100..EXC,EXCG,SLT199609-199808

main89661-22750iJZX105199609-199808

main89661-22760iJZX100..ROU199609-199808

main89661-22770iJZX101199609-199708

main89661-22771iJZX101199708-199808

main89661-22800iJZX100..ROUG199609-199808

main89661-22810iGX100..MTM199609-199808

main89661-22820iGX100..ATM199609-199808

main89661-22850iGX100..EXC,SLT199808-200106

main89661-22860iGX100..ROU199808-200106

main89661-22870iGX105199808-200106

main89661-22880iJZX100..EXC,EXCG,SLT199808-200012

main89661-22881iJZX100..EXC,EXCG,SLT200012-200105

sub89661-2A200

main89661-22890iJZX100..ROUS199808-200012

main89661-2A010iJZX100..EXC,EXCG,SLT199808-200012

main89661-2A011iJZX100..EXC,EXCG,SLT200012-200105

sub89661-2A180

main89661-2A020iJZX105199808-200012

main89661-2A021iJZX105200012-200105

sub89661-2A190

main89661-2A030iJZX101199808-200106

main89661-2A040iJZX100..ROUS199808-200012

main89661-2A041iJZX100..ROUS200012-200105

sub89661-2A220

main89661-2A050iJZX100..ROUG199808-200106

main89661-2A180iJZX100..EXC,EXCG,SLT200101-200105

main89661-2A180iJZX100..EXC,EXCG,SLT200105-200106

main89661-2A190iJZX105200105-200106

main89661-2A200iJZX100..EXC,EXCG,SLT200105-200106

main89661-2A210iJZX100..ROUS200101-200106

main89661-2A220iJZX100..ROUS200105-200106

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-22130iGX10#,JZX10#199609-200106

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-22170iGX10#,JZX10#199609-200106

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-22200iGX10#,JZX10#199609-200106

9017906060

main90179-06060

9043012221

main90430-12221

9163560616

main91635-60616

91635G0616

main91635-G0616

9331915010

main93319-15010

17 parts on this diagram · 5 diagrams in section
