WIRING & CLAMP

0001 1����� �-� ��� 0002 1������-� ��� 0003 1����� ��� 0004 1����� ��� 0005 1����� ��� 0006 1����� ��� 0007 1����� ��� 0008 1��� ��� 0009 1������������ ��� 0010 1�-� & ��� ��� 0011 1�-�,��� & ����-���-� ��� 0012 1�-��� ����� 0013 1����� ����� 0014 1����

5503

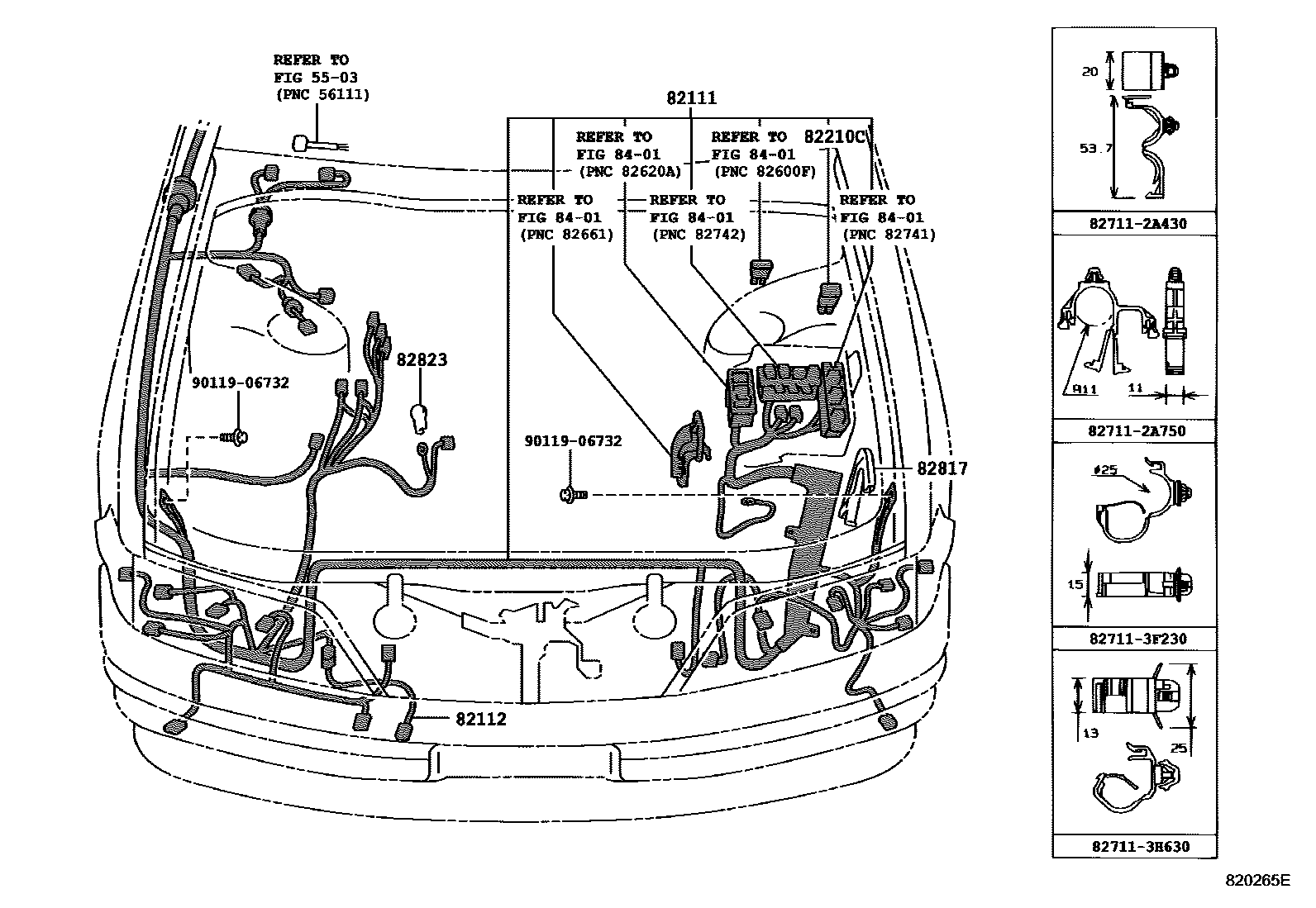

82111WIRE, ENGINE ROOM MAIN

main82111-2C270iJZX101199609-199808

main82111-2C280iJZX101199609-199808

main82111-2C310iJZX100..ROUG199609-199808

main82111-2C320iJZX100..EXCG199609-199808

main82111-2C330iJZX100..EXCG199609-199808

main82111-2C340iJZX105199609-199808

main82111-2C350iJZX100..ROU199609-199808

main82111-2C360iJZX100..EXC,SLT199609-199808

main82111-2C370iGX100199609-199808

main82111-2C380iGX100199609-199808

main82111-2C390iLX100199609-199808

main82111-2C560iJZX101199808-200106

main82111-2C570iJZX100..ROUG199808-200106

main82111-2C580iJZX100..EXCG199808-200106

main82111-2C590iJZX100..EXCG199808-200106

main82111-2C600iJZX100..EXC,SLT199808-200106

main82111-2C610iJZX100..SLT199907-200003

main82111-2C610iJZX100..EXC200012-200106

main82111-2C610iJZX100..EXC200004-200012

main82111-2C610iJZX100..ROUS199808-200106

main82111-2C620iJZX100..EXC,SLT199808-200106

main82111-2C630iGX100..EXC,SLT199808-200106

main82111-2C640iGX100..EXC,SLT199808-200106

main82111-2C650iGX105199808-200106

main82111-2C660iLX100199808-199908

main82111-2C670iJZX105199808-200106

main82111-2C680iJZX100..EXC,SLT199808-200106

main82111-2C690iGX100..EXC199901-199907

main82111-2C690iGX100..SLT199907-200003

main82111-2C690iGX100..EXC200004-200012

main82111-2C690iGX100..ROU199808-200106

main82111-2C690iGX100..EXC200012-200106

main82111-2C860iGX105200004-200012

main82111-2C860iGX105199901-199907

main82111-2C860iGX105199907-200003

main82111-2C860iGX105200012-200106

82112WIRE, ENGINE ROOM, NO.2

main82112-22090iJZX101;JZX100..ROUG199609-200106

82210CFUSIBLE LINK

main90982-08202iGX10#,JZX10#,LX100199609-200106

main90982-08246iGX10#,JZX100,105,LX100..EXC,ROU,SLT199609-200106

main90982-08254iJZX100,101199609-200106

main90982-08274iJZX10#199609-200106

main90982-08283iGX100,JZX10#199802-200106

main90982-08284iGX10#,JZX10#,LX100199802-200106

main90982-08284iGX100,JZX10#,LX100199802-199808

main90982-08285iGX10#,JZX10#,LX100199802-200106

main90982-08287iGX100,JZX10#,LX100199609-199803

sub90982-08283

main90982-08287iGX10#,JZX10#,LX100199808-199810

sub90982-08283

main90982-08288iJZX101199609-199810

sub90982-08284

main90982-08288iGX100,JZX10#,LX100199609-199803

sub90982-08284

main90982-08289iGX10#,JZX10#,LX100199609-199810

sub90982-08285

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-2A300iGX10#,JZX10#,LX100199609-200106

82823CAP, TERMINAL, NO.1

main82823-22050iGX10#,LX100199609-200106

main82823-24030iJZX10#199609-200106

8401

827112A430WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2A430

827112A750WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2A750

827113F230WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3F230

827113H630WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3H630

9011906732

main90119-06732

12 parts on this diagram · 14 diagrams in section
