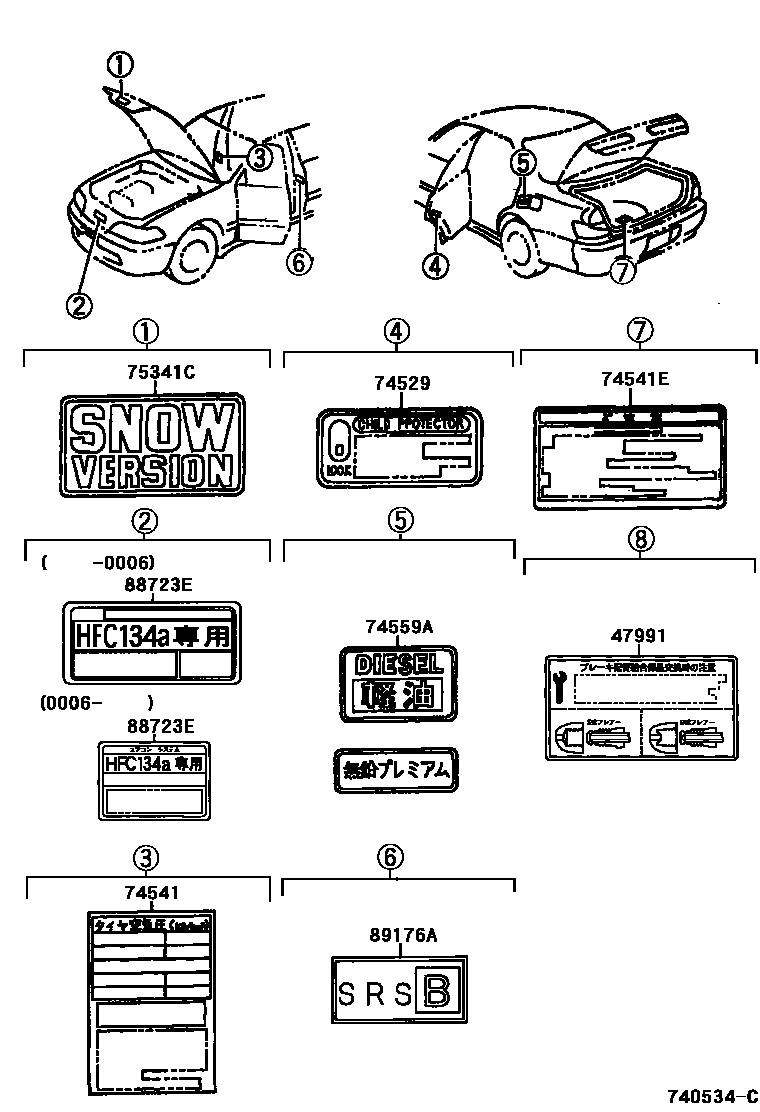

CAUTION PLATE (EXTERIOR & INTERIOR)

0001 1 0002 1

47991LABEL, BRAKE TUBE INFORMATION

main47991-13010iGX10#,JZX10#199908

74529PLATE, CHILD PROOF OR CHILD PROTECTOR LOCK CAUTION

main69339-12010iGX10#,JZX10#,LX100199609-200106

74541PLATE, TIRE PRESSURE CAUTION

main42661-22730iJZX101199609-200003

sub42661-22731

sub42668-30010

main42661-22731iJZX101200003-200106

main42661-22740iGX100,LX100199609-199808

main42661-22750iJZX100..ROUG199609-200003

sub42661-22751

sub42668-30010

main42661-22751iJZX100..ROUG200003-200106

main42661-22760iJZX100..ROU,ROUS199609-200003

sub42661-22761

sub42668-30010

main42661-22761iJZX100..ROUS200003-200106

main42661-22790iGX105,JZX105199609-200003

sub42661-22791

sub42668-30010

main42661-22791iGX105,JZX105200003-200106

main42661-22800iJZX100..EXC,EXCG,SLT199609-200003

sub42661-22801

sub42668-30010

main42661-22801iJZX100..EXC,EXCG,SLT200003-200106

main42661-22810iGX100..ROU199808-200003

sub42661-22811

sub42668-30010

main42661-22811iGX100..ROU200003-200106

main42661-22820iGX100..EXC,SLT199808-200003

sub42661-22821

sub42668-30010

main42661-22821iGX100..EXC,SLT200003-200106

main42661-22830iLX100199808-199908

main42661-22850iJZX100..EXC,EXCG,SLT199808-200003

sub42661-22851

sub42668-30010

main42661-22851iJZX100..EXC,EXCG,SLT200003-200106

74541EPLATE, COMPACT SPARE TIRE CAUTION

main42668-30010iGX10#,JZX10#..EXC,EXCG,ROU,ROUS,SLT200003-200106

main42668-40010iGX100,JZX100,105,LX100..EXC,EXCG,ROU,SC,SLT199609-200003

74559APLATE, FUEL CAUTION

main74559-14030iLX100199609-199908

main74579-24010iJZX10#199609-200106

75341CPLATE, HOOD NAME

main75341-20060iGX10#,JZX10#,LX100199609-200106

88723ELABEL, COOLER SERVICE CAUTION

main88723-20030iGX100,JZX100,105,LX100..EXC,EXCG,ROU,SC,SLT199609-199908

sub88733-30040

main88723-22060iJZX101;JZX100..ROUG199609-200006

main88723-42050iGX10#,JZX10#200006-200106

sub88733-51010

89176ALABEL, AIRBAG DEPLOYMENT INFORMATION

main89176-51010iGX10#,JZX10#,LX100199808-200106

8 parts on this diagram · 2 diagrams in section
