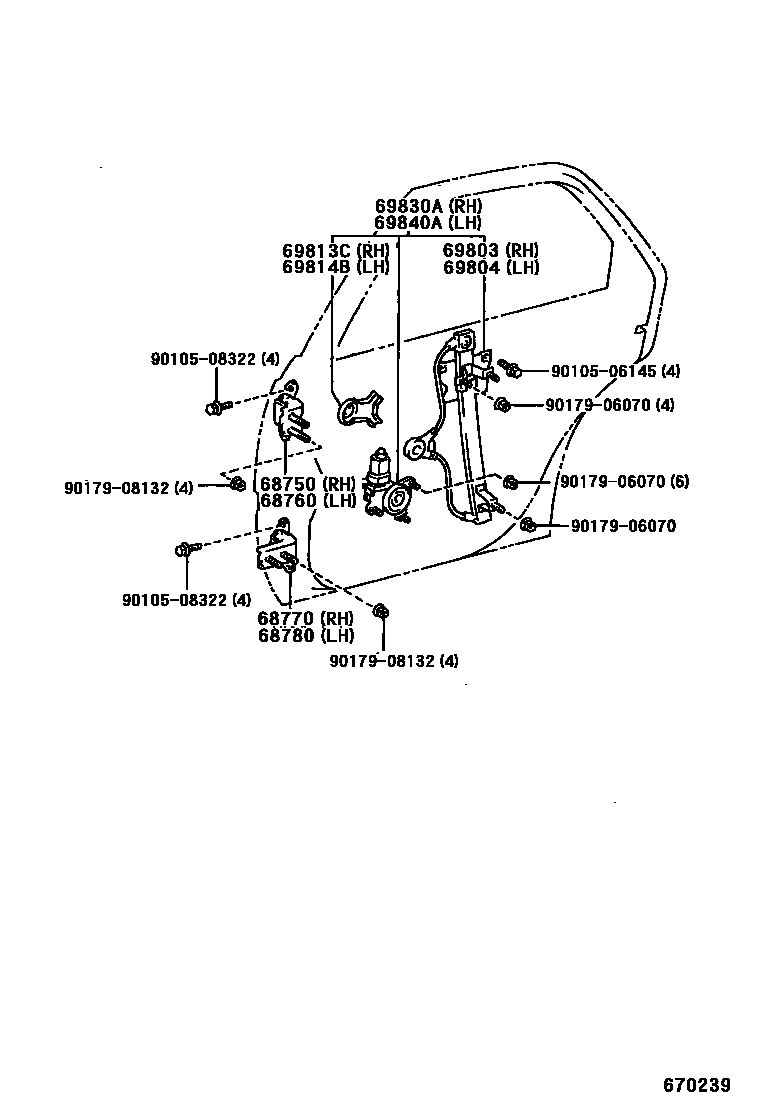

REAR DOOR WINDOW REGULATOR & HINGE

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-22050iGX10#,JZX10#,LX100199609-200106

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-22040iGX10#,JZX10#,LX100199609-200106

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-33010iGX10#,JZX10#,LX100199609-200106

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-33010iGX10#,JZX10#,LX100199609-200106

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-22190iGX10#,JZX10#,LX100199609-200106

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-22190iGX10#,JZX10#,LX100199609-200106

69813CPLATE, REAR DOOR POWER WINDOW REGULATOR BASE

main69811-22120iGX10#,JZX10#,LX100199609-200106

69814BPLATE, REAR DOOR WINDOW REGULATOR BASE, LH

main69812-22030iGX10#,JZX10#,LX100199609-200106

69830AREGULATOR ASSY, REAR DOOR WINDOW, RH

main69830-22360iGX100,JZX10#,LX100199609-199808

sub69830-22361

main69830-22361iGX10#,JZX10#,LX100199808-200106

69840AREGULATOR ASSY, REAR DOOR WINDOW, LH

main69840-22360iGX100,JZX10#,LX100199609-199808

sub69840-22361

main69840-22361iGX10#,JZX10#,LX100199808-200106

9010506145

main90105-06145

9010508322

main90105-08322

9017906070

main90179-06070

9017908132

main90179-08132

14 parts on this diagram · 1 diagram in section
