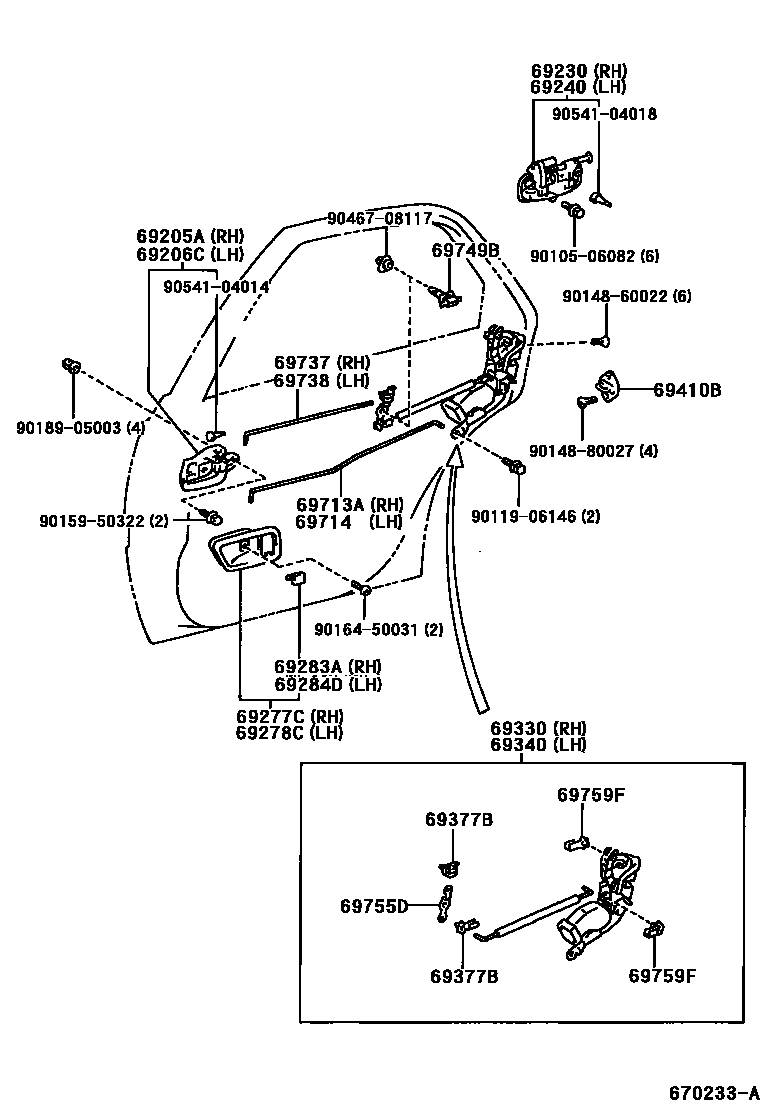

REAR DOOR LOCK & HANDLE

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69205-22080-B0iJZX100..ROU,ROUG199609-199808

DK.BLUE GRAY,TRIM1#

sub69205-22080

main69205-22080-C0iGX100,JZX100..ROU,ROUG,ROUS199808-200106

BLACK,TRIM2#

sub69205-22080

main69205-22080-E0iGX10#,JZX10#,LX100..EXC,EXCG,SLT199609-200106

ORCHID BROWN,TRIM4#

sub69205-22080

main69205-22080-G0iGX10#,JZX10#,LX100..EXC,EXCG,SC,SLT199609-200106

DK.SAGE,TRIM6#

sub69205-22080

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69206-22080-B0iJZX100..ROU,ROUG199609-199808

DK.BLUE GRAY,TRIM1#

sub69206-22080

sub69206-30120

main69206-22080-C0iGX100,JZX100..ROU,ROUG,ROUS199808-200106

BLACK,TRIM2#

sub69206-22080

sub69206-30120

main69206-22080-E0iGX10#,JZX10#,LX100..EXC,EXCG,SLT199609-200106

ORCHID BROWN,TRIM4#

sub69206-22080

sub69206-30120

main69206-22080-G0iGX10#,JZX10#,LX100..EXC,EXCG,SC,SLT199609-200106

DK.SAGE,TRIM6#

sub69206-22080

sub69206-30120

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69230-22110-A0iGX10#,JZX10#,LX100199609-200106

SUPER WHITE 2,040

main69230-22110-A1iGX10#,JZX10#,LX100199808-200106

WHITE PM.,057 ,2CF

main69230-22110-A1iGX100,JZX10#,LX100..EXC,EXCG,ROU,ROUG,SLT199609-199808

WHITE PM.,057 ,2CG

main69230-22110-A3iGX10#,JZX100..SLT199907-200003

main69230-22110-A3iGX105;GX100,JZX100..EXC200004

main69230-22110-A3iGX105;GX100,JZX100..EXC200012-200106

main69230-22110-A3iGX105;GX100..EXC199901-199907

main69230-22110-B0iGX100,JZX10#,LX100199609-199708

SILVER ME,199

main69230-22110-B1iGX100,JZX100..ATM..SLT199804-199808

main69230-22110-B1iGX10#,JZX10#,LX100199708-200106

SILVER ME.,1C0

main69230-22110-C0iGX100,JZX10#,LX100199704-199808

BLACK ME,205

main69230-22110-C0iGX100..ATM..SLT199708-199709

main69230-22110-C1iGX100..ROU200002-200004

BLACK,202

main69230-22110-D0iGX100,JZX10#,LX100..EXC,EXCG,ROU,ROUG,SLT199609-199808

WINE RED MC.,3L4

main69230-22110-G0iGX100,JZX10#,LX100199609-199708

GRAYISH GREEN M.M.,6N0

main69230-22110-G1iGX10#,JZX10#,LX100199808-200106

DK.GREEN MC.P.I.O.,2FF ,6N9

main69230-22110-J0iGX10#,JZX10#,LX100..EXC,EXCG,ROU,ROUG,ROUS,SLT199609-200106

DK.BLUE MC.,8L4

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69240-22110-A0iGX10#,JZX10#,LX100199609-200106

SUPER WHITE 2,040

main69240-22110-A1iGX10#,JZX10#,LX100199808-200106

WHITE PM.,057 ,2CF

main69240-22110-A1iGX100,JZX10#,LX100..EXC,EXCG,ROU,ROUG,SLT199609-199808

WHITE PM.,057 ,2CG

main69240-22110-A3iGX10#,JZX100..SLT199907-200003

main69240-22110-A3iGX105;GX100,JZX100..EXC200012-200106

main69240-22110-A3iGX105;GX100,JZX100..EXC200004

main69240-22110-A3iGX105;GX100..EXC199901-199907

main69240-22110-B0iGX100,JZX10#,LX100199609-199708

SILVER ME,199

main69240-22110-B1iGX10#,JZX10#,LX100199708-200106

SILVER ME.,1C0

main69240-22110-B1iGX100,JZX100..ATM..SLT199804-199808

main69240-22110-C0iGX100,JZX10#,LX100199704-199808

BLACK ME,205

main69240-22110-C0iGX100..ATM..SLT199708-199709

main69240-22110-C1iGX100..ROU200002-200004

BLACK,202

main69240-22110-D0iGX100,JZX10#,LX100..EXC,EXCG,ROU,ROUG,SLT199609-199808

WINE RED MC.,3L4

main69240-22110-G0iGX100,JZX10#,LX100199609-199708

GRAYISH GREEN M.M.,6N0

main69240-22110-G1iGX10#,JZX10#,LX100199808-200106

DK.GREEN MC.P.I.O.,2FF ,6N9

main69240-22110-J0iGX10#,JZX10#,LX100..EXC,EXCG,ROU,ROUG,ROUS,SLT199609-200106

DK.BLUE MC.,8L4

69277CBEZEL, REAR DOOR INSIDE HANDLE, RH

main69277-22090-B0iJZX100..ROU,ROUG199609-199808

DK.BLUE GRAY,TRIM1#

sub69277-22090

main69277-22090-C0iGX100,JZX100..ROU,ROUG,ROUS199808-200106

BLACK,TRIM2#

sub69277-22090

main69277-22090-E0iGX10#,JZX10#,LX100..EXC,EXCG,SLT199609-200106

ORCHID BROWN,TRIM4#

sub69277-22090

main69277-22090-G0iGX10#,JZX10#,LX100..EXC,EXCG,SC,SLT199609-200106

DK.SAGE,TRIM6#

sub69277-22090

69278CBEZEL, REAR DOOR INSIDE HANDLE, LH

main69278-22050-B0iJZX100..ROU,ROUG199609-199808

DK.BLUE GRAY,TRIM1#

sub69278-22050

main69278-22050-C0iGX100,JZX100..ROU,ROUG,ROUS199808-200106

BLACK,TRIM2#

sub69278-22050

main69278-22050-E0iGX10#,JZX10#,LX100..EXC,EXCG,SLT199609-200106

ORCHID BROWN,TRIM4#

sub69278-22050

main69278-22050-G0iGX10#,JZX10#,LX100..EXC,EXCG,SC,SLT199609-200106

DK.SAGE,TRIM6#

sub69278-22050

69283APLUG, REAR DOOR INSIDE HANDLE BEZEL, RH

main69283-30040-B0iJZX100..ROU,ROUG199609-199808

DK.BLUE GRAY,TRIM1#

sub69283-30040

main69283-30040-C0iGX100,JZX100..ROU,ROUG,ROUS199808-200106

BLACK,TRIM2#

sub69283-30040

main69283-30040-E1iGX10#,JZX10#,LX100..EXC,EXCG,SLT199609-200106

ORCHID BROWN,TRIM4#

sub69283-30040

main69283-30040-G0iGX10#,JZX10#,LX100..EXC,EXCG,SC,SLT199609-200106

DK.SAGE,TRIM6#

sub69283-30040

69284DPLUG, REAR DOOR INSIDE HANDLE BEZEL, LH

main69284-30040-B0iJZX100..ROU,ROUG199609-199808

DK.BLUE GRAY,TRIM1#

sub69284-30040

main69284-30040-C0iGX100,JZX100..ROU,ROUG,ROUS199808-200106

BLACK,TRIM2#

sub69284-30040

main69284-30040-E1iGX10#,JZX10#,LX100..EXC,EXCG,SLT199609-200106

ORCHID BROWN,TRIM4#

sub69284-30040

main69284-30040-G0iGX10#,JZX10#,LX100..EXC,EXCG,SC,SLT199609-200106

DK.SAGE,TRIM6#

sub69284-30040

69330LOCK ASSY, REAR DOOR, RH

main69050-22420iGX105;LX100..SC199609-200106

main69050-22430iJZX105199801-199808

main69050-22430iGX10#,JZX10#,LX100..EXC,EXCG,ROU,ROUG,ROUS,SLT199609-200106

69340LOCK ASSY, REAR DOOR, LH

main69060-22420iGX105;LX100..SC199609-200106

main69060-22430iJZX105199801-199808

main69060-22430iGX10#,JZX10#,LX100..EXC,EXCG,ROU,ROUG,ROUS,SLT199609-200106

69377BSNAP, REAR DOOR LOCK CONTROL ROD

main69759-24080iGX10#,JZX10#,LX100199609-200106

main69759-50040iGX10#,JZX10#,LX100199609-200106

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69410-87001iGX10#,JZX10#,LX100199609-200106

69713ALINK, REAR DOOR LOCK REMOTE CONTROL, RH

main69713-22150iGX10#,JZX10#,LX100199609-200106

69714LINK, REAR DOOR LOCK REMOTE CONTROL, LH

main69714-22150iGX10#,JZX10#,LX100199609-200106

69737LINK, REAR DOOR INSIDE LOCKING, RH

main69737-22170iGX10#,JZX10#,LX100199609-200106

69738LINK, REAR DOOR INSIDE LOCKING, LH

main69737-22170iGX10#,JZX10#,LX100199609-200106

69749BCLAMP, REAR DOOR LOCK LINK

main69749-32030iGX10#,JZX10#,LX100199609-200106

69755DBELLCRANK, REAR DOOR LOCKING CONTROL, FRONT

main69755-22050iGX10#,JZX10#,LX100199609-200106

69759FSNAP, REAR DOOR LOCK CONTROL LINK

main69759-24010iGX10#,JZX10#,LX100199609-200106

main69759-24020iGX10#,JZX10#,LX100199609-200106

main69759-24050iGX10#,JZX10#,LX100199609-200106

main69759-24060iGX10#,JZX10#,LX100199609-200106

9010506082

main90105-06082

9011906146

main90119-06146

9014860022

main90148-60022

9014880027

main90148-80027

9015950322

main90159-50322

9016450031

main90164-50031

9018905003

main90189-05003

9046708117

main90467-08117

9054104014

main90541-04014

9054104018

main90541-04018

29 parts on this diagram · 1 diagram in section
