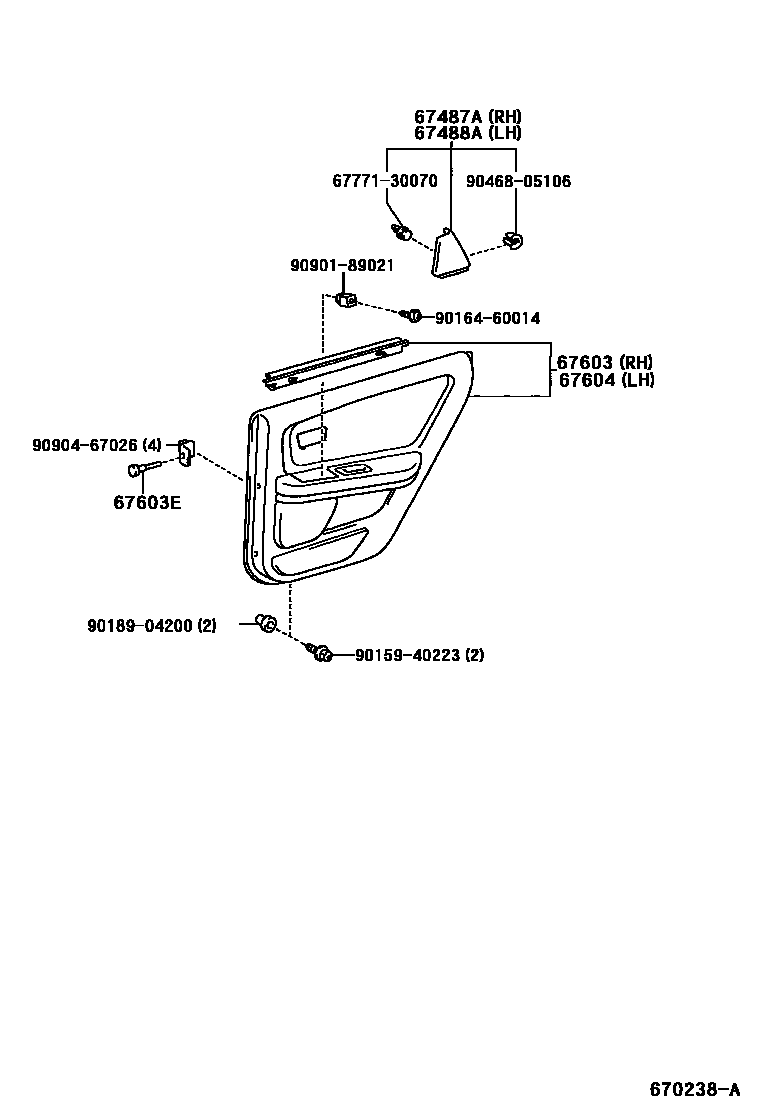

REAR DOOR PANEL & GLASS

0001 1 0002 1

67487AGARNISH, REAR DOOR REAR GUIDE BRACKET, RH

main67487-22060iGX10#,JZX10#,LX100199609-200106

67488AGARNISH, REAR DOOR REAR GUIDE BRACKET, LH

main67488-22060iGX10#,JZX10#,LX100199609-200106

67603BOARD SUB-ASSY, REAR DOOR TRIM, RH

main67010-22040-E0iGX10#,JZX100..SLT199907-200003

main67010-22060-E0iGX105;GX100,JZX100..EXC200004

main67010-22060-E0iGX105;GX100,JZX100..EXC200012-200106

main67630-2C230-G0iLX100..SC199609-199808

SAGE,TRIM6#

main67630-2C240-E0iGX100,JZX100,105,LX100..SLT199609-199808

ORCHID,TRIM4#

sub67630-2C240

main67630-2C240-E2iGX10#,JZX100,105,LX100..SLT199808-200106

sub67630-2C240

main67630-2C240-G0iGX100,JZX100,105,LX100..SLT199609-199808

SAGE,TRIM6#

sub67630-2C240

main67630-2C240-G2iGX10#,JZX100,105,LX100..SLT199808-200106

sub67630-2C240

main67630-2C250-E0iJZX105199609-199808

ORCHID,TRIM4#

main67630-2C250-E0iJZX105199609-199808

main67630-2C250-G0iGX100,JZX100,101..EXC,EXCG199609-199808

main67630-2C250-G0iJZX105199609-199808

SAGE,TRIM6#

main67630-2C260-B0iJZX100..ROU,ROUG199609-199808

DK. BLUE GRAY,TRIM1#

main67630-2C330-E0iJZX105;GX100,JZX100,101..EXC,EXCG199808-200106

main67630-2C330-G0iJZX105;GX100,JZX100,101..EXC,EXCG199808-200106

main67630-2C340-C0iGX100,JZX100..ROU,ROUG,ROUS199808-200106

67603ECLIP(FOR REAR DOOR TRIM BOARD)

main90467-07066-22iGX100,JZX100..ROU,ROUG,ROUS199808-200106

BLACK,TRIM2#

sub90467-07066

main90467-07066-B0iLX100..SC199609-199808

sub90467-07066

main90467-07066-B0iGX100,JZX10#,LX100..EXC,EXCG,SLT199609-199808

sub90467-07066

main90467-07066-B0iGX100,JZX10#,LX100..EXC,EXCG,SLT199609-199808

MEDIUM GRAY,TRIM6#

sub90467-07066

main90467-07066-B0iGX10#,JZX10#,LX100..EXC,EXCG,SLT199609-200106

MEDIUM GRAY,TRIM4#,6#

sub90467-07066

main90467-07066-B2iJZX100..ROU,ROUG199609-199808

DK.BLUE GRAY,TRIM1#

sub90467-07066

main90467-07066-E6iGX100,JZX10#,LX100..EXC,EXCG,SLT199609-199808

ORCHID,TRIM4#

sub90467-07066

main90467-07066-E6iGX100,JZX10#,LX100..EXC,EXCG,SLT199609-199808

sub90467-07066

main90467-07066-G3iGX100,JZX10#,LX100..EXC,EXCG,SC,SLT199609-199808

sub90467-07066

main90467-07066-G3iGX100,JZX10#,LX100..EXC,EXCG,SC,SLT199609-199808

SAGE,TRIM6#

sub90467-07066

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67020-22040-E0iGX10#,JZX100..SLT199907-200003

main67020-22070-E0iGX105;GX100,JZX100..EXC200004

main67020-22070-E0iGX105;GX100,JZX100..EXC200012-200106

main67640-2C220-G0iLX100..SC199609-199808

SAGE,TRIM6#

main67640-2C230-E0iGX100,JZX100,105,LX100..SLT199609-199808

ORCHID,TRIM4#

sub67640-2C230

main67640-2C230-E2iGX10#,JZX100,105,LX100..SLT199808-200106

sub67640-2C230

main67640-2C230-G0iGX100,JZX100,105,LX100..SLT199609-199808

SAGE,TRIM6#

sub67640-2C230

main67640-2C230-G2iGX10#,JZX100,105,LX100..SLT199808-200106

sub67640-2C230

main67640-2C240-E0iGX100,JZX100,101..EXC,EXCG199609-199808

main67640-2C240-E0iJZX105199609-199808

ORCHID,TRIM4#

main67640-2C240-G0iGX100,JZX100,101..EXC,EXCG199609-199808

SAGE,TRIM6#

main67640-2C240-G0iGX100,JZX100,101..EXC,EXCG199609-199808

main67640-2C250-B0iJZX100..ROU,ROUG199609-199808

DK. BLUE GRAY,TRIM1#

main67640-2C320-E0iJZX105;GX100,JZX100,101..EXC,EXCG199808-200106

main67640-2C320-G0iJZX105;GX100,JZX100,101..EXC,EXCG199808-200106

main67640-2C330-C0iGX100,JZX100..ROU,ROUG,ROUS199808-200106

6777130070WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-30070

9015940223

main90159-40223

9016460014

main90164-60014

9018904200

main90189-04200

9046805106

main90468-05106

9090189021

main90901-89021

9090467026

main90904-67026

12 parts on this diagram · 2 diagrams in section
