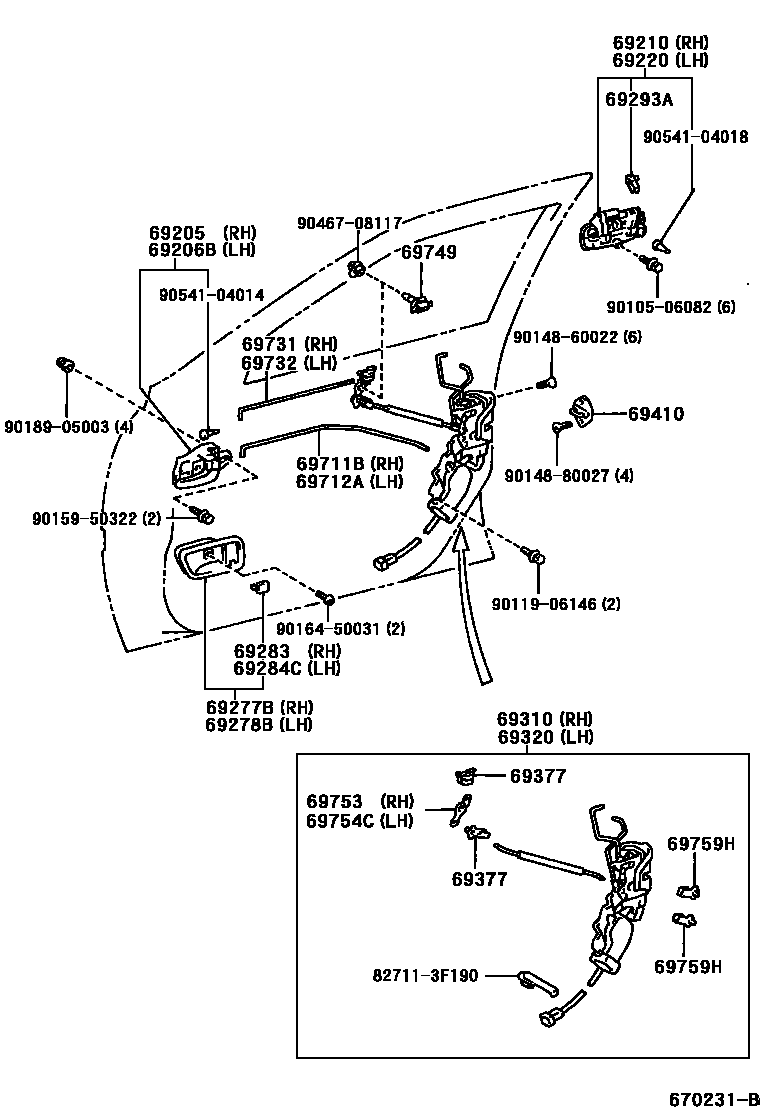

FRONT DOOR LOCK & HANDLE

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-22080-B0iJZX100..ROU,ROUG199609-199808

DK.BLUE GRAY,TRIM1#

sub69205-22080

main69205-22080-C0iGX100,JZX100..ROU,ROUG,ROUS199808-200106

BLACK,TRIM2#

sub69205-22080

main69205-22080-E0iGX10#,JZX10#,LX100..EXC,EXCG,SLT199609-200106

ORCHID BROWN,TRIM4#

sub69205-22080

main69205-22080-G0iGX10#,JZX10#,LX100..EXC,EXCG,SC,SLT199609-200106

DK.SAGE,TRIM6#

sub69205-22080

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-22080-B0iJZX100..ROU,ROUG199609-199808

DK.BLUE GRAY,TRIM1#

sub69206-22080

sub69206-30120

main69206-22080-C0iGX100,JZX100..ROU,ROUG,ROUS199808-200106

BLACK,TRIM2#

sub69206-22080

sub69206-30120

main69206-22080-E0iGX10#,JZX10#,LX100..EXC,EXCG,SLT199609-200106

ORCHID BROWN,TRIM4#

sub69206-22080

sub69206-30120

main69206-22080-G0iGX10#,JZX10#,LX100..EXC,EXCG,SC,SLT199609-200106

DK.SAGE,TRIM6#

sub69206-22080

sub69206-30120

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-22220-A0iGX10#,JZX10#,LX100199609-200106

SUPER WHITE 2,040

main69210-22220-A1iGX100,JZX10#,LX100..EXC,EXCG,ROU,ROUG,SLT199609-199808

WHITE PM.,057 ,2CG

main69210-22220-A1iGX10#,JZX10#,LX100199808-200106

WHITE PM.,057 ,2CF

main69210-22220-A3iGX10#,JZX100..SLT199907-200003

main69210-22220-A3iGX105;GX100,JZX100..EXC200004

main69210-22220-A3iGX105;GX100,JZX100..EXC200012-200106

main69210-22220-A3iGX105;GX100..EXC199901-199907

main69210-22220-B0iGX100,JZX10#,LX100199609-199708

SILVER ME,199

main69210-22220-B1iGX100,JZX100..ATM..SLT199804-199808

main69210-22220-B1iGX10#,JZX10#,LX100199708-200106

SILVER ME.,1C0

main69210-22220-C0iGX100,JZX10#,LX100199704-199808

BLACK ME,205

main69210-22220-C0iGX100..ATM..SLT199708-199709

main69210-22220-C1iGX100..ROU200002-200004

BLACK,202

main69210-22220-D0iGX100,JZX10#,LX100..EXC,EXCG,ROU,ROUG,SLT199609-199808

WINE RED MC.,3L4

main69210-22220-G0iGX100,JZX10#,LX100199609-199708

GRAYISH GREEN M.M.,6N0

main69210-22220-G1iGX10#,JZX10#,LX100199808-200106

DK.GREEN MC.P.I.O.,2FF ,6N9

main69210-22220-J0iGX10#,JZX10#,LX100..EXC,EXCG,ROU,ROUG,ROUS,SLT199609-200106

DK.BLUE MC.,8L4

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-22190-A0iGX10#,JZX10#,LX100199609-200106

SUPER WHITE 2,040

main69220-22190-A1iGX100,JZX10#,LX100..EXC,EXCG,ROU,ROUG,SLT199609-199808

WHITE PM.,057 ,2CG

main69220-22190-A1iGX10#,JZX10#,LX100199808-200106

WHITE PM.,057 ,2CF

main69220-22190-A4iGX105;GX100..EXC199901-199907

main69220-22190-A4iGX105;GX100,JZX100..EXC200004

main69220-22190-A4iGX105;GX100,JZX100..EXC200012-200106

main69220-22190-A4iGX10#,JZX100..SLT199907-200003

main69220-22190-B0iGX100,JZX10#,LX100199609-199708

SILVER ME,199

main69220-22190-B1iGX100,JZX100..ATM..SLT199804-199808

main69220-22190-B1iGX10#,JZX10#,LX100199708-200106

SILVER ME.,1C0

main69220-22190-C0iGX100..ATM..SLT199708-199709

main69220-22190-C0iGX100,JZX10#,LX100199704-199808

BLACK ME,205

main69220-22190-C1iGX100..ROU200002-200004

BLACK,202

main69220-22190-D0iGX100,JZX10#,LX100..EXC,EXCG,ROU,ROUG,SLT199609-199808

WINE RED MC.,3L4

main69220-22190-G0iGX100,JZX10#,LX100199609-199708

GRAYISH GREEN M.M.,6N0

main69220-22190-G1iGX10#,JZX10#,LX100199808-200106

DK.GREEN MC.P.I.O.,2FF ,6N9

main69220-22190-J0iGX10#,JZX10#,LX100..EXC,EXCG,ROU,ROUG,ROUS,SLT199609-200106

DK.BLUE MC.,8L4

69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH

main69277-22090-B0iJZX100..ROU,ROUG199609-199808

DK.BLUE GRAY,TRIM1#

sub69277-22090

main69277-22090-C0iGX100,JZX100..ROU,ROUG,ROUS199808-200106

BLACK,TRIM2#

sub69277-22090

main69277-22090-E0iGX10#,JZX10#,LX100..EXC,EXCG,SLT199609-200106

ORCHID BROWN,TRIM4#

sub69277-22090

main69277-22090-G0iGX10#,JZX10#,LX100..EXC,EXCG,SC,SLT199609-200106

DK.SAGE,TRIM6#

sub69277-22090

69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH

main69278-22050-B0iJZX100..ROU,ROUG199609-199808

DK.BLUE GRAY,TRIM1#

sub69278-22050

main69278-22050-C0iGX100,JZX100..ROU,ROUG,ROUS199808-200106

BLACK,TRIM2#

sub69278-22050

main69278-22050-E0iGX10#,JZX10#,LX100..EXC,EXCG,SLT199609-200106

ORCHID BROWN,TRIM4#

sub69278-22050

main69278-22050-G0iGX10#,JZX10#,LX100..EXC,EXCG,SC,SLT199609-200106

DK.SAGE,TRIM6#

sub69278-22050

69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH

main69283-30040-B0iJZX100..ROU,ROUG199609-199808

DK.BLUE GRAY,TRIM1#

sub69283-30040

main69283-30040-C0iGX100,JZX100..ROU,ROUG,ROUS199808-200106

BLACK,TRIM2#

sub69283-30040

main69283-30040-E1iGX10#,JZX10#,LX100..EXC,EXCG,SLT199609-200106

ORCHID BROWN,TRIM4#

sub69283-30040

main69283-30040-G0iGX10#,JZX10#,LX100..EXC,EXCG,SC,SLT199609-200106

DK.SAGE,TRIM6#

sub69283-30040

69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH

main69284-30040-B0iJZX100..ROU,ROUG199609-199808

DK.BLUE GRAY,TRIM1#

sub69284-30040

main69284-30040-C0iGX100,JZX100..ROU,ROUG,ROUS199808-200106

BLACK,TRIM2#

sub69284-30040

main69284-30040-E1iGX10#,JZX10#,LX100..EXC,EXCG,SLT199609-200106

ORCHID BROWN,TRIM4#

sub69284-30040

main69284-30040-G0iGX10#,JZX10#,LX100..EXC,EXCG,SC,SLT199609-200106

DK.SAGE,TRIM6#

sub69284-30040

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-12030iGX10#,JZX10#,LX100199609-200106

main69293-12040iGX10#,JZX10#,LX100199609-200106

69310LOCK ASSY, FRONT DOOR, RH

main69030-22420iGX10#,JZX10#,LX100199609-200106

69320LOCK ASSY, FRONT DOOR, LH

main69040-22540iJZX105199801-199808

main69040-22540iGX105;LX100..SC199609-200106

main69040-22550iGX10#,JZX10#,LX100..EXC,EXCG,ROU,ROUG,ROUS,SLT199609-200106

69377SNAP, FRONT DOOR LOCK CONTROL ROD

main69759-24080iGX10#,JZX10#,LX100..EXC,EXCG,ROU,ROUG,ROUS,SLT199609-200106

main69759-24080iGX105199808-200106

main69759-24090iGX10#,JZX10#,LX100199609-200106

main69759-50040iGX10#,JZX10#,LX100199609-200106

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-87001iGX10#,JZX10#,LX100199609-200106

69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH

main69711-22130iGX10#,JZX10#,LX100199609-200106

69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH

main69712-22130iGX10#,JZX10#,LX100199609-200106

69731LINK, FRONT DOOR INSIDE LOCKING, NO.1 RH

main69737-22160iGX10#,JZX10#,LX100199609-200106

69732LINK, FRONT DOOR INSIDE LOCKING, NO.1 LH

main69737-22160iGX10#,JZX10#,LX100199609-200106

69749CLAMP, FRONT DOOR LOCK LINK

main69749-32030iGX10#,JZX10#,LX100199609-200106

69753BELLCRANK, DOOR LOCK CONTROL, RH

main69753-22060iGX10#,JZX10#,LX100199609-200106

69754CBELLCRANK, DOOR LOCK CONTROL, LH

main69754-22030iGX10#,JZX10#,LX100199609-200106

69759HSNAP, DOOR LOCK CONTROL LINK, NO.2

main69759-24010iGX10#,JZX10#,LX100199609-200106

main69759-24020iGX10#,JZX10#,LX100199609-200106

main69759-24050iGX10#,JZX10#,LX100199609-200106

main69759-24060iGX10#,JZX10#,LX100199609-200106

main69759-24080iGX10#,JZX10#,LX100..EXC,EXCG,ROU,ROUG,ROUS,SLT199609-200106

main69759-24090iGX10#,JZX10#,LX100199609-200106

827113F190WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3F190

9010506082

main90105-06082

9011906146

main90119-06146

9014860022

main90148-60022

9014880027

main90148-80027

9015950322

main90159-50322

9016450031

main90164-50031

9018905003

main90189-05003

9046708117

main90467-08117

9054104014

main90541-04014

9054104018

main90541-04018

32 parts on this diagram · 1 diagram in section
