HOOD & FRONT FENDER

53183ISEAL, HEADLAMP COVER, RH

main53183-22110iGX10#,JZX10#,LX100199609-200106

53184GSEAL, HEADLAMP COVER, LH

main53184-22070iGX10#,JZX10#,LX100199609-200106

53291SEAL, RADIATOR SUPPORT TO FRAME, RH

main53291-22060iGX100..ROU200002-200004

main53291-22060iGX10#,JZX101,LX100..EXC,EXCG,SC,SLT199609-200106

main53291-22080iJZX100,105..EXC,EXCG,SLT199609-200106

main53291-22120iGX100,JZX100..ROU,ROUG,ROUS199609-200106

main53291-22120iGX105;GX100,JZX100..EXC200004

53292SEAL, RADIATOR SUPPORT TO FRAME, LH

main53292-22060iGX100..ROU200002-200004

main53292-22060iGX10#,JZX10#,LX100..EXC,EXCG,SC,SLT199609-200106

main53292-22120iGX105;GX100,JZX100..EXC200004

main53292-22120iGX100,JZX100..ROU,ROUG,ROUS199609-200106

53301HOOD SUB-ASSY

main53301-22360iGX100,JZX100,105,LX100199609-199801

sub53301-22361

main53301-22361iGX10#,JZX100,105,LX100199801-200106

main53301-22370iJZX101199609-199801

sub53301-22371

main53301-22371iJZX101199801-200106

53301BCUSHION, HOOD BUMPER

main90541-15015iGX10#,JZX10#,LX100199609-200106

53341BINSULATOR, HOOD

main53341-22110iGX100,JZX10#,LX100199609-199808

sub53341-22140

main53341-22140iGX10#,JZX10#,LX100199808-200106

53341CCLIP(FOR HOOD INSULATOR)

main90467-08124iGX10#,JZX10#,LX100199609-200106

53378CSEAL, HOOD AIR INTAKE DUCT

main53378-22030iGX10#,JZX10#,LX100199609-200106

53378DCLIP(FOR HOOD AIR INTAKE DUCT SEAL)

main90467-08027iGX10#,JZX10#,LX100199609-200106

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-22100iLX100199609-199908

main53381-22110iGX10#,JZX10#,LX100199609-200106

main53381-22140iLX100199609-199908

53382GSEAL, HOOD TO RADIATOR SUPPORT, LH

main53382-22020iLX100199609-199908

53801FENDER SUB-ASSY, FRONT RH

main53801-2A470iGX10#,JZX10#,LX100199609-200106

53802FENDER SUB-ASSY, FRONT LH

main53802-2A450iGX10#,JZX10#,LX100199609-200106

53831APANEL, FRONT FENDER SIDE, UPPER RH

main53831-22170iGX10#,JZX10#,LX100199609-200106

53832APANEL, FRONT FENDER SIDE, UPPER LH

main53832-22170iGX10#,JZX10#,LX100199609-200106

53835ABRACE, FRONT FENDER TO APRON, RH

main53835-22060iGX10#,JZX10#,LX100199609-200106

53836ABRACE, FRONT FENDER TO APRON, LH

main53836-22050iGX10#,JZX10#,LX100199609-200106

53875ALINER, FRONT FENDER, RH

main53875-22070iGX10#,JZX10#,LX100199609-200106

53876ALINER, FRONT FENDER, LH

main53876-22060iGX10#,JZX10#,LX100199609-200106

53882BSEAL, FRONT FENDER, RH

main53882-16030iGX10#,JZX10#,LX100199609-200106

53883BSEAL, FRONT FENDER, LH

main53882-16030iGX10#,JZX10#,LX100199609-200106

53895BSHIELD, FRONT FENDER SPLASH, FRONT RH

main53895-22110iGX100,JZX10#,LX100..EXC,EXCG,ROU,SC,SLT199609-199808

main53895-22120iJZX100..ROUG199609-199803

sub53895-22121

main53895-22121iJZX100..ROUG199803-200106

main53895-22150iGX10#,JZX10#,LX100..EXC,EXCG,ROU,ROUS,SLT199808-200106

53896BSHIELD, FRONT FENDER SPLASH, FRONT LH

main53896-22050iGX100,JZX10#,LX100199609-199808

main53896-22080iGX10#,JZX10#,LX100199808-200106

9015960323

main90159-60323

9015960444

main90159-60444

9015960496

main90159-60496

9018906005

main90189-06005

9018906065

main90189-06065

9018906066

main90189-06066

9046705114

main90467-05114

9046707166

main90467-07166

9046708011

main90467-08011

9046710018

main90467-10018

9095006072

main90950-06072

91635G0616

main91635-G0616

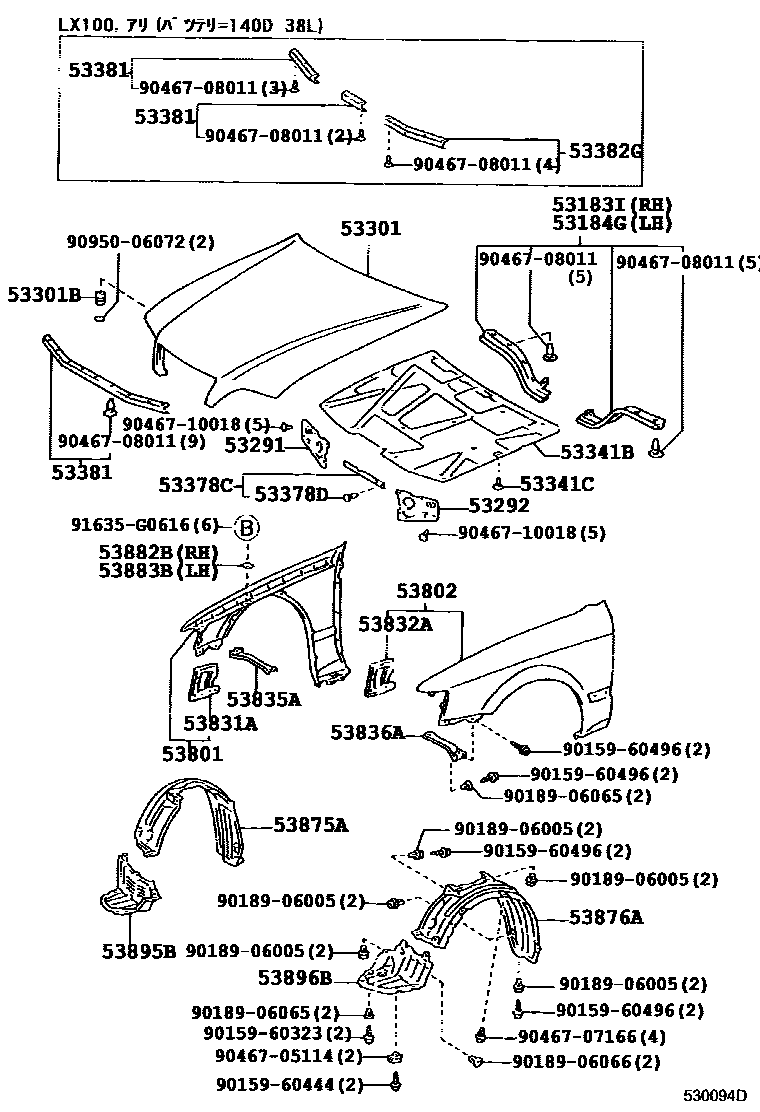

36 parts on this diagram · 1 diagram in section
