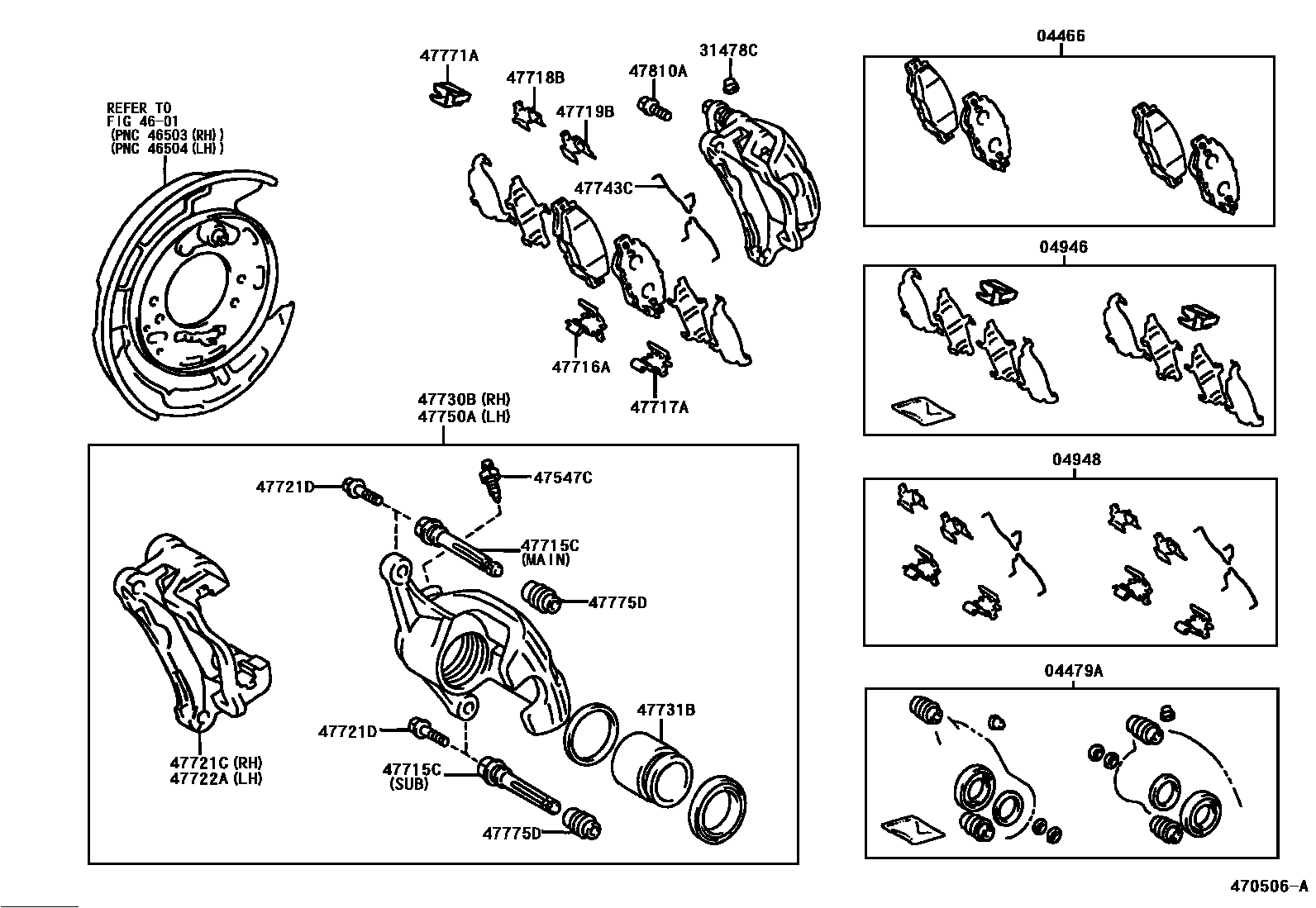

REAR DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04466PAD KIT, DISC BRAKE, REAR

main04466-22150iGX100,LX100;JZX100..ROUG199609-200106

main04466-22170iGX100,LX100199805-200106

main04466-30030iJZX10#..EXC,EXCG,ROU,SLT199609-199807

main04466-30140iGX105,JZX10#..EXC,EXCG,ROU,ROUS,SLT199807-200106

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-22120iJZX100..ROUG199609-200106

main04479-22130iGX100,LX100199609-200106

main04479-30200iGX105,JZX10#..EXC,EXCG,ROU,ROUS,SLT199609-200106

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-22071iGX100,LX100;JZX100..ROUG199609-200106

sub04946-22072

main04946-24010iGX105,JZX10#..EXC,EXCG,ROU,ROUS,SLT199609-200106

04948FITTING KIT, DISC BRAKE, REAR

main04948-22060iJZX100..ROUG199609-200106

main04948-22070iGX100,LX100199609-200106

main04948-30040iGX105,JZX10#..EXC,EXCG,ROU,ROUS,SLT199609-200106

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iGX10#,JZX10#,LX100199609-200106

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-27030iGX105,JZX10#..EXC,EXCG,ROU,ROUS,SLT199609-200106

main47547-35020iGX100,LX100;JZX100..ROUG199609-200106

47715CPIN, CYLINDER SLIDE(FOR REAR DISC BRAKE)

main47715-22070iGX105,JZX10#..EXC,EXCG,ROU,ROUS,SLT199609-200106

main47715-22080iGX105,JZX10#..EXC,EXCG,ROU,ROUS,SLT199609-200106

main47715-22110iGX100,LX100;JZX100..ROUG199609-200106

main47715-22120iGX100,LX100;JZX100..ROUG199609-200106

47716APLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)

main47716-22060iGX100,LX100;JZX100..ROUG199609-200106

main47716-30180iGX105,JZX10#..EXC,EXCG,ROU,ROUS,SLT199609-200106

47717APLATE, PAD SUPPORT, NO.2(FOR REAR DISC BRAKE)

main47716-30190iGX105,JZX10#..EXC,EXCG,ROU,ROUS,SLT199609-200106

main47717-22050iGX100,LX100;JZX100..ROUG199609-200106

47718BPLATE, PAD SUPPORT, NO.3(FOR REAR DISK BRAKE)

main47717-30090iGX105,JZX10#..EXC,EXCG,ROU,ROUS,SLT199609-200106

main47718-22040iGX100,LX100;JZX100..ROUG199609-200106

47719BPLATE, PAD SUPPORT, NO.4(FOR REAR DISK BRAKE)

main47717-30100iGX105,JZX10#..EXC,EXCG,ROU,ROUS,SLT199609-200106

main47719-22040iGX100,LX100;JZX100..ROUG199609-200106

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47721-22220iJZX100..ROUG199609-200106

main47721-22230iGX100,LX100199609-200106

main47721-30170iGX105,JZX10#..EXC,EXCG,ROU,ROUS,SLT199609-200106

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90105-08164iGX105,JZX10#..EXC,EXCG,ROU,ROUS,SLT199609-200106

main90105-08304iGX100,LX100;JZX100..ROUG199609-200106

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47721-22220iJZX100..ROUG199609-200106

main47721-22230iGX100,LX100199609-200106

main47722-30090iGX105,JZX10#..EXC,EXCG,ROU,ROUS,SLT199609-200106

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47730-22340iJZX100..ROUG199609-200106

main47730-22350iGX100,LX100199609-200106

main47730-30351iGX105,JZX10#..EXC,EXCG,ROU,ROUS,SLT199609-200106

47731BPISTON, REAR DISC BRAKE

main47731-22070iJZX100..ROUG199609-200106

main47731-22080iGX100,LX100199609-200106

main47731-30120iGX105,JZX10#..EXC,EXCG,ROU,ROUS,SLT199609-200106

47743CSPRING, ANTI-SQUEAL(FOR REAR DISC BRAKE)

main47743-22060iJZX100..ROUG199609-200106

main47743-22070iGX100,LX100199609-200106

main47743-30040iGX105,JZX10#..EXC,EXCG,ROU,ROUS,SLT199609-200106

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47750-22340iJZX100..ROUG199609-200106

main47750-22350iGX100,LX100199609-200106

main47750-30351iGX105,JZX10#..EXC,EXCG,ROU,ROUS,SLT199609-200106

47771APLATE, PAD WEAR INDICATOR(FOR REAR DISC BRAKE)

main47771-22070iGX100,LX100;JZX100..ROUG199609-200106

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47775-22070iGX100,LX100;JZX100..ROUG199609-200106

main47775-30070iGX105,JZX10#..EXC,EXCG,ROU,ROUS,SLT199609-200106

sub47775-50010

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90119-10206iGX10#,JZX10#,LX100199609-200106

22 parts on this diagram · 2 diagrams in section
