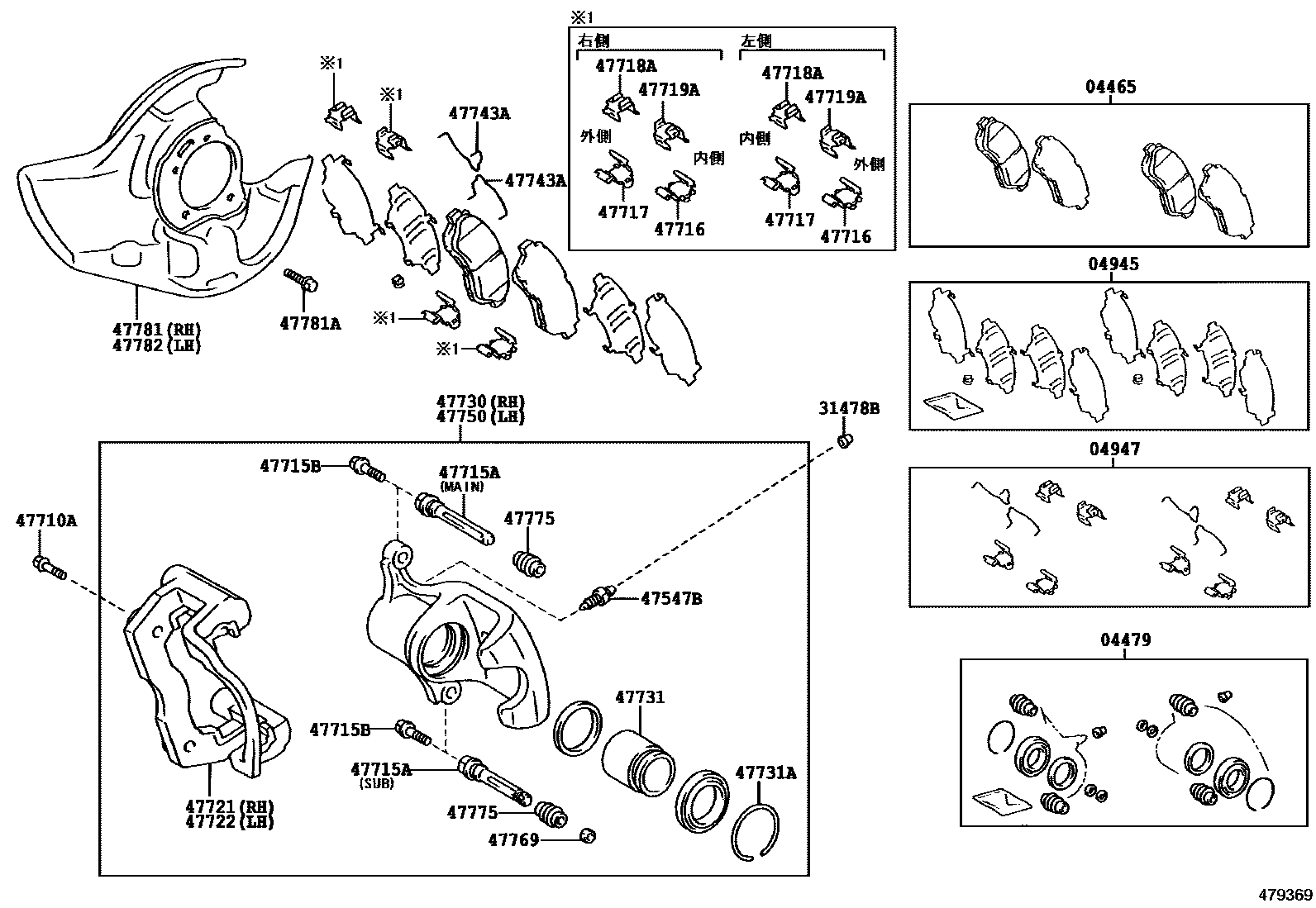

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0003 1 0004 1

04465PAD KIT, DISC BRAKE, FRONT

main04465-22300iGX100,LX100199808-200106

main04465-22310iJZX100..ROUG199609-199901

sub04465-22311

main04465-22311iJZX100..ROUG199901-200106

sub04465-22312

main04465-30080iGX105,JZX10#..EXC,EXCG,ROU,ROUS,SLT199609-200106

main04465-30240iGX100,LX100199609-199808

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-22090iJZX100..ROUG199609-200106

main04479-22100iGX105,JZX10#..EXC,EXCG,ROU,ROUS,SLT199609-200106

main04479-22140iGX100,LX100199808-200106

main04479-30210iGX100,LX100199609-199808

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-22010iGX100,LX100199609-199808

sub04945-22011

main04945-22140iGX100,LX100199808-200106

main04945-30110iJZX100..ROUG199609-199902

main04945-30140iJZX100..ROUG199903-200106

main04945-33020iGX105,JZX10#..EXC,EXCG,ROU,ROUS,SLT199609-200106

04947FITTING KIT, DISC BRAKE, FRONT

main04947-22021iGX100,LX100199609-199808

main04947-22060iGX100,LX100199808-200106

main04947-30090iJZX100..ROUG199609-200106

main04947-30100iGX105,JZX10#..EXC,EXCG,ROU,ROUS,SLT199609-200106

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iGX10#,JZX10#,LX100199609-200106

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-27030iGX105,JZX10#199609-200106

main47547-35020iGX100,LX100199609-200106

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12228iGX10#,JZX10#,LX100199609-200106

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-22070iGX105,JZX10#199609-200106

main47715-22080iGX105,JZX10#..EXC,EXCG,ROU,ROUS,SLT199609-200106

main47715-22130iGX100,LX100199812-200106

main47715-30060iJZX100..ROUG199609-200106

main47715-30060iJZX100..ROUG200105-200106

main47715-30080iGX100,LX100199609-199808

main47715-60010iGX100,LX100199808-200106

main47715-60020iGX100,LX100199808-199811

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main90105-08164iGX105,JZX10#199609-200106

main90105-08304iGX100,LX100199609-200106

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-22030iGX100,LX100199609-199808

main47716-22050iGX100,LX100199808-200106

main47716-24010iJZX100..ROUG199609-200106

main47716-30160iGX105,JZX10#..EXC,EXCG,ROU,ROUS,SLT199609-200106

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47716-24020iJZX100..ROUG199609-200106

main47716-30170iGX105,JZX10#..EXC,EXCG,ROU,ROUS,SLT199609-200106

main47717-22020iGX100,LX100199609-199808

main47717-22040iGX100,LX100199808-200106

47718APLATE, PAD SUPPORT, NO.3(FOR FRONT DISC BRAKE)

main47717-30050iGX105,JZX10#..EXC,EXCG,ROU,ROUS,SLT199609-200106

main47717-30070iJZX100..ROUG199609-200106

main47718-22010iGX100,LX100199609-199808

main47718-22030iGX100,LX100199808-200106

47719APLATE, PAD SUPPORT, NO.4(FOR FRONT DISC BRAKE)

main47717-30060iGX105,JZX10#..EXC,EXCG,ROU,ROUS,SLT199609-200106

main47717-30080iJZX100..ROUG199609-200106

main47719-22010iGX100,LX100199609-199808

main47719-22030iGX100,LX100199808-200106

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-22150iJZX100,101..EXC,EXCG,ROU,ROUS,SLT199609-200106

main47721-22160iGX100,LX100199609-199808

main47721-22200iJZX100..ROUG199609-200106

main47721-22210iGX100,LX100199808-200106

main47721-50010iGX105,JZX105199609-200106

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-22110iJZX100,101..EXC,EXCG,ROU,ROUS,SLT199609-200106

main47722-22120iGX100,LX100199609-199808

main47722-22160iJZX100..ROUG199609-200106

main47722-22170iGX100,LX100199808-200106

main47722-50010iGX105,JZX105199609-200106

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-22320iJZX100..ROUG199609-199809

sub47730-53010

main47730-22330iGX100,LX100199808-200106

main47730-30330iJZX100,101..EXC,EXCG,ROU,ROUS,SLT199609-200106

main47730-30340iGX100,LX100199609-199808

main47730-30360iGX105,JZX105199609-200106

main47730-53010iJZX100..ROUG199810-200106

47731PISTON, FRONT DISC BRAKE

main47731-22090iGX100,LX100199808-200106

main47731-30110iGX105,JZX10#..EXC,EXCG,ROU,ROUS,SLT199609-200106

main47731-30130iGX100,LX100199609-199808

main47731-30140iJZX100..ROUG199609-199809

main47731-30170iJZX100..ROUG199810-200106

sub47731-30140

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90520-52006iJZX100..ROUG199609-200106

main90520-70002iGX100,LX100199609-199808

main90520-86005iGX105,JZX10#..EXC,EXCG,ROU,ROUS,SLT199609-200106

47743ASPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)

main47743-22050iGX100,LX100199609-200106

main47743-30020iJZX100..ROUG199609-200106

main47743-50010iGX105,JZX10#..EXC,EXCG,ROU,ROUS,SLT199609-200106

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-22320iJZX100..ROUG199609-199809

sub47750-53010

main47750-22330iGX100,LX100199808-200106

main47750-30330iJZX100,101..EXC,EXCG,ROU,ROUS,SLT199609-200106

main47750-30340iGX100,LX100199609-199808

main47750-30360iGX105,JZX105199609-200106

main47750-53010iJZX100..ROUG199810-200106

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-22040iGX100,LX100199609-199808

main47769-50010iGX105,JZX10#199609-200106

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-22040iGX100,LX100199609-199808

main47775-30040iGX100,LX100199808-200106

main47775-30070iGX105,JZX10#199609-200106

sub47775-50010

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-22152iJZX100..ROUG199609-200106

main47781-22161iJZX100,101..EXC,EXCG,ROU,ROUS,SLT199609-200009

sub47781-22162

main47781-22162iJZX100,101..EXC,EXCG,ROUS,SLT200009-200106

main47781-22171iGX100,LX100199609-199808

sub47781-22172

main47781-22172iGX100,LX100199808-200011

sub47781-22173

main47781-22173iGX100200011-200106

main47781-22180iGX105,JZX105199609-200106

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90148-60028iGX10#,JZX10#,LX100199609-200106

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-22152iJZX100..ROUG199609-200106

main47782-22161iJZX100,101..EXC,EXCG,ROU,ROUS,SLT199609-200009

sub47782-22162

main47782-22162iJZX100,101..EXC,EXCG,ROUS,SLT200009-200106

main47782-22171iGX100,LX100199609-199808

sub47782-22172

main47782-22172iGX100,LX100199808-200011

sub47782-22173

main47782-22173iGX100200011-200106

main47782-22180iGX105,JZX105199609-200106

25 parts on this diagram · 3 diagrams in section
