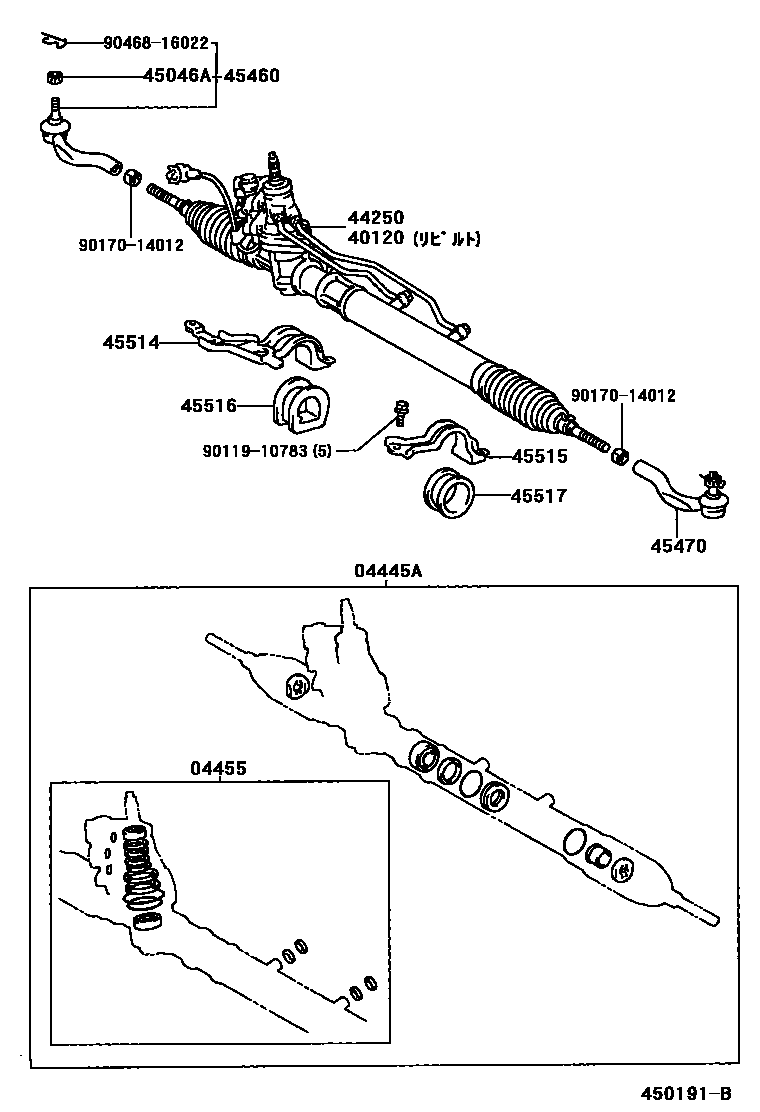

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-22240iJZX100,101199609-200106

main04445-22250iGX100,LX100199609-200106

main04445-22260iJZX105199609-200010

sub04445-30310

main04445-22270iGX105199808-200010

sub04445-51011

main04445-30310iJZX105200010-200106

main04445-51011iGX105200010-200106

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-22120iJZX10#199609-200105

sub04455-30130

main04455-22130iGX10#,LX100199609-200105

sub04455-51010

main04455-30130iJZX105200010-200106

main04455-51010iGX105200010-200106

40120GEAR ASSY,POWER STEERING,REBUILT

main40120-22372iJZX100,101..EXC,EXCG,SLT199708-200106

TOYODA KOKI

main40120-22383iJZX100..ROU,ROUG,ROUS199708-200106

TOYODA KOKI

main40120-22390iGX100199609-199808

TOYODA KOKI

main40120-22400iLX100199609-199808

TOYODA KOKI

main40120-22412iJZX105199708-200106

TOYODA KOKI

main40120-22420iGX100199808-200106

TOYODA KOKI

sub40120-22390

main40120-22430iLX100199808-199908

TOYODA KOKI

main40120-22440iGX105199808-200106

TOYODA KOKI

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-22370iJZX100,101..EXC,EXCG,SLT199609-199611

sub44250-22371

main44250-22371iJZX100,101..EXC,EXCG,SLT199611-199708

sub44250-22372

sub89650-22231

main44250-22372iJZX100,101..EXC,EXCG,SLT199708-200106

main44250-22380iJZX100..ROU,ROUG199609-199610

sub44250-22381

main44250-22381iJZX100..ROU,ROUG199610-199704

sub44250-22382

main44250-22382iJZX100..ROU,ROUG199704-199708

sub44250-22383

sub89650-22241

main44250-22383iJZX100..ROU,ROUG,ROUS199708-200106

main44250-22390iGX100199609-199808

main44250-22400iLX100199609-199808

main44250-22410iJZX105199609-199611

sub44250-22411

main44250-22411iJZX105199611-199708

sub44250-22412

sub89650-22231

main44250-22412iJZX105199708-200106

main44250-22420iGX100199808-200106

main44250-22430iLX100199808-199908

main44250-22440iGX105199808-200106

sub44200-22491

45046END SUB-ASSY, TIE ROD, RH

main45046-29285iGX100,JZX100,101,LX100199609-200106

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12002iGX10#,JZX10#,LX100199609-200106

45460ROD ASSY, TIE, RH

main45460-39395iGX105,JZX105199609-200106

45470ROD ASSY, TIE, LH

main45470-39145iGX105,JZX105199609-200106

45514BRACKET, STEERING RACK HOUSING, NO.1

main45514-22130iGX105,JZX105199609-200106

45515BRACKET, STEERING RACK HOUSING, NO.2

main45515-22120iGX100,JZX100,101,LX100199609-200106

main45515-22130iGX105,JZX105199609-200106

45516GROMMET, STEERING RACK HOUSING, NO.1

main45516-22050iGX105,JZX105199609-200106

main45516-22070iJZX100..ROU,ROUG199609-199610

sub45516-30020

main45516-30020iGX100,JZX100,101,LX100..EXC,EXCG,SC,SLT199609-200106

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-22080iGX105,JZX105199609-200106

main45517-30020iGX100,JZX100,101,LX100199609-199808

main45517-51010iGX100,JZX100,101,LX100199808-200106

9011910783

main90119-10783

9017014012

main90170-14012

9046816022

main90468-16022

15 parts on this diagram · 10 diagrams in section
