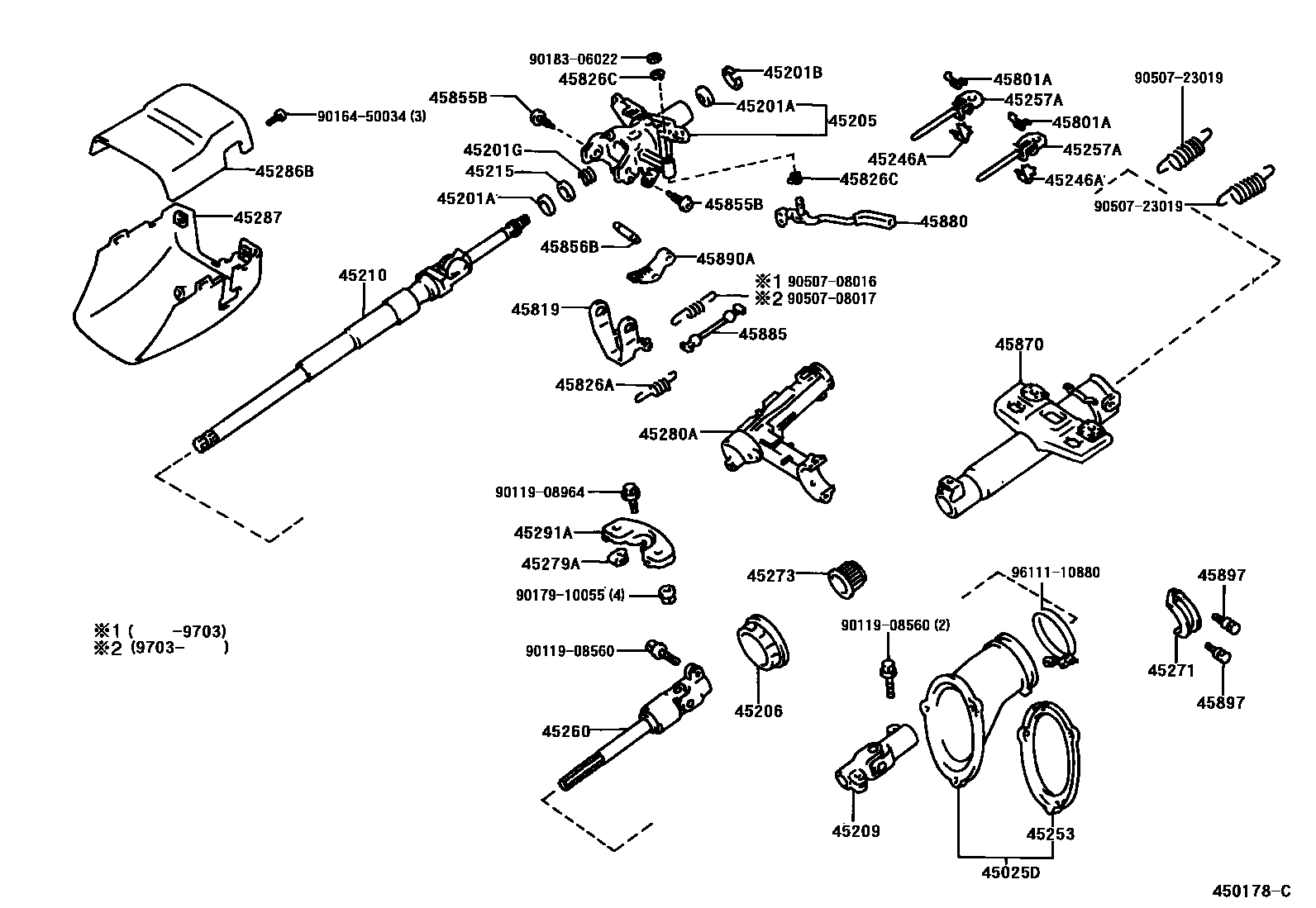

STEERING COLUMN & SHAFT
45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45201ABEARING(FOR STEERING MAIN SHAFT)
45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
45201GSPRING, COMPRESSION(FOR STEERING MAIN SHAFT)
45205TUBE SUB-ASSY, STEERING COLUMN
45206YOKE SUB-ASSY, STEERING SLIDING W/SHAFT
45210SHAFT ASSY, STEERING MAIN
sub45210-22202
sub45210-22202
sub45210-22203
sub45210-22203
sub45210-22230
sub45210-22230
45215COLLAR, MAIN SHAFT BEARING THRUST
45246AGUIDE, STEERING ENERGY ABSORBING PLATE
45253COVER, STEERING COLUMN HOLE
45257APLATE, STEERING COLUMN ENERGY ABSORBING
45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2
sub45260-22211
sub45260-22271
sub45260-22301
sub45260-22311
45271CLAMP, STEERING COLUMN, UPPER
45273BUSH, STEERING MAIN SHAFT
45279AATTACHMENT, STEERING COLUMN TUBE, LWR
45280ABRACKET ASSY, STEERING COLUMN, UPPER
45291ASUPPORT, STEERING COLUMN TUBE
45801APIN SUB-ASSY, STEERING ENERGY ABSORBING
45819RETAINER, TILT LEVER
45826ASPRING, TENSION(FOR STEERING TILT LEVER)
45826CBUSH(FOR STEERING TILT LEVER)
45855BSHAFT, T1LT STEERING, NO.1
45880LEVER ASSY, STEERING TILT
45885LINK, TILT LEVER
45890APAWL ASSY, TILT STEERING
45897BOLT, STEERING LOCK SET
9011908560
main90119-08560
9011908964
main90119-08964
9016450034
main90164-50034
9017910055
main90179-10055
9018306022
main90183-06022
9050708016
main90507-08016
9050708017
main90507-08017
9050723019
main90507-23019
9611110880
main96111-10880
40 parts on this diagram · 2 diagrams in section
