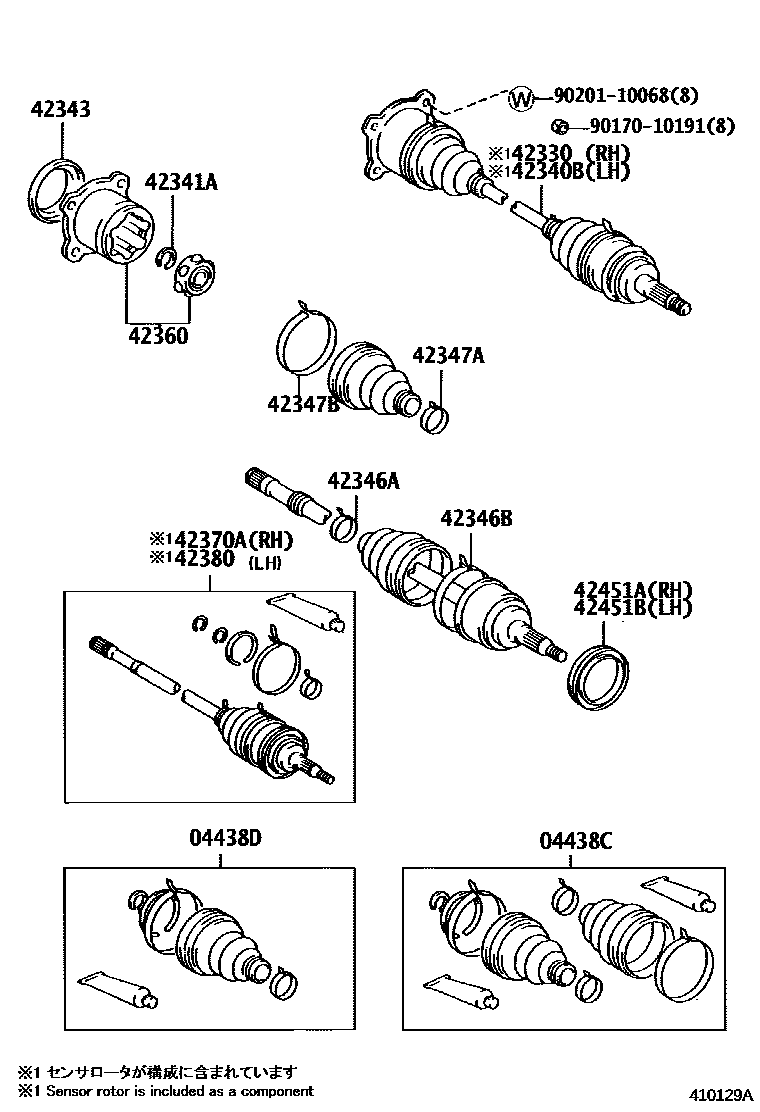

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1

04438CBOOT KIT, REAR DRIVE SHAFT

main04437-17040iJZX100,105..EXC,EXCG,ROU,SLT199609-199907

sub04437-17041

main04437-22120iGX10#,LX100199609-200008

main04437-24040iJZX100..ROUG,ROUS199708-199909

sub04437-24041

main04437-24040iJZX101;JZX100..ROUG199609-199708

sub04437-24041

main04437-24041iJZX100..ROUG,ROUS199909-200106

sub04429-22020

main04437-30060iJZX101;JZX100..ROUS199708-200106

sub04429-30040

main04437-48031iGX10#200008-200106

sub04429-22030

04438DBOOT KIT, REAR DRIVE SHAFT INBOARD JOINT

main04437-17030iJZX100,105..EXC,EXCG,ROU,SLT199609-199907

sub04438-33011

main04437-22090iGX10#,LX100199609-200008

main04437-24030iJZX100..ROUG,ROUS199708-199909

sub04437-24031

main04437-24030iJZX101;JZX100..ROUG199609-199708

sub04437-24031

main04437-24031iJZX100..ROUG,ROUS199909-200106

sub04439-22020

main04437-30050iJZX101;JZX100..ROUS199708-200106

sub04439-30030

main04437-48020iGX10#200008-200106

sub04439-22030

42330SHAFT ASSY, REAR DRIVE, RH

main42330-22020iJZX100..ROUG,ROUS199708-199910

sub42330-22021

main42330-22020iJZX101;JZX100..ROUG199609-199708

sub42330-22021

main42330-22021iJZX100..ROUG,ROUS199910-200106

main42330-22030iJZX100,105..EXC,EXCG,ROU,SLT199609-199907

main42330-22070iGX100..MTM;GX105,LX100199609-200106

main42330-22080iGX100..ATM199609-200106

main42330-30120iJZX10#..EXC,EXCG,ROUS,SLT199708-200106

42340BSHAFT ASSY, REAR DRIVE, LH

main42340-22100iJZX100..ROUG,ROUS199708-199910

sub42340-22101

main42340-22100iJZX101;JZX100..ROUG199609-199708

sub42340-22101

main42340-22101iJZX100..ROUG,ROUS199910-200106

main42340-22110iJZX100,105..EXC,EXCG,ROU,SLT199609-199907

main42340-22150iGX100..MTM;GX105,LX100199609-200106

main42340-22160iGX100..ATM199609-200106

main42340-30120iJZX10#..EXC,EXCG,ROUS,SLT199708-200106

42341ARING, SNAP (FOR REAR DRIVE SHAFT)

main90520-23024iGX10#,LX100199609-200106

42343COVER, OUTBOARD JOINT END

main42343-14010iGX10#,LX100199609-200106

42346ACLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT)

main42345-14010iGX10#,JZX100,105,LX100..EXC,EXCG,ROU,SC,SLT199609-200106

main42345-30080iJZX10#..EXC,EXCG,ROUS,SLT199708-200106

main90949-01837iJZX101;JZX100..ROUG199609-199708

main90949-01837iJZX100..ROUG,ROUS199708-200106

42346BCLAMP, NO. 2 (FOR RR DRIVE SHAFT OUTBOARD JOINT BOOT)

main42345-30070iJZX101;JZX100..ROUS199708-200106

main90949-01339iJZX100,105..EXC,EXCG,ROU,SLT199609-199907

main90949-01473iGX10#,LX100199609-200106

main90949-01838iJZX100..ROUG,ROUS199708-200106

main90949-01838iJZX101;JZX100..ROUG199609-199708

42347ACLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)

main42345-14010iGX10#,LX100199609-200106

main42345-14020iGX10#,LX100199808-200106

main42345-30080iJZX10#..EXC,EXCG,ROUS,SLT199708-200106

main90949-01837iJZX100..ROUG,ROUS199708-200106

main90949-01837iJZX101;JZX100..ROUG199609-199708

42347BCLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)

main42345-14020iGX100,LX100199609-199808

main42345-16100iJZX100,105..EXC,EXCG,ROU,SLT199609-199907

main42345-30070iJZX101;JZX100..ROUS199708-200106

main90949-01838iJZX100..ROUG,ROUS199708-200106

main90949-01838iJZX101;JZX100..ROUG199609-199708

42360JOINT ASSY, REAR DRIVE SHAFT INBOARD

main42360-22040iGX10#,LX100199609-200106

42370ASHAFT ASSY, REAR DRIVE OUTBOARD JOINT, RH

main42370-29147iJZX101;JZX100..ROUG199609-199708

sub42370-29148

main42370-29147iJZX100..ROUG,ROUS199708-199910

sub42370-29148

main42370-29148iJZX100..ROUG,ROUS199910-200106

sub42370-29675

main42370-29155iJZX100,105..EXC,EXCG,ROU,SLT199609-199809

sub42370-29156

main42370-29156iJZX100,105..EXC,EXCG,SLT199809-199907

main42370-29195iGX100..MTM;GX105,LX100199609-200106

sub42370-29665

main42370-29205iGX100..ATM199609-200106

sub42370-29655

main42370-39135iJZX10#..EXC,EXCG,ROUS,SLT199708-200106

sub42370-39235

42380SHAFT ASSY, REAR DRIVE OUTBOARD JOINT, LH

main42380-29047iJZX101;JZX100..ROUG199609-199708

sub42380-29048

main42380-29047iJZX100..ROUG,ROUS199708-199910

sub42380-29048

main42380-29048iJZX100..ROUG,ROUS199910-200106

sub42380-29225

main42380-29055iJZX100,105..EXC,EXCG,ROU,SLT199609-199809

sub42380-29056

main42380-29056iJZX100,105..EXC,EXCG,SLT199809-199907

main42380-29095iGX100..MTM;GX105,LX100199609-200106

sub42380-29215

main42380-29105iGX100..ATM199609-200106

sub42380-29205

main42380-39055iJZX10#..EXC,EXCG,ROUS,SLT199708-200106

sub42380-39145

42451ADEFLECTOR, REAR WHEEL BEARING DUST, NO.1 RH

main42452-28020iGX100..ATM199609-200106

main42453-50010iGX100..MTM;GX105,JZX10#,LX100199609-200106

42451BDEFLECTOR, REAR WHEEL BEARING DUST, NO.1 LH

main42452-28020iGX100..ATM199609-200106

main42453-50010iGX100..MTM;GX105,JZX10#,LX100199609-200106

9017010191

main90170-10191

9020110068

main90201-10068

17 parts on this diagram · 3 diagrams in section
