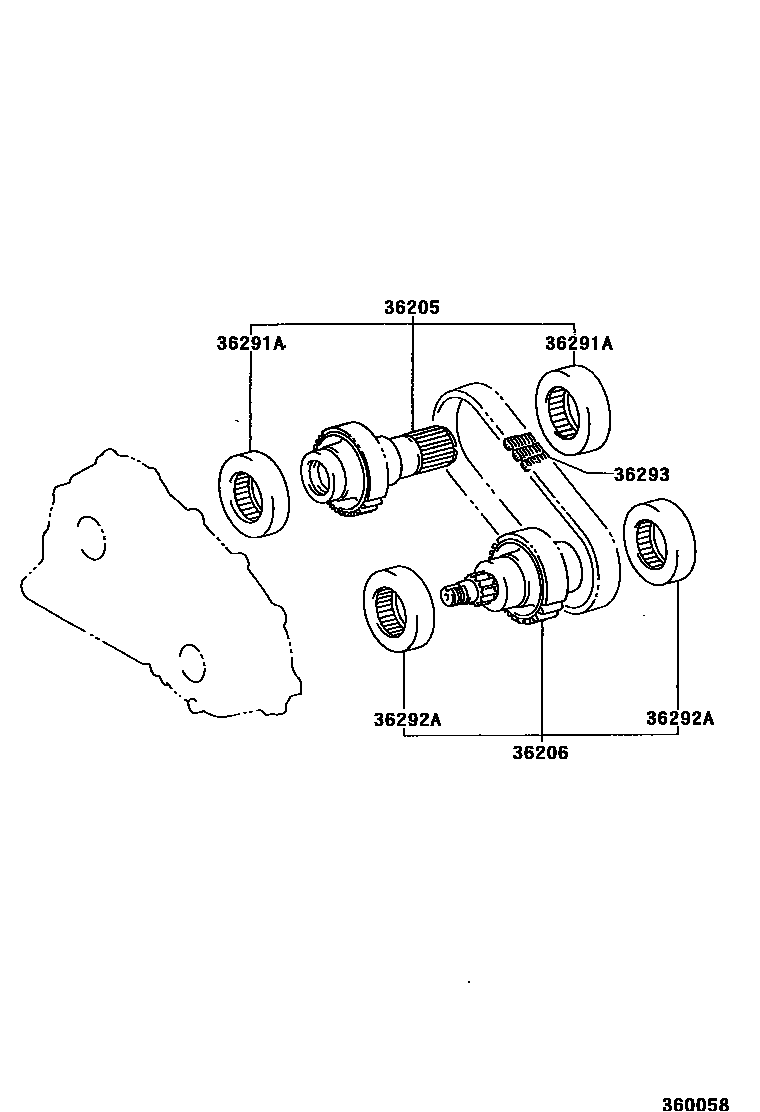

TRANSFER GEAR

36205SPROCKET SUB-ASSY, TRANSFER DRIVE

main36205-30020iJZX105199609-199707

main36205-30030iGX105,JZX105199707-200106

36206SLEEVE SUB-ASSY, TRNSFR FR DRIVE CLUTCH

main36206-30020iJZX105199609-199707

main36206-30030iGX105,JZX105199707-200106

36291ABEARING (FOR TRANSFER DRIVE SPROCKET)

main90363-55002iGX105,JZX105199609-200106

main90363-55004iGX105,JZX105199609-200106

36292ABEARING (FOR TRANSFER DRIVEN SPROCKET)

main90363-55004iGX105,JZX105199609-200106

36293CHAIN, TRANSFER FRONT DRIVE

main36293-30010iJZX105199609-199707

main36293-30020iGX105,JZX105199707-200106

5 parts on this diagram · 1 diagram in section
