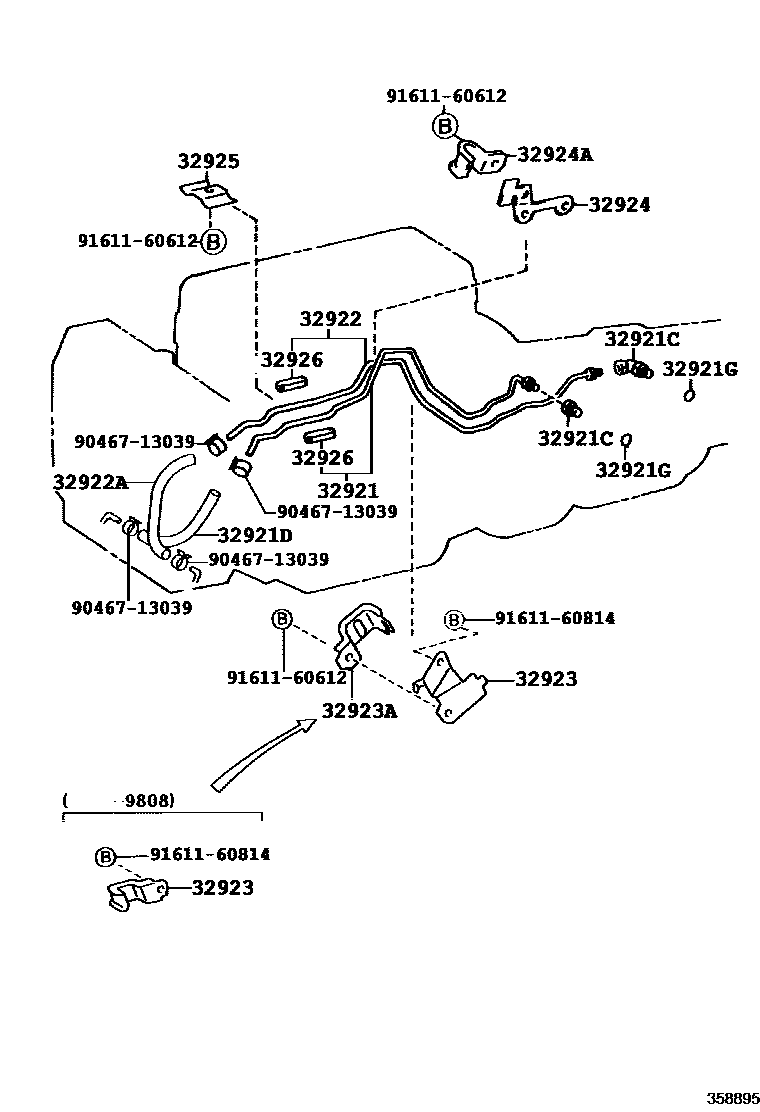

OIL COOLER & TUBE (ATM)

0001 1A42DE 0002 1A341E 0003 1A340E,A651E 0004 1A340E 0005 1A340H 0006 1A43D 0007 1A340H

32921TUBE, OIL COOLER INLET, NO.1

main32921-22650iGX100..ATM199609-199808

main32921-22690iJZX101199609-200106

main32921-22720iJZX100..EXC,EXCG,ROU,ROUS,SLT199609-200106

main32921-22730iJZX100..ROUG199609-200106

main32921-22740iJZX105199609-200106

main32921-22750iLX100199609-199908

main32921-22770iGX105199808-200106

main32921-22780iGX100199808-200106

32921CUNION(FOR OIL COOLER TUBE)

main90404-14021iGX100..ATM199609-199808

main90404-16021iLX100199609-200106

main90404-16029iJZX100,101199609-200106

main90407-14003iGX100..ATM199609-199808

main90407-16009iGX105,JZX10#199609-200106

main90407-16010iLX100199609-200106

main90407-16012iGX105,JZX105199609-200106

32921DHOSE(FOR OIL COOLER INLET)

main32941-22280iGX100..ATM199609-199808

sub90445-15048

main32941-22420iJZX100..ROUG199609-200106

main90445-15042iLX100199609-199908

main90445-15048iGX10#199808-200106

main90445-15079iGX100199809-200106

main90445-17110iJZX10#..EXC,EXCG,ROU,ROUS,SLT199609-200106

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189iGX100,LX100..ATM199609-200106

main90301-11006iGX105,JZX10#199609-200106

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-22650iGX100..ATM199609-199808

main32922-22690iJZX101199609-200106

main32922-22720iJZX100..EXC,EXCG,ROU,ROUS,SLT199609-200106

main32922-22730iJZX100..ROUG199609-200106

main32922-22740iJZX105199609-200106

main32922-22750iLX100199609-199908

main32922-22770iGX105199808-200106

main32922-22780iGX100199808-200106

32922AHOSE(FOR OIL COOLER OUTLET)

main32941-22260iGX100..ATM199609-199808

sub90445-15042

main32941-22360iJZX100,101..EXC,EXCG,ROU,ROUS,SLT199609-200106

main32942-22400iJZX100..ROUG199609-200106

main90445-15042iGX10#199808-200106

main90445-15057iLX100199609-199908

sub32941-22310

main90445-17088iJZX105199609-200106

32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32923-22070iLX100199609-199908

main32923-22080iGX100199808-200106

main32923-30080iGX100..ATM199609-199808

main32923-43030iGX105199808-200106

main32924-22090iJZX10#..EXC,EXCG,ROU,ROUS,SLT199609-200106

main32924-30190iJZX100..ROUG199609-200106

32923ACLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32929-22050iGX100199808-200106

32924CLAMP, OIL COOLER TUBE, NO.2

main32923-30200iJZX100,101199609-200106

main32924-22120iGX100..ATM199609-199808

main32924-22150iGX10#199808-200106

main32924-30220iJZX105199609-200106

32924ACLAMP(FOR OIL COOLER TUBE, NO.2)

main32929-22050iLX100199609-199908

main32929-30090iGX100..ATM199609-199808

main32929-30160iJZX10#199609-200106

main90949-01B25iGX10#199808-200106

32925CLAMP, OIL COOLER TUBE, NO.3

main90462-12047iGX100199808-200106

main90462-12085iGX100..ATM199609-199808

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-22010iGX100..ATM199609-199808

main32926-30020iJZX10#..EXC,EXCG,ROU,SLT199609-200106

main32926-30020iLX100199609-199908

main32926-30030iGX10#199808-200106

main32926-30060iJZX10#199609-200106

9046713039

main90467-13039

9161160612

main91611-60612

9161160814

main91611-60814

15 parts on this diagram · 7 diagrams in section
