THROTTLE LINK & VALVE LEVER (ATM)

0001 1A42DE,A43D 0002 1A340E,A341E,A340H,A651E 0003 1A42DE 0004 1A43D 0005 1A340E,A340H 0006 1A340E

35501ROD SUB-ASSY, PARKING LOCK

main35501-22020iGX100,LX100..ATM199609-200106

main35501-26020iGX100199808-200106

main35501-30010iJZX100,105..EXC,EXCG,SLT199609-199808

main35501-30020iJZX100..ROUS199808-200106

main35501-60010iGX105,JZX10#..EXC,EXCG,ROUG,SLT199609-200106

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-22050iGX100,LX100..ATM..(EXC,SC,SLT)199609-200106

main35505-22060iGX105,JZX100,105..EXC,EXCG,SLT199609-200106

main35505-22070iGX100..ROU199808-200106

main35505-50010iJZX101199609-200106

main35505-50020iJZX100..ROU,ROUG,ROUS199609-200106

35506CPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)

main90254-04011iGX10#,JZX10#,LX100..ATM199609-200106

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-11003iGX100,LX100..ATM199609-200106

main90311-12002iGX105,JZX10#199609-200106

35506HSPACER (FOR MANUAL VALVE LEVER SHAFT)

main90560-20003iGX100,LX100..ATM199609-200106

sub90560-20025

main90560-20006iGX105,JZX10#199609-200106

35556SHAFT, PARKING LOCK PAWL

main35556-26010iGX100,LX100..ATM199609-200106

main35556-30020iGX105,JZX10#..EXC,EXCG,ROU,ROUG,SLT199609-200106

main35556-30030iJZX100..ROUS199808-200106

35556ERING, E (FOR PARKING LOCK PAWL SHAFT)

main90523-08021iGX10#,JZX10#,LX100..ATM199609-200106

35557PAWL, PARKING LOCK

main35557-26020iGX100..EXC,SLT199808-199812

main35557-30020iJZX100,105..EXC,EXCG,SLT199609-199808

main35557-35010iLX100;GX100..ROU199609-200106

main35557-60020iGX105,JZX10#..EXC,EXCG,ROUG,SLT199609-200106

main35590-30010iJZX100..ROUS199808-200106

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90508-21001iGX100..EXC,SLT199808-199812

main90508-21002iGX105,JZX10#..EXC,EXCG,ROU,ROUG,SLT199609-200106

main90508-25001iGX100,LX100199609-200106

main90949-03065iJZX100..ROUS199808-200106

35561SHAFT, MANUAL VALVE LEVER

main35561-22030iGX100199808-200106

main35561-30070iJZX100,101199609-200106

main35561-35010iGX105,JZX105199609-200106

main35561-40010iGX100,LX100..ATM199609-199908

35572LEVER, TRANSMISSION CONTROL SHAFT, RH

main35572-22050iGX100199808-200106

main35572-30070iGX100,JZX100,101,LX100..ATM199609-200106

main35573-30050iGX105,JZX105199609-200106

35595BRACKET, PARKING LOCK PAWL

main35595-30010iJZX100,105..EXC,EXCG,SLT199609-199808

main35595-30020iJZX100..ROUS199808-200106

main35595-40010iGX100,LX100..ATM199609-200106

main35595-60010iJZX101;JZX100..ROU,ROUG199609-200106

9010106024

main90101-06024

9411050800

main94110-50800

9451200800

main94512-00800

9454200600

main94542-00600

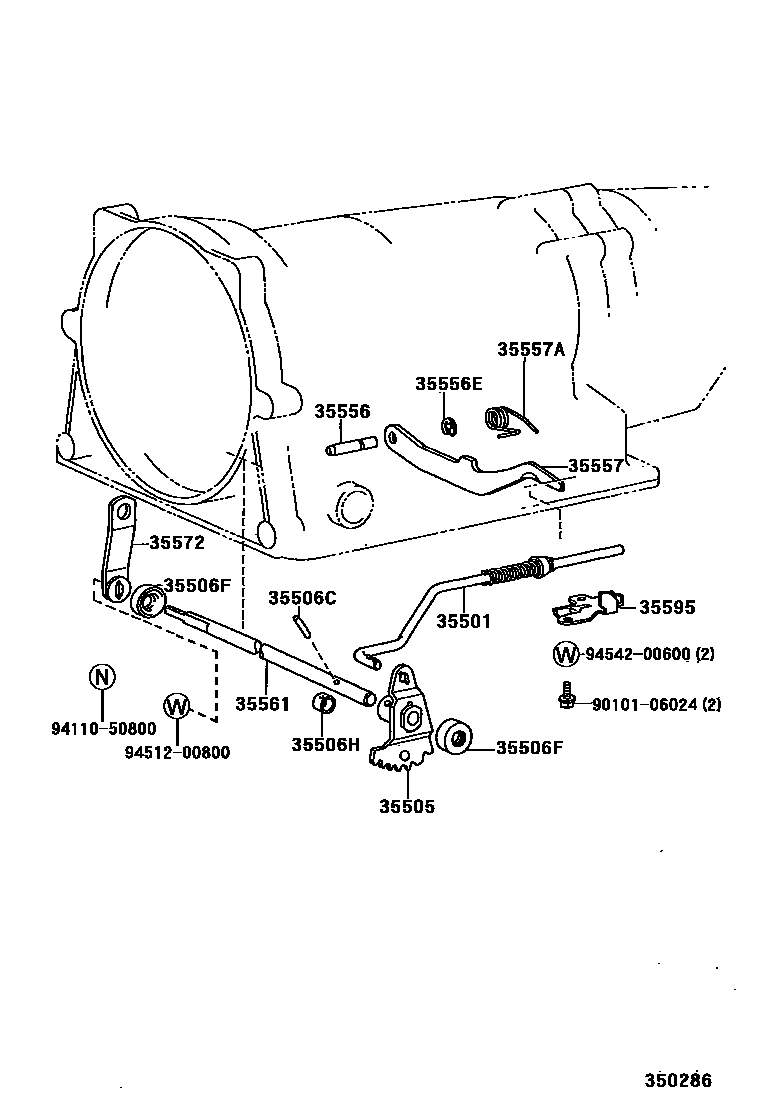

16 parts on this diagram · 6 diagrams in section
