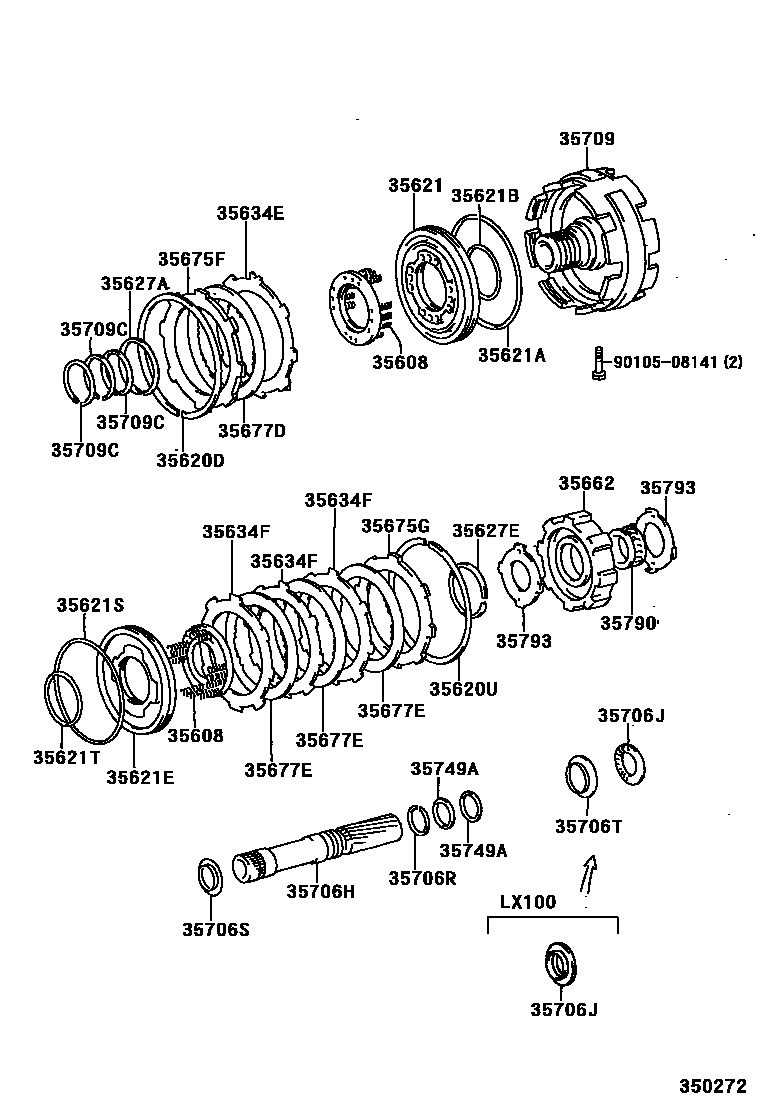

CENTER SUPPORT & PLANETARY SUN GEAR (ATM)

0001 1A42DE,A43D 0002 1A340E,A340H 0004 1A341E 0005 1A651E

35608SPRING SUB-ASSY, 2ND BRAKE PISTON RETURN

main35608-20010iGX100,LX100..ATM199609-200106

main35608-22010iGX100..ATM199609-200106

main35608-30010iGX105,JZX100,105..EXC,EXCG,ROU,ROUG,SLT199609-200106

main35608-30020iLX100199609-199908

main35608-50010iJZX101199609-200106

35620DRING (FOR BRAKE)

main90521-99139iGX100,LX100..ATM199609-200106

35620URING (FOR REAR BRAKE)

main90521-99139iGX100,LX100..ATM199609-200106

35621PISTON, BRAKE, NO.1

main35624-22010iGX100,LX100..ATM199609-200106

35621ARING, O (FOR BRAKE PISTON OUTER)

main90301-99110iGX100,LX100199808-200106

main90301-99192iGX100,LX100..ATM199609-199808

35621BRING, O (FOR BRAKE PISTON INNER)

main90301-56007iGX100,LX100199808-200106

main90301-57188iGX100,LX100..ATM199609-199808

35621EPISTON, BRAKE (FOR REAR BRAKE)

main35621-30010iGX100,LX100..ATM199609-200106

35621SRING (FOR REAR BRAKE PISTON OUTER)

main90301-99007iGX100,LX100..ATM199609-199808

sub90301-99107

main90301-99107iGX100,LX100199808-200106

35621TRING (FOR REAR BRAKE PISTON INNER)

main90301-56007iGX100,LX100199808-200106

main90301-57188iGX100,LX100..ATM199609-199808

35627ARING, SHAFT SNAP (FOR BRAKE RETURN SPRING SEAT)

main90520-52262iGX100,LX100..ATM199609-200106

35627ERING, SHAFT SNAP (FOR REAR BRAKE RETURN SPRING SEAT)

main90520-52262iGX100,LX100..ATM199609-200106

35634EPLATE, CLUTCH (FOR BRAKE)

main35634-22060iGX100,LX100..ATM..(EXC,SC,SLT)199609-200106

35634FPLATE, CLUTCH (FOR REAR BRAKE)

main35648-30020iGX100,LX100..ATM199609-200106

35662HUB, BRAKE

main35662-30010iGX100,LX100..ATM199609-200106

35675FFLANGE, CLUTCH (FOR BRAKE)

main35675-22010iGX100,LX100..ATM199609-199908

sub35675-22140

main35675-22110iGX100199808-199901

sub35675-22140

main35675-22140iGX100199901-200106

35675GFLANGE, BRAKE (FOR REAR BRAKE)

main34625-22010iGX100,LX100..ATM199609-199908

sub35676-22030

main35676-22030iGX100199901-200106

35677DISC, CLUTCH (FOR 2ND BRAKE)

main35667-30050iJZX101199609-200106

main35667-60010iGX105,JZX100,105..EXC,EXCG,ROU,SLT199609-200106

35677DDISC, CLUTCH (FOR REAR BRAKE)

main35677-30140iGX100..ROU199609-200106

35677EDISC, CLUTCH (FOR REAR BRAKE)

main35677-22070iGX100,LX100..ATM199609-200106

35706HGEAR SUB-ASSY, PLANETARY SUN

main35706-22011iGX100..ATM199609-199808

main35706-22020iGX100199808-200106

main35706-30061iGX105,JZX10#..EXC,EXCG,ROU,SLT199609-200106

main35706-30070iLX100199609-199908

main35706-50010iJZX100..ROUG199609-200106

35706JBEARING, THRUST NEEDLE ROLLER (FOR PLANETARY SUN GEAR)

main90374-23003iGX100199808-200106

main90374-23012iGX100..ATM199609-199808

main90374-24003iLX100199609-199908

main90374-30006iGX105,JZX10#..EXC,EXCG,ROU,ROUG,SLT199609-200106

35706RRING, SHAFT SNAP (FOR PLANETARY SUN GEAR)

main90520-34001iLX100199609-199908

main90520-34260iGX100..ATM199609-200106

35706SRACE, THRUST BEARING (FOR PLANETARY SUN GEAR FRONT)

main35789-22030iLX100199609-199908

main35789-43020iGX100199808-200106

35706TRACE, THRUST BEARING (FOR PLANETARY SUN GEAR REAR)

main35789-22010iGX100..ATM199609-199808

main35789-22070iGX100199808-200106

35709SUPPORT SUB-ASSY, CENTER

main35709-28010iGX100..EXC,SLT199808-200106

main35709-30041iGX100,LX100..ATM199609-199908

main35709-30051iGX100..ROU199808-200106

35709CRING, OIL SEAL (FOR CENTER SUPPORT)

main35617-16010iGX100,LX100..ATM199609-200106

35749ARING, SUN GEAR SHAFT OIL SEAL

main35749-22010iGX100..ATM199609-200106

main35749-30010iGX105,JZX10#,LX100..EXC,EXCG,ROU,ROUG,SC,SLT199609-200106

35790CLUTCH ASSY, 1 WAY

main35790-22040iGX100199808-200106

main35790-30050iGX105,JZX10#..EXC,EXCG,ROU,SLT199609-200106

main35790-30060iJZX100..ROUG199609-200106

main35790-30080iJZX100..ROUS199808-200106

main35791-30020iLX100199609-199908

35793RETAINER, 1 WAY CLUTCH

main35793-22011iGX100,LX100..ATM199609-199908

9010508141

main90105-08141

30 parts on this diagram · 4 diagrams in section
