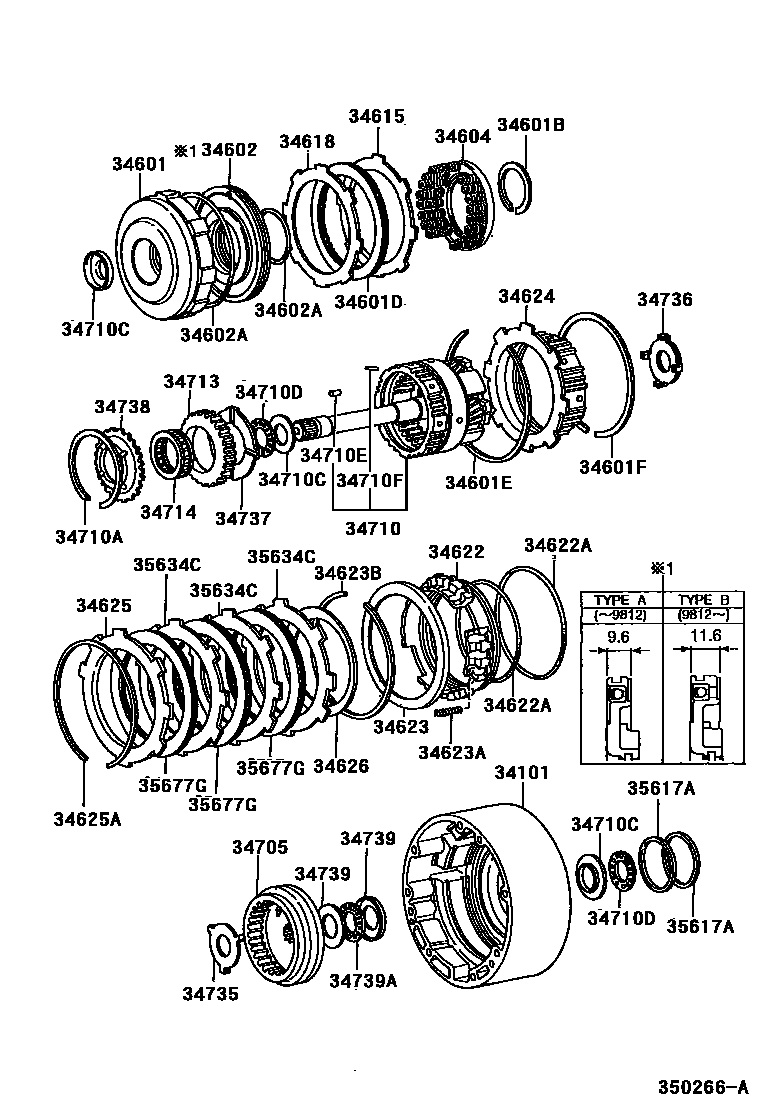

OVERDRIVE GEAR (ATM)

0001 1A42DE,A43D 0003 1A340E,A341E,A340H,A651E 0004 1A42DE

34101CASE SUB-ASSY, OVERDRIVE

main34101-22010iGX100..ATM199609-199808

sub34101-38010

sub35617-43010

main34101-22020iGX100199805-200106

main34101-28010iLX100199801-199908

sub34101-22020

main34101-43010iLX100199609-199801

34601DRUM SUB-ASSY, OVERDRIVE DIRECT CLUTCH

main34601-30022iGX100,LX100..ATM199609-200106

main34601-30030iJZX105199609-199808

main34601-50010iJZX100..ROUG199609-200106

sub34601-26020

main34601-50030iGX105,JZX10#..EXC,EXCG,ROUS,SLT199609-200106

34601BRING, SHAFT SNAP (FOR OVERDRIVE DIRECT CLUTCH)

main90520-52262iGX100,LX100..ATM199609-200106

34601DDISC, CLUTCH (FOR OVERDRIVE)

main35677-30140iGX100..ATM199609-200106

main35677-30160iLX100199609-199908

34601ERING, HOLE SNAP, NO.1 (FOR OVERDRIVE)

main90521-99146iGX100,LX100..ATM199609-200106

34601FRING, HOLE SNAP, NO.2 (FOR OVERDRIVE)

main90521-99001iGX100,LX100..ATM199609-200106

34602PISTON SUB-ASSY, OVERDRIVE DIRECT CLUTCH

main34602-22010iGX100199812-200106

main34602-30020iGX105,JZX10#199609-200106

main34602-30030iLX100199609-199908

34602ARING, O (FOR OVERDRIVE DIRECT CLUTCH PISTON)

main90301-56007iGX100,LX100199808-200106

main90301-57188iGX100,LX100..ATM199609-199808

main90301-65005iJZX10#..EXC,EXCG,ROU,SLT199609-199707

sub90301-65006

main90301-65006iGX105,JZX10#199609-200106

main90301-99016iGX100,LX100..ATM199609-199808

main90301-99036iJZX10#..EXC,EXCG,ROU,SLT199609-199707

sub90301-99086

main90301-99058iGX100,LX100199808-200106

main90301-99086iGX105,JZX10#199609-200106

34604SPRING SUB-ASSY, OVERDRIVE CLUTCH RETURN

main34604-22010iGX100,LX100..ATM199609-200106

main34604-30010iGX105,JZX10#199609-200106

34615FLANGE, OVERDRIVE CLUTCH

main34615-22010iGX105,JZX10#200103-200106

main34615-22020iGX105,JZX10#200103-200106

main34615-22030iGX105,JZX10#200103-200106

main34615-22040iJZX10#200103-200106

main34615-22050iJZX10#200103-200106

main34615-30020iGX105,JZX10#199609-200007

sub34615-50050

main34615-30030iGX105,JZX10#199609-200007

sub34615-50040

main34615-30040iGX105,JZX10#199609-200007

sub34615-50030

main34615-30050iGX105,JZX10#199609-200103

sub34615-22030

main34615-30060iGX105,JZX10#199609-200103

sub34615-22020

main34615-30070iJZX105;JZX100..ROUG199609-200103

sub34615-22010

main34615-50010iJZX100,101..EXC,EXCG,ROU,SLT199609-200103

sub34615-22040

main34615-50020iGX105,JZX10#199609-200103

sub34615-22050

main34615-50030iGX105,JZX10#200007-200106

main34615-50040iGX105,JZX10#200007-200106

main34615-50050iGX105,JZX10#200007-200106

main35634-30070iGX100199812-200106

main35675-22010iGX100,LX100..ATM199609-199812

sub35675-22140

34618PLATE, OVERDRIVE DIRECT CLUTCH CUSHION

main34618-30010iGX100,LX100..ATM199609-200106

34622PISTON, OVERDRIVE BRAKE

main34622-22020iGX100199808-200106

main34622-24010iJZX100..ROUG199609-200106

main34622-30040iLX100199609-199908

main34622-30090iGX105,JZX10#..EXC,EXCG,ROU,SLT199609-200106

main34622-30120iJZX100..ROUS199808-200106

34622ARING, O (FOR OVERDRIVE BRAKE PISTON)

main90301-99008iGX100,LX100..ATM199609-199808

sub90301-99103

main90301-99009iGX100,LX100..ATM199609-199808

sub90301-99111

main90301-99063iJZX10#..EXC,EXCG,ROU,SLT199609-199707

sub90301-99090

main90301-99064iJZX10#..EXC,EXCG,ROU,SLT199609-199707

sub90301-99088

main90301-99088iJZX100..ROUG199609-200106

main90301-99090iGX105,JZX10#199609-200106

main90301-99103iGX100,LX100199808-200106

main90301-99111iGX100,LX100199808-200106

34623SEAT, OVERDRIVE BRAKE RETURN SPRING

main34623-30020iGX100,LX100..ATM199609-199908

34623ASPRING, COMPRESSION (FOR OVERDRIVE BRAKE RETURN SPRING SEAT)

main90501-11023iGX100,LX100..ATM199609-199908

34623BRING, HOLE SNAP (FOR OVERDRIVE BRAKE RETURN SPRING SEAT)

main90521-99004iGX100,LX100..ATM199609-200106

34624HUB, OVERDRIVE BRAKE

main34624-26010iGX100,LX100..ATM199609-200106

34625FLANGE, OVERDRIVE BRAKE, NO.1

main34625-22020iGX100199808-200106

main34625-22030iGX105,JZX10#200103-200106

main34625-22040iGX105,JZX10#200103-200106

main34625-22050iGX105,JZX10#200103-200106

main34625-22060iGX105,JZX10#200103-200106

main34625-26010iLX100199609-199908

sub34625-22020

main34625-30110iJZX100..ROUS199808-200106

main34625-30120iGX105,JZX10#199609-200103

sub34625-22050

main34625-30130iGX105,JZX10#199609-200103

sub34625-22040

main34625-30140iGX105,JZX10#199609-200007

sub34625-50040

main34625-30150iGX105,JZX10#199609-200007

sub34625-50030

main34625-30160iGX105,JZX10#199609-200007

sub34625-50020

main34625-30170iGX105,JZX10#199609-200103

sub34625-22030

main34625-30180iGX105,JZX10#199609-200103

sub34625-22060

main34625-50020iGX105,JZX10#200007-200106

main34625-50030iGX105,JZX10#200007-200106

main34625-50040iGX105,JZX10#200007-200106

34625ARING, HOLE SNAP (FOR OVERDRIVE BRAKE FLANGE)

main90521-99004iGX100,LX100..ATM199609-200106

main90521-99027iGX105,JZX10#199609-200106

34626PLATE, OVERDRIVE BRAKE CUSHION

main34626-30050iLX100199609-199908

main35671-22010iGX100..ATM199609-199808

34705GEAR SUB-ASSY, OVERDRIVE PLANETARY RING

main34705-30021iGX100,LX100..ATM199609-200106

34710GEAR ASSY, OVERDRIVE PLANETARY

main34710-22030iGX105200007-200106

sub34710-22031

sub34732-22011

sub35789-30052

sub90374-31008

main34710-22040iGX100,LX100..ATM199609-200106

main34710-30030iJZX100..ROUG199609-200106

sub34710-30031

sub34732-22011

sub35789-30052

sub90374-31008

main34710-30090iGX105,JZX10#..EXC,EXCG,ROUS,SLT199609-200106

sub34710-22031

sub34710-30091

sub34732-22011

sub35789-30052

sub90374-31008

34710ARING, HOLE SNAP(FOR OVERDRIVE PLANETARY GEAR)

main90521-99003iGX100,LX100..ATM199609-200106

34710CRACE, THRUST BEARING(FOR OVERDRIVE PLANETARY GEAR)

main34739-30031iGX100,LX100..ATM199609-200106

main34739-30041iGX100,LX100..ATM199609-200106

main35789-22010iGX100,LX100..ATM199609-200106

main35789-30050iGX105,JZX10#199609-200106

34710DBEARING, THRUST NEEDLE ROLLER(FOR OVERDRIVE PLANETARY GEAR)

main90374-23012iGX100,LX100..ATM199609-200106

main90374-24001iGX100,LX100..ATM199609-200106

main90374-25005iGX105,JZX10#199609-200106

main90374-28008iJZX100..ROUG199609-199906

main90374-28008iGX105,JZX10#..EXC,EXCG,ROU,ROUS,SLT199609-199906

main90374-31005iGX105,JZX10#199906-200106

34710EPLUG, STRAIGHT(FOR OVERDRIVE PLANETARY GEAR)

main90334-03001iGX100,LX100..ATM199609-200106

34710FPIN, STRAIGHT(FOR OVERDRIVE PLANETARY GEAR)

main90250-03024iGX100,LX100..ATM199609-200106

34713RACE, 1 WAY CLUTCH OUTER (FOR OVERDRIVE)

main34713-30020iGX100,LX100..ATM199609-200106

main34713-32010iGX105,JZX10#199609-200106

34714CLUTCH, 1 WAY(FOR OVERDRIVE)

main35791-30030iGX100,LX100..ATM199609-200106

main35791-30060iGX105,JZX10#..EXC,EXCG,ROU,ROUS,SLT199609-200106

main35791-50010iJZX100..ROUG199609-200106

34735WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.1

main34735-30020iGX100,LX100..ATM199609-200106

34736WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.2

main34736-30010iGX100,LX100..ATM199609-200106

34737WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.3

main34737-30020iGX100,LX100..ATM199609-200106

main34737-30030iGX105,JZX10#199609-200106

34738WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.4

main34738-30020iGX100,LX100..ATM199609-200106

34739RACE, THRUST BEARING(FOR OVERDRIVE)

main34739-30020iGX100,LX100..ATM199609-200106

main35789-22030iGX100,LX100..ATM199609-200106

34739ABEARING, THRUST NEEDLE ROLLER(FOR OVERDRIVE)

main90374-28014iGX100,LX100..ATM199609-200106

35617ARING, CLUTCH DRUM OIL SEAL (FOR OVERDRIVE)

main35617-16010iGX100..ATM199609-199808

main35617-30020iGX105,JZX10#199609-200106

main35617-43010iLX100199609-200106

35634CPLATE, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH)

main34616-30010iGX105,JZX10#..EXC,EXCG,ROU,ROUG,SLT199609-200106

main34616-50010iJZX100..ROUS199808-200106

main34634-30010iGX100..ATM199609-200106

main35634-30080iGX100..ATM199609-200106

35677GDISC, CLUTCH, NO.3 (FOR OVERDRIVE)

main35677-43010iGX100..ATM199609-200106

38 parts on this diagram · 3 diagrams in section
