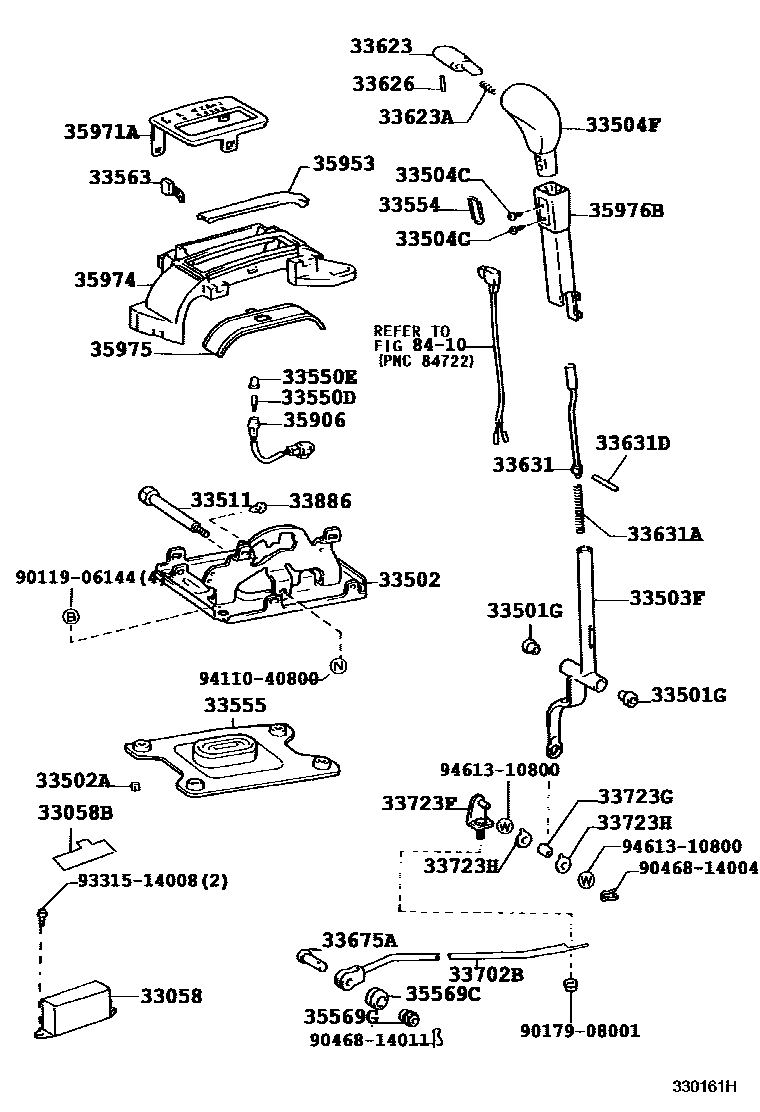

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1

33058BRACKET SUB-ASSY, SHIFT LOCK SOLENOID

main33560-22010iGX100,JZX10#,LX100..ATM..(EXC,EXCG,SC,SLT)199609-199706

sub33560-22011

main33560-22011iGX10#,JZX10#,LX100..ATM..(EXC,EXCG,SC,SLT)199706-200106

33058BSEAT, SHIFT LEVER(FOR BRACKET, SHIFT LOCK SOLENOID)

main33597-22040iGX10#,JZX10#,LX100..ATM..(EXC,EXCG,SC,SLT)199609-200106

33501GBUSH (FOR FLOOR SHIFT CONTROL SHAFT)

main90386-11019iGX10#,JZX10#,LX100..ATM..(EXC,EXCG,SC,SLT)199609-200106

33502PLATE SUB-ASSY, SHIFT LEVER

main33502-22320iGX100,JZX100,101,LX100..ATM..(EXC,EXCG,SC,SLT)199609-200106

main33502-22380iGX105,JZX105199609-200106

main33521-22250iGX100,JZX100..ROU,ROUG,ROUS199609-200106

33502ACOLLAR (FOR FLOOR SHIFT SETTING)

main90387-06065iGX10#,JZX10#,LX100..ATM..(EXC,EXCG,SC,SLT)199609-200106

33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)

main33055-22030iGX100,JZX100,101,LX100..ATM..(EXC,EXCG,SC,SLT)199609-200106

main33055-22040iGX105,JZX105199609-200106

main33055-22050iGX100,JZX100..ROU,ROUG,ROUS199609-200106

33504CSCREW (FOR SHIFT LEVER KNOB SETTING)

main90159-40238iGX10#,JZX10#,LX100..ATM..(EXC,EXCG,SC,SLT)199609-200106

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-12180-E8iGX100..MTM199609-199808

ORCHID BROWN,TRIM4#

sub33504-12180

main33504-12180-G3iGX100..MTM199609-199808

DK.SAGE,TRIM6#

sub33504-12180

main33542-22220-E0iGX10#,JZX100,105,LX100..ATM..SLT199609-200106

ORCHID BROWN,TRIM4#

sub33542-22220

main33542-22220-G0iGX10#,JZX100,105,LX100..ATM..(SC,SLT)199609-200106

DK.SAGE,TRIM6#

sub33542-22220

main33542-22230-E0iGX10#,JZX100..SLT199907-200003

sub33542-22230

main33542-22230-E0iGX105199901-199907

sub33542-22230

main33542-22230-E0iGX105200004-200012

sub33542-22230

main33542-22230-E0iGX100,JZX100,101..EXC,EXCG199609-200106

ORCHID BROWN,TRIM4#

sub33542-22230

main33542-22230-E0iGX105200012-200106

sub33542-22230

main33542-22230-G1iGX100,JZX100,101..EXC,EXCG199609-200106

DK. SAGE,TRIM6#

sub33542-22230

main33542-22230-G1iGX100,JZX100..ATM..SLT199804-199808

sub33542-22230

main33542-22230-G1iGX100..ATM..SLT199708-199709

sub33542-22230

main33542-22230-G1iGX100,JZX100..ATM..SLT199708-199808

sub33542-22230

main33542-22240-C0iGX100..ROU199808-200106

BLACK,TRIM2#

sub33542-22240

main33542-22250-B0iJZX100..ROU,ROUG199609-199808

DK. BLUE GRAY,TRIM1#

sub33542-22250

main33542-22250-C0iJZX100..ROUG,ROUS199808-199902

BLACK,TRIM2#

sub33542-22250

main33542-22250-C1iJZX100..ROUG,ROUS199902-200106

BLACK,TRIM2#

sub33542-22250

33511SHAFT, CONTROL (FOR FLOOR SHIFT)

main33501-22220iGX100,JZX100..ROU,ROUG,ROUS199609-200106

main33511-22230iGX100,JZX100,101,LX100..ATM..(EXC,EXCG,SC,SLT)199609-200106

main33511-22240iGX105,JZX105199609-200106

33550DBULB, POSITION INDICATOR LAMP

main90981-11018iGX10#,JZX10#,LX100..ATM199609-200106

33550ECAP, POSITION INDICATOR LAMP

main90339-04049iJZX100..ROU,ROUG199609-199808

main90339-04053iGX10#,JZX10#,LX100..ATM..(EXC,EXCG,SC,SLT)199609-200106

main90339-04071iGX100,JZX100..ROU,ROUG,ROUS199808-200106

33554CAP, SHIFT LEVER

main33554-22060iGX10#,JZX10#,LX100..ATM..(EXC,EXCG,SC,SLT)199609-200106

33555BOOT, SHIFT LEVER

main33555-22150iGX100,JZX100,101,LX100..ATM..(EXC,EXCG,SC,SLT)199609-200106

main33555-22160iGX105,JZX105199609-200106

main33555-22170iGX100,JZX100..ROU,ROUG,ROUS199609-200106

33563BUTTON, SHIFT LOCK RELEASE

main33563-22050iGX100,JZX100,101,LX100..ATM..(EXC,EXCG,SC,SLT)199609-200106

main33563-22060iGX105,JZX105199609-200106

main33563-22070iGX100,JZX100..ROU,ROUG,ROUS199609-200106

33623BUTTON, SHIFT LEVER KNOB

main33623-22080-E0iGX10#,JZX10#,LX100..ATM..(EXC,EXCG,SLT)199609-200106

ORCHID BROWN,TRIM4#

sub33623-22080

main33623-22080-G0iGX10#,JZX10#,LX100..ATM..(EXC,EXCG,SC,SLT)199609-200106

DK.SAGE,TRIM6#

sub33623-22080

33623ASPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON)

main90501-07009iGX10#,JZX10#,LX100..ATM..(EXC,EXCG,SC,SLT)199609-200106

33626STOPPER, SHIFT LEVER BUTTON

main90256-02004iGX10#,JZX10#,LX100..ATM..(EXC,EXCG,SC,SLT)199609-200106

main90256-02005iGX105200004-200012

33631ROD, DETENT

main33065-22010iGX100,JZX100,101,LX100..ATM..(EXC,EXCG,SC,SLT)199609-200106

main33065-22020iGX105,JZX105199609-200106

33631ASPRING, COMPRESSION (FOR DETENT ROD)

main90503-07001iGX10#,JZX10#,LX100..ATM..(EXC,EXCG,SC,SLT)199609-200106

33631DPIN, GROOVED (FOR DETENT ROD)

main90256-04011iGX10#,JZX10#,LX100..ATM..(EXC,EXCG,SC,SLT)199609-200106

33675APIN, W/HOLE (FOR TRANSMISSION CONTROL ROD)

main90240-08120iGX10#,JZX10#,LX100..ATM199609-200106

33702BROD SUB-ASSY, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT)

main33702-22050iJZX100,101,LX100..EXC,EXCG,SC,SLT199609-200106

main33702-22060iGX100..ATM..(EXC,SLT)199609-200106

main33702-22070iGX105,JZX105199609-200106

main33702-22090iJZX100..ROU,ROUG,ROUS199609-200106

main33702-22100iGX100..ROU199808-200106

33723FSWIVEL, CONNECTING ROD (FOR FLOOR SHIFT)

main33723-22020iGX100,JZX100,101,LX100..ATM199609-200106

main33723-30080iGX105,JZX105199609-200106

33723GBUSH (FOR FLOOR SHIFT CONTROL SHAFT)

main90560-08091iGX10#,JZX10#,LX100..ATM199609-200106

33723HGROMMET (FOR FLOOR SHIFT CONTROL SHAFT)

main33572-22020iGX10#,JZX10#,LX100..ATM..(EXC,EXCG,SC,SLT)199609-200106

main33572-30050iGX100,JZX100..ROU,ROUG,ROUS199609-200106

33886STOPPER, SHIFT LEVER

main33886-22020iGX10#,JZX10#,LX100..ATM..(EXC,EXCG,SC,SLT)199609-200106

35569CGROMMET (FOR TRANSMISSION CONTROL ROD)

main90480-17013iGX100,JZX100,101,LX100..ATM199609-200106

main90480-17023iGX105,JZX105199609-200106

35569GBUSH (FOR TRANSMISSION CONTROL ROD)

main90389-08005iGX105,JZX105199609-200106

main90560-08091iGX100,JZX100,101,LX100..ATM199609-200106

35906WIRE SUB-ASSY, INDICATOR LAMP

main35906-22070iGX10#,JZX10#,LX100..ATM..(EXC,EXCG,SC,SLT)199609-200106

main35906-22080iGX100,JZX100..ROU,ROUG,ROUS199609-200106

sub35906-50030

35953GUIDE, POSITION INDICATOR LIGHT

main35953-22010iGX10#,JZX10#,LX100..ATM..(EXC,EXCG,SC,SLT)199609-200106

main35953-22020iGX100,JZX100..ROU,ROUG199609-200106

main35953-22030iJZX100..ROUS199808-200106

35971AHOUSING, POSITION INDICATOR, UPPER

main33502-22390iGX100,JZX100,101,LX100..ATM..(EXC,EXCG,SC,SLT)199609-200106

main33502-22400iGX105,JZX105199609-200106

35974HOUSING, POSITION INDICATOR, LOWER

main35974-22120iGX10#,JZX10#,LX100..ATM..(EXC,EXCG,SC,SLT)199609-200106

35975COVER, SLIDE (FOR POSITION INDICATOR)

main35975-22130iGX100,JZX100,101,LX100..ATM..(EXC,EXCG,SC,SLT)199609-200106

main35975-22150iGX105,JZX105199609-200106

main35975-22160iGX100,JZX100..ROU,ROUG,ROUS199609-200106

35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)

main35976-22060iGX100,JZX100..ROU,ROUG,ROUS199609-200106

35976BCOVER, SHIFT LEVER KNOB (FOR FLOOR SHIFT)

main35976-22040iGX100,JZX100,101,LX100..ATM..(EXC,EXCG,SC,SLT)199609-200106

main35976-22050iGX105,JZX105199609-200106

8410

9011906144

main90119-06144

9017908001

main90179-08001

9046814004

main90468-14004

9046814011

main90468-14011

9331514008

main93315-14008

9411040800

main94110-40800

9461310800

main94613-10800

43 parts on this diagram · 4 diagrams in section
