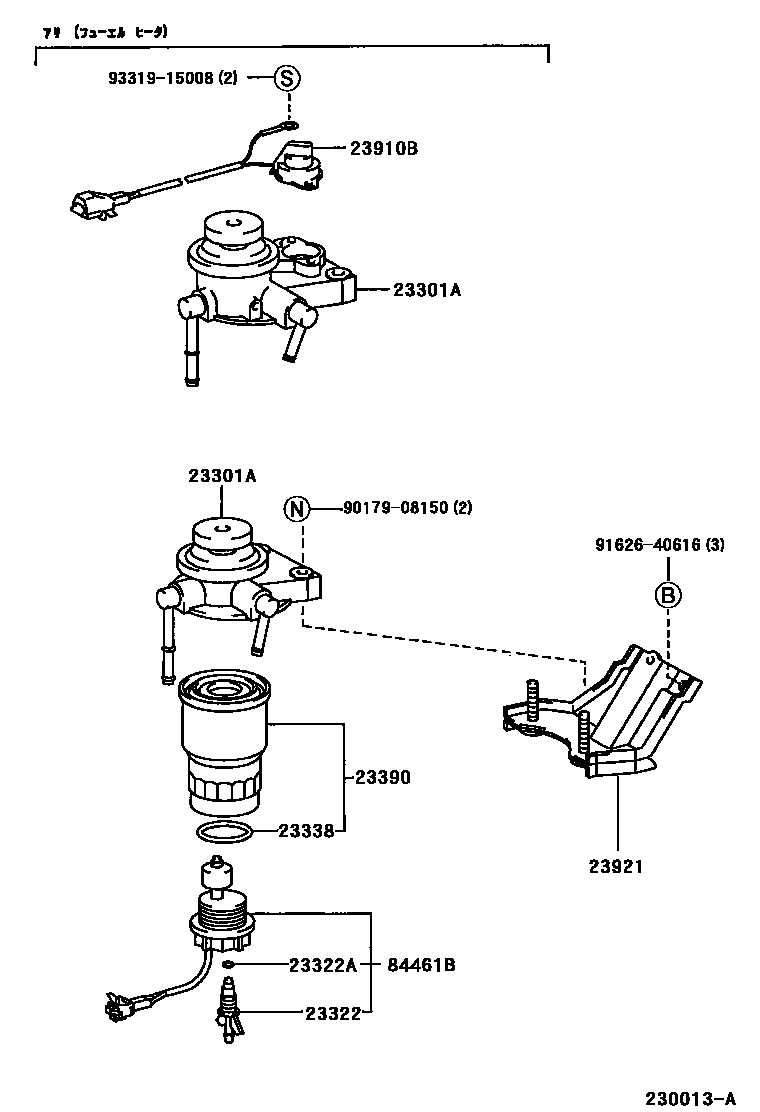

FUEL FILTER

23301ACAP ASSY, FUEL FILTER

main23301-54600i2LTE..LX100199609-199908

main23301-54610i2LTE..LX100199609-199908

23322PLUG, DRAIN(FOR FUEL FILTER)

main23322-64010i2LTE..LX100199609-199908

23322ARING, O(FOR DRAIN PLUG)

main23344-54010i2LTE..LX100199609-199908

23338GASKET(FOR WARNING SWITCH)

main23344-64010i2LTE..LX100199609-199908

23390ELEMENT ASSY, FUEL FILTER

main23390-64450i2LTE..LX100199609-199908

sub23390-33030

23910BHEATER ASSY, FUEL

main23910-54110i2LTE..LX100199609-199908

23921SUPPORT, FUEL FILTER

main23921-54420i2LTE..LX100199609-199908

84461BSWITCH, LEVEL WARNING

main84461-35060iLX100199609-199908

9017908150

main90179-08150

9162640616

main91626-40616

9331915008

main93319-15008

11 parts on this diagram · 1 diagram in section
