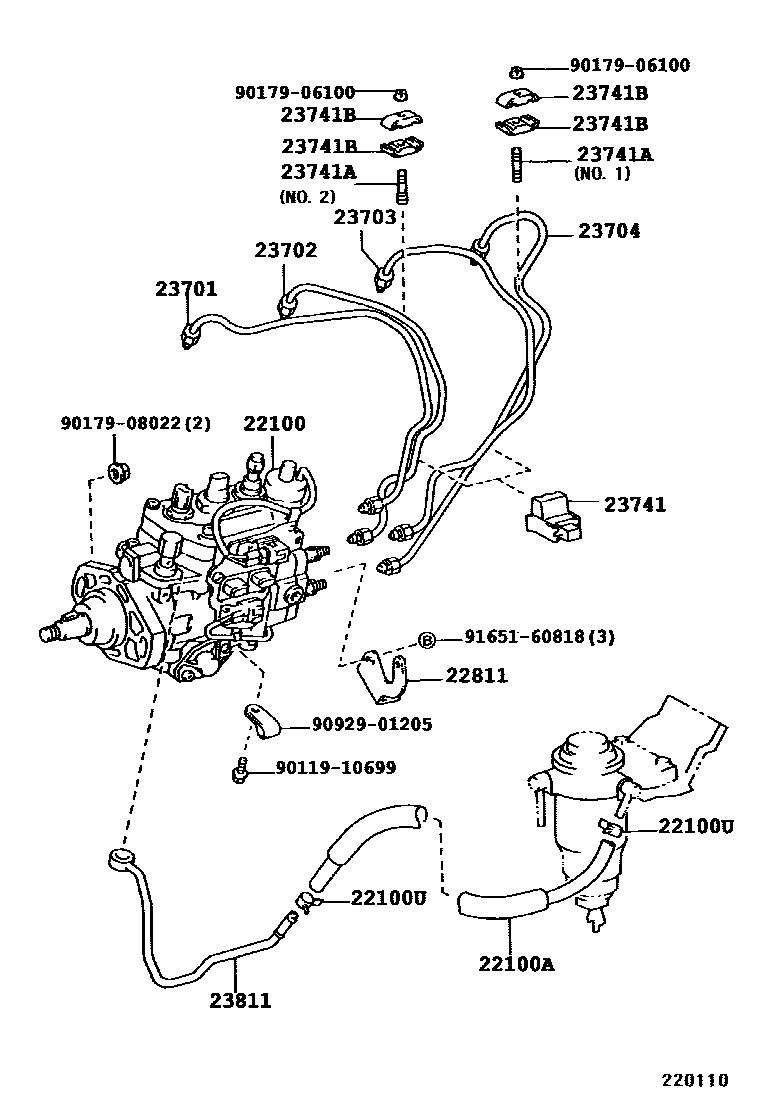

INJECTION PUMP ASSEMBLY

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-5B440i2LTE..LX100199609-199908

22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)

main90447-14068i2LTE..LX100199609-199908

22100UCLIP, HOSE FUEL(FOR INJECTION PUMP)

main90467-13039×2i2LTE..LX100199609-199908

sub96135-51300

22811STAY, INJECTION PUMP, NO.1

main22811-54050i2LTE..LX100199609-199908

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-54130i2LTE..LX100199609-199908

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-54160i2LTE..LX100199609-199908

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-54100i2LTE..LX100199609-199908

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-54100i2LTE..LX100199609-199908

23741CLAMP, INJECTION PIPE, NO.1

main23741-54030×2i2LTE..LX100199609-199908

23741ABOLT, STUD(FOR INJECTION PIPE CLAMP)

main90116-06041i2LTE..LX100199609-199908

main90116-06095i2LTE..LX100199609-199908

23741BCLAMP, INJECTION PIPE

main23741-56010×4i2LTE..LX100199609-199908

23811PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)

main23811-54151i2LTE..LX100199609-199908

9011910699

main90119-10699

9017906100

main90179-06100

9017908022

main90179-08022

9092901205

main90929-01205

9165160818

main91651-60818

17 parts on this diagram · 1 diagram in section
