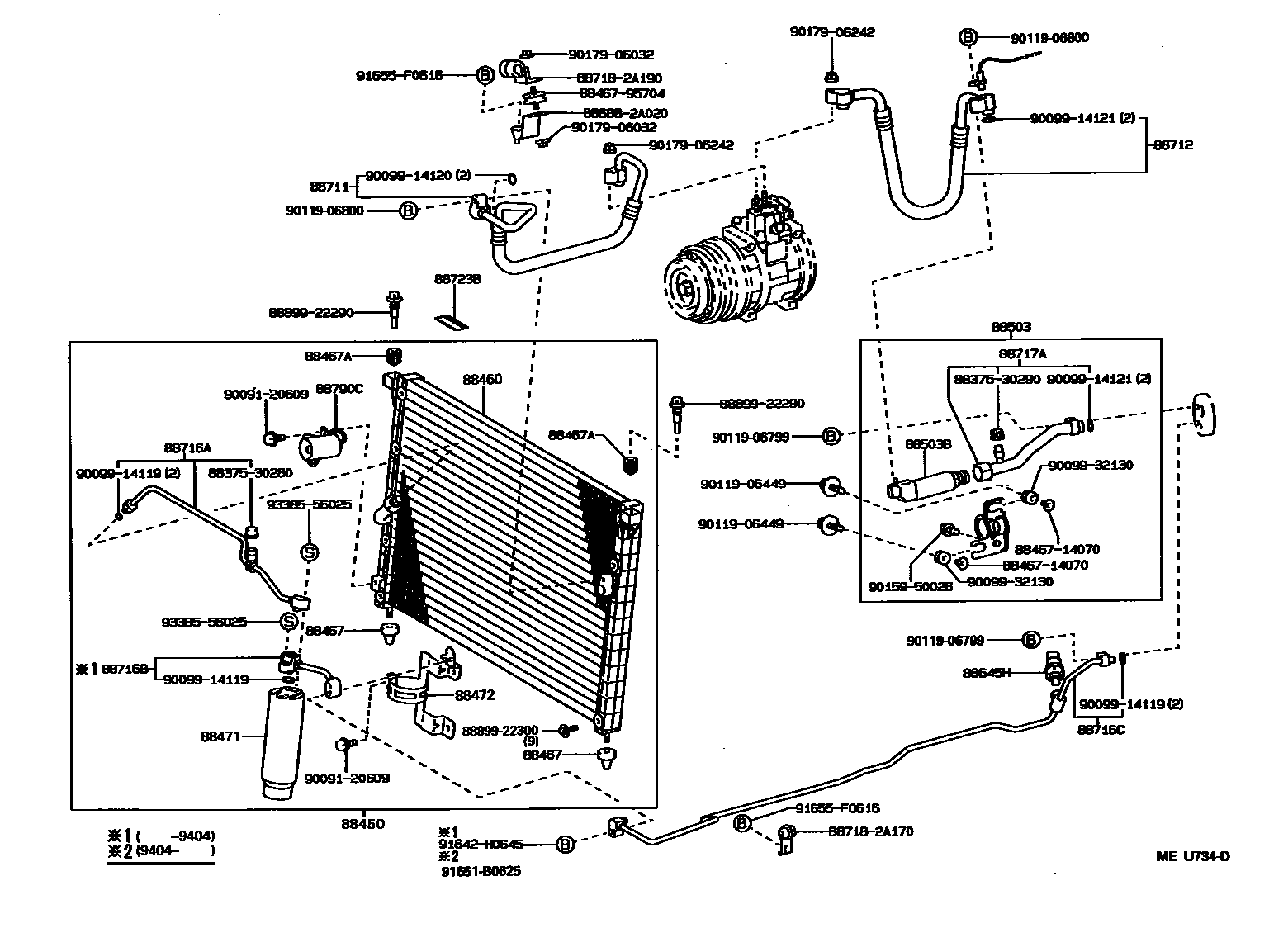

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1

88450CONDENSER ASSY, W/RECEIVER

main88450-22010iGX90,JZX9#,SX90199210-199404

main88450-22020iLX90..ATM199210-199404

main88450-22030iLX90..MTM199210-199404

main88450-22070iGX90,JZX9#,SX90199404-199609

sub88450-22100

main88450-22080iLX90..ATM199404-199409

sub88450-22110

main88450-22090iLX90..MTM199404-199409

sub88450-22120

main88450-22110iLX90..ATM199409-199609

main88450-22120iLX90..MTM199409-199609

88460CONDENSER ASSY, COOLER

main88460-22510iGX90,JZX9#,SX90199210-199609

main88460-22520iLX90199210-199609

88467CUSHION, COOLER CONDENSER, NO.1

main88467-24050iGX90,JZX9#,LX90,SX90199210-199609

88467ACUSHION, COOLER CONDENSER, NO.2

main88467-12110iGX90,JZX9#,LX90,SX90199210-199609

88471TANK, RECEIVER AIR CONDITIONER

main88471-34010iGX90,JZX9#,LX90,SX90199210-199609

88472BRACKET, RECEIVER TANK, NO.1

main88473-22080iGX90,JZX9#,LX90,SX90199210-199404

main88473-22090iGX90,JZX9#,LX90,SX90199404-199609

88503REGULATOR ASSY, PRESSURE

main88503-22250iGX90,JZX9#,LX90,SX90199210-199409

main88503-22340iGX90,JZX9#,LX90,SX90199409-199609

88503BREGULATOR SUB-ASSY, PRESSURE

main88503-22260iGX90,JZX9#,LX90,SX90199210-199609

88645HSWITCH, PRESSURE NO.1

main88645-20050iGX90,JZX9#,LX90,SX90199210-199403

main88645-22070iGX90,JZX9#,LX90,SX90199403-199609

main88645-22080iGX90199409-199609

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-22620iJZX90,91..SLT,SLTG,TOUS199210-199609

main88711-22630iJZX90..TOUV199210-199609

main88711-22640iGX90199210-199609

main88711-22650iSX90199210-199609

main88711-22660iLX90199210-199609

main88711-22750iJZX93199310-199609

sub88720-22330

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-22880iJZX90,91..SLT,SLTG,TOUS199210-199312

main88712-22890iJZX90..TOUV199210-199310

main88712-2A010iGX90199210-199609

main88712-2A020iSX90199210-199609

main88712-2A030iLX90199210-199609

main88712-2A120iJZX93199310-199609

main88712-2A130iJZX90..TOUV199310-199609

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-2A220iGX90,JZX9#,SX90199210-199404

main88716-2A240iLX90199210-199404

main88716-2A480iGX90,JZX9#,SX90199404-199609

sub88716-2A540

main88716-2A490iLX90199404-199409

sub88716-2A550

main88716-2A550iLX90199409-199609

88716BPIPE, COOLER REFRIGERANT LIQUID, B

main88716-2A230iGX90,JZX9#,LX90,SX90199210-199404

88716CPIPE, COOLER REFRIGERANT LIQUID, C

main88716-2A250iGX90,JZX90,91,LX90,SX90199210-199404

main88716-2A470iJZX93199310-199404

main88716-2A500iGX90,JZX90,91,LX90,SX90199404-199409

main88716-2A510iJZX93199404-199409

main88716-2A520iGX90,JZX90,91,LX90,SX90199409-199609

main88716-2A530iJZX93199409-199609

88717APIPE, COOLER REFRIGERANT SUCTION, A

main88717-22460iGX90,JZX9#,LX90,SX90199210-199409

main88717-22560iGX90,JZX9#,LX90,SX90199409-199609

88723BLABEL, COOLER SERVICE CAUTION

main88723-20030iGX90,JZX9#,LX90,SX90199210-199609

sub88733-30040

88790CTHERMISTOR ASSY

main88790-22090iGX90,JZX9#,LX90,SX90199210-199609

8837530280CAP, COOLER COMPRESSOR SERVICE VALVE

main88375-30280

8837530290CAP, COOLER COMPRESSOR SERVICE VALVE

main88375-30290

8846714070CUSHION, COOLER CONDENSER, NO.1

main88467-14070

8846795704CUSHION, COOLER CONDENSER, NO.1

main88467-95704

886882A020BRACKET, COOLER DIAPHRAGM

main88688-2A020

887182A170PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2A170

887182A190PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2A190

8889922290COVER, EVAPORATOR

main88899-22290

8889922300COVER, EVAPORATOR

main88899-22300

9009120609

main90091-20609

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9009932130

main90099-32130

9011906449

main90119-06449

9011906799

main90119-06799

9011906800

main90119-06800

9015950026

main90159-50026

9017906032

main90179-06032

9017906242

main90179-06242

91642H0645

main91642-H0645

91651B0625

main91651-B0625

91655F0616

main91655-F0616

9338556025

main93385-56025

41 parts on this diagram · 4 diagrams in section
